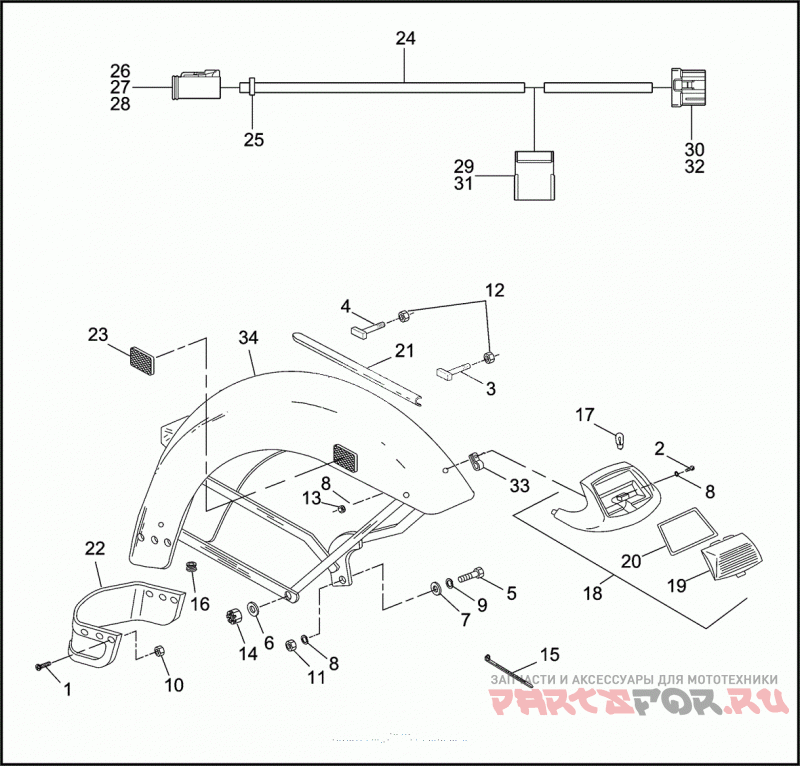

SIDECAR FENDER

Harley Davidson TLE GX97 STANDARD SIDECAR (1997)

Harley Davidson
#oem кодцена
1
2531
SCREW No. 4-40 X 5/16 Pozidriv pan hd. (Grade 2) | GX97/KX97
2
2604
SCREW No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2) | GX97/KX97
3
3560WA
BOLT No. 10-24 X 3/8 | GX97/KX97
4
3561WC
BOLT No. 10-24 X 3/8 | GX97/KX97
5
4721
BOLT 3/8-16 X 1-1/2 hex hd. (Grade 5) | GX97/KX97
6
6653A
WASHER 1/2 X 1-1/8 X 3/32 | GX97/KX97
7
6701
WASHER 3/8 X 13/16 X 1/16 | GX97/KX97
8
7118
LOCKWASHER 3/16 internal tooth | GX97/KX97
9
7130W
LOCKWASHER 3/8 internal tooth | GX97/KX97
10
7600
NUT No. 4-40 keps | GX97/KX97
11
7601
LOCKNUT 3/8-16 flange | GX97/KX97
12
7624
LOCKNUT No. 10-24 X 1/4 X 3/8 | GX97/KX97
13
7638
NUT No. 10-32 X 1/8 X 3/8 (Grade 2) | GX97/KX97
14
7823
NUT 5/8-18 X 3/8 X 15/16 slotted (Grade 2) | GX97/KX97
15
10006
CABLE STRAP (as required) | GX97/KX97
15
10065
CABLE STRAP | GX97/KX97
16
11410
GROMMET tail lamp wiring | GX97/KX97
17
53439-79
BULB fender tip lamp | GX97/KX97
18
59082-79
LAMP ASSEMBLY fender tip | GX97/KX97
19
59180-80
LENS fender tip lamp | GX97/KX97
20
59181-80
GASKET fender tip lamp lens | GX97/KX97
21
59211-74A
SIDE TRIM STRIP | GX97/KX97
22
59231-86
TRIM lower | GX97/KX97
23
59255-91
REFLECTOR (red) | GX97/KX97
24
70028-97
WIRING HARNESS w/ 25-34 | GX97/KX97
25
10065
CABLE STRAP | GX97/KX97
26
72114-94BK
PLUG 4-way socket | GX97/KX97
27
72154-94
SECONDARY LOCK 4-way socket | GX97/KX97
28
72191-94
TERMINAL socket | GX97/KX97
29
73108-96BK
HOUSING 8-way pin | GX97/KX97
30
73158-96BK
SOCKET HOUSING | GX97/KX97
31
73190-96
TERMINAL pin | GX97/KX97
32
73191-96
CONTACT SOCKET 16-20 ga. | GX97/KX97
33
71795-63A
CLAMP | GX97/KX97
34
87901-83A
FENDER sidecar (prime) | GX97/KX97
