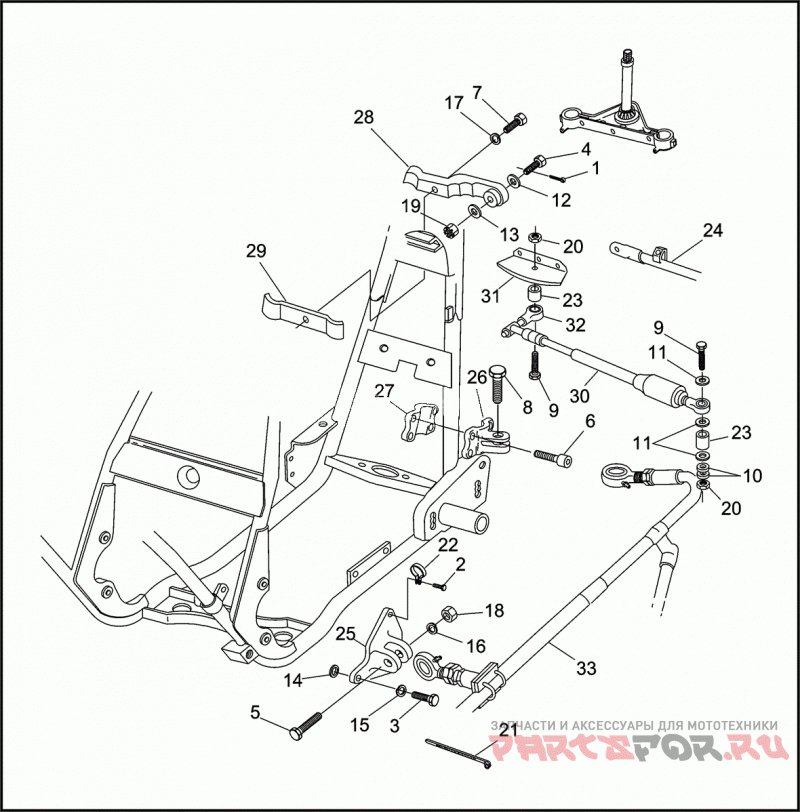

SIDECAR CONNECTION KIT

Harley Davidson TLE GX97 STANDARD SIDECAR (1997)

Harley Davidson
#oem кодцена
1
559
COTTER PIN | GX97/KX97
2
3764
BOLT 7/16-14 X 2 hex hd. (Grade 5) | GX97/KX97
3
3782
BOLT 7/16-14 X 1-1/4 hex hd. (Grade 5) | GX97/KX97
4
3949
BOLT 1/2-13 X 2-1/2 hex hd. (Grade 5) | GX97/KX97
5
4045
SCREW 3/4-10 X 2-3/4 hex hd. (Grade 8) | GX97/KX97
6
4357
SCREW 3/8-16 X 1-3/4 knurled hd. (Grade 8) | GX97/KX97
7
4052
BOLT 1/2-13 X 1-3/4 hex hd. (Grade 5) | GX97/KX97
8
4151
SCREW 3/4-10 X 2-1/4 hex hd. (Grade 8) | GX97/KX97
9
4420
SCREW 3/8-16 X 2.75 hex hd. (Grade 5) | GX97/KX97
4720W
BOLT 3/8-16 X 1-3/4 hex hd. (Grade 5) | GX97/KX97
10
6519
WASHER 13/32 X 1-1/32 X 1/8 | GX97/KX97
11
6701
WASHER 3/8 X 13/16 X 1/16 | GX97/KX97
12
6718
WASHER 1/2 X 1-1/16 X 3/32 | GX97/KX97
13
6723
WASHER 17/32 X 1-1/2 X 9/64 | GX97/KX97
14
6960
WASHER 1/2 X 3/4 X .004 | GX97/KX97
14
6961
WASHER 1/2 X 3/4 X .007 | GX97/KX97
14
6962
WASHER 1/2 X 3/4 X .015 | GX97/KX97
14
6963
WASHER 1/2 X 3/4 X .031 | GX97/KX97
15
7039
LOCKWASHER 7/16 | GX97/KX97
16
7043
LOCKWASHER 3/4 | GX97/KX97
17
7068
LOCKWASHER 1/2 | GX97/KX97
18
7598
NUT 3/4-10 | GX97/KX97
19
7843
NUT 1/2-13 slotted | GX97/KX97
20
7775
LOCKNUT 3/8-24 X 7/16 X 9/16 | GX97/KX97
21
10006
CABLE STRAP | GX97/KX97
22
10036
CLAMP | GX97/KX97
23
59938-72
SPACER mounting | GX97/KX97
24
87056-83B
BRACE sidecar frame | GX97/KX97
25
87114-93A
BRACKET ASSEMBLY rear | GX97/KX97
26
87122-83A
MOUNTING BRACKET | GX97/KX97
28
87131-83C
UPPER CONNECTION front | GX97/KX97
29
87132-92
UPPER CONNECTION rear | GX97/KX97
30
87141-83
STEERING DAMPER | GX97/KX97
31
87143-83
BRACKET steering damper | GX97/KX97
32
87144-83
ROD END BALL JOINT | GX97/KX97
33
87160-83
FRAME ASSEMBLY | GX97/KX97
34
87166-97
CONNECTION KIT sidecar (not illustrated) | GX97/KX97
