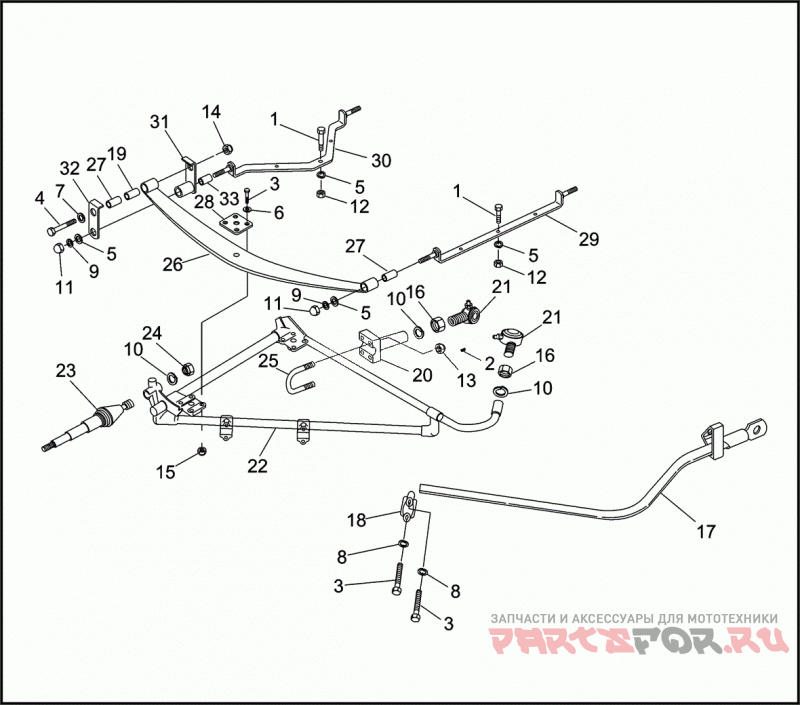

SIDECAR CHASSIS

Harley Davidson TLE GX97 STANDARD SIDECAR (1997)

Harley Davidson
#oem кодцена
1
2887WA
SCREW 5/16-18 X 1-3/4 hex hd. (Grade 5) | GX97/KX97
2
3233
SCREW 1/4-28 X 1/4 socket hd. | GX97/KX97
3
3764
BOLT 7/16-14 X 2 hex hd. (Grade 5) | GX97/KX97
4
4401W
BOLT 3/8-24 X 2-3/4 hex hd. (Grade 5) | GX97/KX97
5
6238
WASHER 11/32 X 1-1/8 X 5/64 | GX97/KX97
6
6343
WASHER 15/32 X 59/64 X 5/64 | GX97/KX97
7
6416
WASHER 3/8 X 1 X 5/64 | GX97/KX97
8
7039
LOCKWASHER 7/16 | GX97/KX97
9
7041
LOCKWASHER 5/16 | GX97/KX97
10
7043
LOCKWASHER 3/4 | GX97/KX97
11
7736
ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) | GX97/KX97
12
7748W
NUT 5/16-18 X 1/4 X 1/2 (Grade 2) | GX97/KX97
13
7775
LOCKNUT 3/8-24 X 7/16 X 9/16 | GX97/KX97
14
7780
LOCKNUT 3/8-24 X 13/32 X 11/16 flange | GX97/KX97
15
7827W
LOCKNUT 7/16-14 | GX97/KX97
16
7855W
JAMNUT 3/4-16 X 7/16 X 1-1/8 (Grade 2) | GX97/KX97
17
87056-83B
BRACE sidecar frame | GX97/KX97
18
87117-36A
LOWER CLAMP | GX97/KX97
19
87120-79
SPACER turn signal & spring shackle | GX97/KX97
20
87157-87A
REAR MOUNTING ASSEMBLY | GX97/KX97
21
87159-83
ROD END sidecar mounting | GX97/KX97
22
87160-83
FRAME ASSEMBLY sidecar | GX97/KX97
23
87435-83
AXLE | GX97/KX97
24
87444-33
AXLE NUT inside sidecar frame | GX97/KX97
25
87701-79
U-BOLT rear mounting bracket | GX97/KX97
26
88100-94A
SIDECAR SPRING single leaf | GX97/KX97
27
88174-94
SPRING BUSHING | GX97/KX97
28
88175-94
SPRING PLATE | GX97/KX97
29
88261-36
SUPPORT ROD front | GX97/KX97
30
88264-36
SUPPORT ROD rear | GX97/KX97
31
88301-79
SHACKLE PLATE w/ bushing, spring | GX97/KX97
32
88302-79
SHACKLE PLATE spring, outer | GX97/KX97
33
88314-37
BUSHING shackle plate | GX97/KX97
