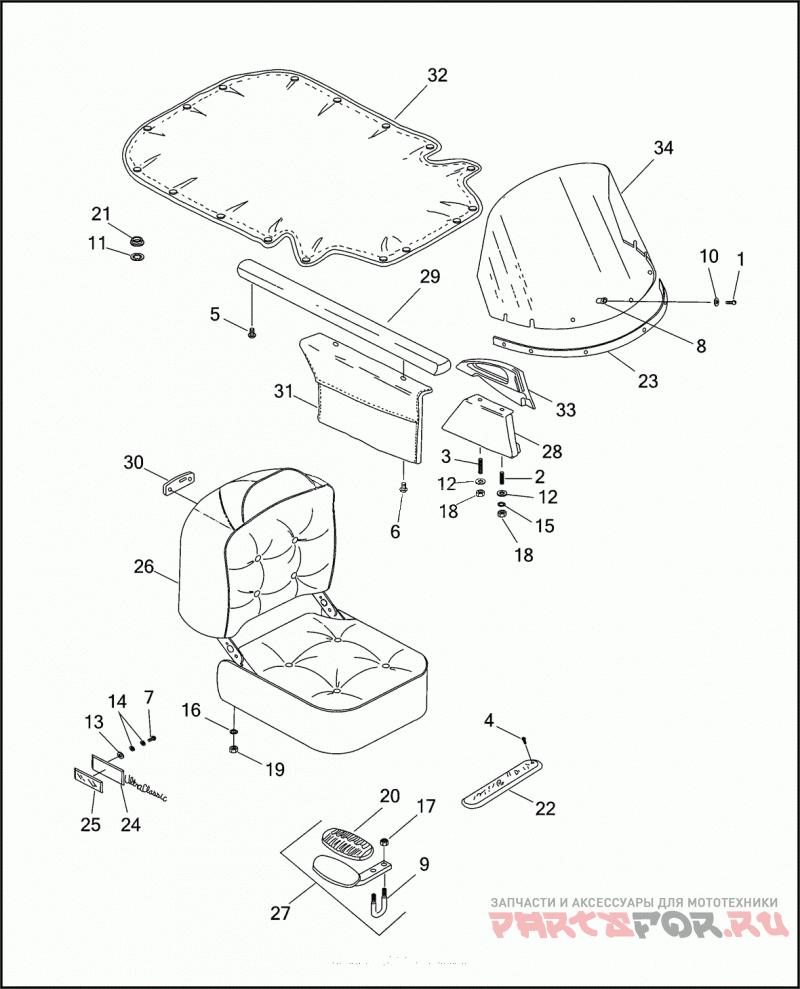

SIDECAR - ULTRA

Harley Davidson SIDECAR FOR FLHTCU/I 8SKX FLHTCU/I SIDECAR (1997)

Harley Davidson
#oem кодцена
1
933
SCREW NO. 10-32 X 15/16 POZIDRIV TRUSS HD. (GRADE 2)
2
2522
Шпилька
3
2527
Шпилька
4
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
5
2920
SCREW 1/4-20 X 3/4 PAN HD.
6
2929
SCREW 1/4-20 X 1 PAN HD.
7
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
8
5207
WELL NUT
9
5252
Болт
10
6054
WASHER 3/16 X 9/16 X 1/16 NYLON (BLACK)
11
6335
WASHER NO. 4 X 5/16 X 1/32
12
6703
WASHER 1/4 X 5/8 X 1/16
13
6716
WASHER NO. 10 X 1/2 X 3/64
14
6717
WASHER NO. 6 X 3/8 X 3/64
15
7036
WASHER 1/4 X 31/64 X 1/16
17
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
18
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
19
8093
NUT 5/16-18 (STAINLESS)
20
36964-67
PAD SIDECAR STEP
21
47076-72
SNAP BASE
22
58378-89
NAMEPLATE FOOTREST, HARLEY-DAVIDSON
23
58717-79
FOAM TAPE WINDSHIELD
24
59245-90
NAMEPLATE FENDER
25
59259-90
REFLECTOR FENDER (RED)
26
88489-95
SEAT ASSEMBLY
27
88490-88A
SIDECAR STEP KIT W/ 9, 17 & 20
28
88494-89
KNEE BOLSTER RIGHT
28
88495-89
KNEE BOLSTER LEFT
29
88496-89A
ARM REST CUSHION RIGHT
29
88497-89A
ARM REST CUSHION LEFT
30
88498-95
LOCKPLATE
31
88500-89
MAP POCKET RIGHT
31
88501-89
MAP POCKET LEFT
32
88530-98
COVER SIDECAR BODY (BLACK)
33
88545-93
HANDHOLD LEFT
33
88546-93
HANDHOLD RIGHT
34
88865-89
Ветровое стекло
