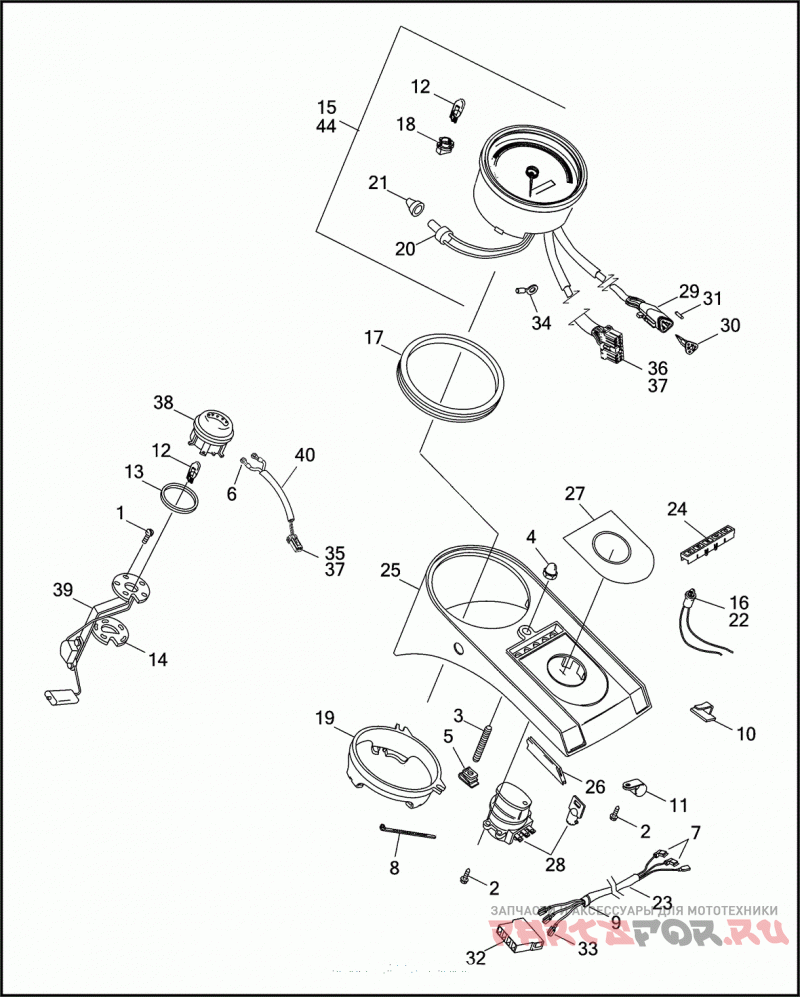

INSTRUMENTS - FXDWG

Harley Davidson FXDWG 1GEL DYNA WIDE GLIDE (1997)

Harley Davidson
#oem кодцена
1
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
2
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
3
3256
SCREW 5/16-18 X 2-1/2
4
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
5
8102
SPEEDNUT 5/16-18
6
9856
TERMINAL RING TYPE - #6 HOLE
7
9898
TERMINAL FEMALE FLAG, #14-16 GA.
8
10039
CABLE STRAP
9
10065
CABLE STRAP
10
10102
Зажим
11
38717-91
CLAMP CABLE
12
53439-79
BULB SPEEDOMETER
12
67136-85
BULB ODOMETER/FUEL GAUGE
13
61192-96A
GASKET CAP GAUGE
14
61324-88A
GASKET FUEL SENDING UNIT
15
67178-96C
SPEEDOMETER MPH
16
67184-94
SOCKET INDICATOR LAMPS
17
67190-89
SEAL SPEEDOMETER
18
67191-94
SOCKET INSTRUMENT BULBS
19
67271-94A
BACK CLAMP
20
67854-98
SWITCH RESET
21
67880-94
BOOT RESET SWITCH
22
68024-94
BULB INDICATOR LAMPS
23
70250-95A
HARNESS IGNITION SWITCH
24
71146-94
LENS INDICATOR LAMPS
25
71246-95
INSTRUMENT PANEL
26
71265-95
TRIM INSTRUMENT PANEL
27
71302-93B
NAMEPLATE IGNITION SWITCH (SATIN BLACK)
28
71450-04
LOCK SET W/ FORK LOCK, KEYS & IGNITION SWITCH
28
71313-96A
IGNITION SWITCH W/ KEYS
29
72113-94BK
PLUG 3-WAY SOCKET
30
72153-94
SECONDARY LOCK 3-WAY SOCKET
31
72191-94
TERMINAL SOCKET
32
72206-94
CONNECTOR RECEPTACLE, 4-WAY
33
72207-94
TERMINAL FEMALE, #14 GA.
34
72241-94A
TERMINAL RING TYPE - #10 HOLE, 18-20 GA.
35
73152-96BK
HOUSING 2-WAY SOCKET
36
73162-96BK
CONNECTOR 12-WAY
37
73191-96
SOCKET CONTACT 16-20 GA.
38
75049-88C
FUEL GAUGE
39
75062-90A
SENDING UNIT W/ GASKET
40
75120-96A
FUEL GAUGE HARNESS
41
7069
LOCKWASHER NO. 10
42
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
43
70585-93
CONNECTOR W/ SWITCH, RESET (NOT ILLUSTRATED)
44
67179-95C
SPEEDOMETER KPH (H.D.I.)
44
67256-95C
SPEEDOMETER DUAL MPH/KPH (GREAT BRITAIN)
