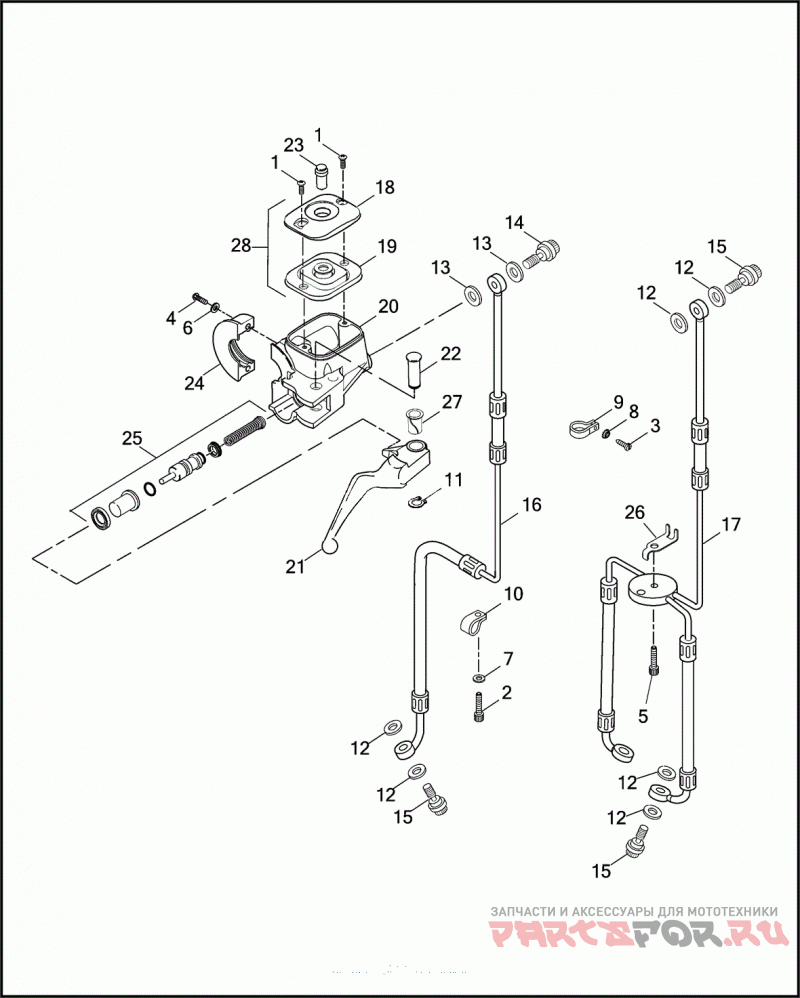

FRONT BRAKE CONTROL

Harley Davidson FXDWG 1GEL DYNA WIDE GLIDE (1997)

Harley Davidson
#oem кодцена
1
2579A
SCREW NO. 8-32 X 5/16 POZIDRIV OVAL HD.
2
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
3
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
4
4132
SCREW 1/4-20 X 1-1/8 TORX BUTTON HD. (GRADE 5) (BLACK)
6
6101
WASHER 17/64 X 27/64 X 1/16
7
6703
WASHER 1/4 X 5/8 X 1/16
8
7220
LOCKWASHER NO. 10 EXTERNAL TOOTH
9
10031
CLAMP BRAKE LINE
10
10053
CLAMP BRAKE LINE
11
11143
Стопорное кольцо
12
41731-88A
Прокладка
13
41733-88
GASKET MASTER CYLINDER, SINGLE DISC
14
41739-84A
FITTING MASTER CYLINDER, SINGLE DISC
15
41747-82A
Фитинг
16
45112-96A
BRAKE LINE
18
45004-96A
COVER RESERVOIR
19
45005-05
GASKET RESERVOIR COVER
20
45019-96E
MSTR CYL ASY,FRT/SNGL/BLACK
21
45016-96
HAND LEVER
22
45032-82
PIVOT PIN
23
45042-96
SIGHT GLASS
24
45044-96A
CLAMP HANDLEBAR CONTROL
25
45006-96E
REPAIR KIT MASTER CYLINDER (9/16 IN BORE)
27
45423-96
BUSHING LEVER PIVOT
28
45030-03D
RES'VRS KIT, CLUTCH, BLK, MST CYL/DOT5
