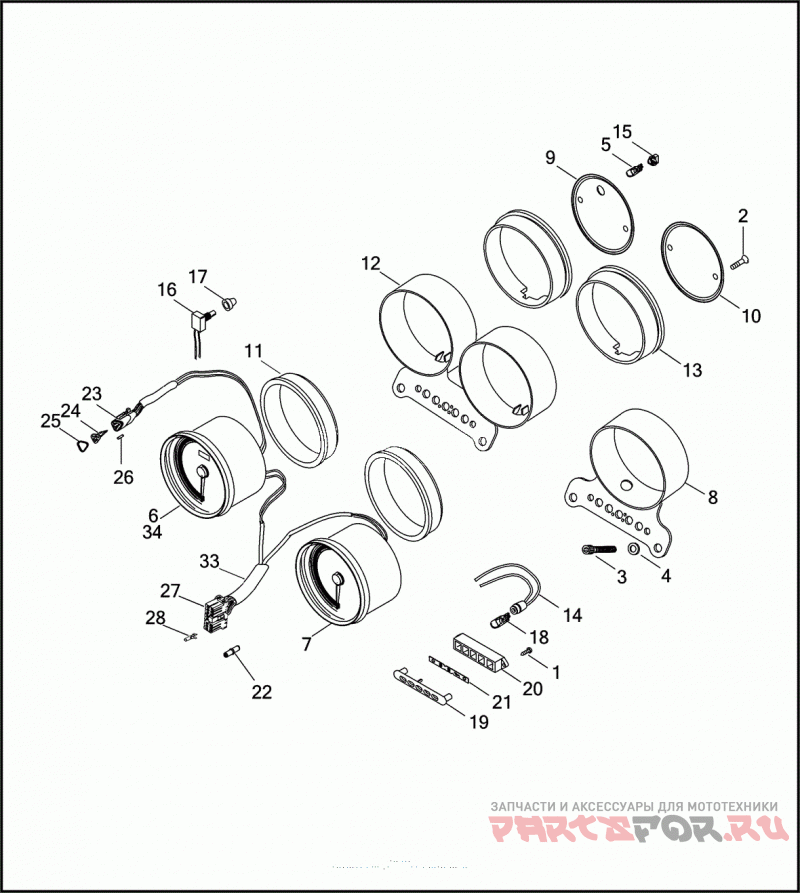

INSTRUMENTS - FXD & FXDS-CON

Harley Davidson FXDS CONV 1GGL DYNA SUPER GLIDE CONVERTIBLE (1997)

Harley Davidson
#oem кодцена
1
2325
SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING
2
2361
SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH
3
4326A
SCREW 5/16-18 X 2 SOCKET HD.
4
6330
WASHER 5/16 X 11/16 X 3/32
5
53439-79
BULB SPEEDOMETER
5
52441-95
BULB TACHOMETER
5
67136-85
BULB ODOMETER
6
67025-96C
SPEEDOMETER MPH
7
67042-95A
TACHOMETER
9
67085-95
COVER SPEEDOMETER BACK (CHROME RIM)
10
67103-95
COVER TACHOMETER BACK (CHROME RIM)
11
67104-95
CUSHION FRONT
12
67338-97
BRACKET SPEEDO & TACH
13
67121-95A
CUSHION REAR
14
67184-94
SOCKET INDICATOR LAMPS
15
67191-94
SOCKET SPEEDOMETER & TACHOMETER BULB
16
67854-98
SWITCH RESET
17
67880-94
BOOT RESET SWITCH
18
68024-94
BULB INDICATOR LAMPS
19
68513-95A
TRIM PLATE INDICATOR LAMPS
20
68516-95
HOUSING INDICATOR LAMPS
22
72044-71A
CONNECTOR SINGLE SOCKET
23
72113-94BK
PLUG 3-WAY SOCKET
24
72153-94
SOCKET LOCK SECONDARY, 3-WAY
25
72173-94
SEAL FRONT (THREE-WAY PLUG)
26
72191-94
TERMINAL SOCKET
27
73162-96BK
CONNECTOR 12-PLACE
28
73191-96
SOCKET CONTACT 16-20 GA.
29
7069
LOCKWASHER NO. 10
30
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
31
70585-93
CONNECTOR RESET SWITCH (NOT ILLUSTRATED)
32
72241-94A
TERMINAL RING TYPE - #10 SPEEDOMETER/TACHOMETER (AS REQUIRED) (NOT ILLUSTRATED)
33
68850-98
HARNESS WARNING LAMP
34
67177-95C
SPEEDOMETER KPH (H.D.I.)
34
67257-95C
SPEEDOMETER DUAL MPH/KPH (GREAT BRITAIN)
