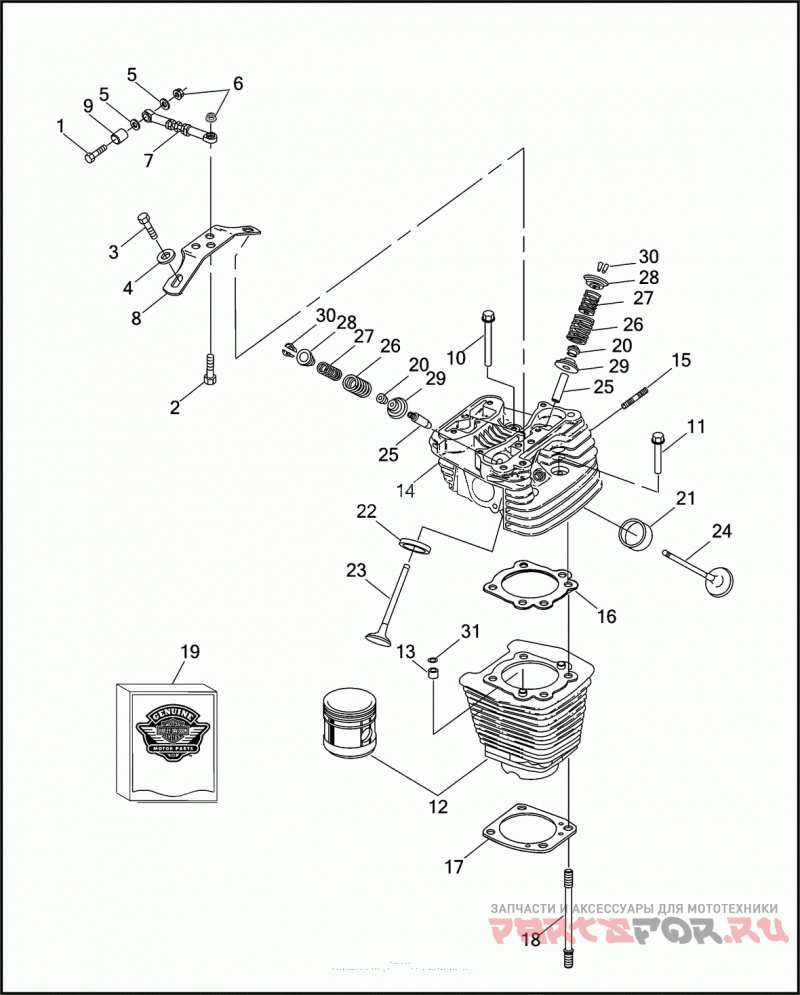

CYLINDERS, VALVES & HEADS - VВІ ™ EVOLUTION

Harley Davidson FXD 1GHL DYNA SUPER GLIDE (1997)

Harley Davidson
#oem кодцена
1
855B
SCREW 3/8-16 X 2 KNURLED HD.
2
4721
BOLT 3/8-16 X 1-1/2 HEX HD. (GRADE 5)
3
4716W
SCREW 3/8-16 X 1-1/4 HEX HD. (GRADE 5)
4
6019
WASHER 3/8 X 29/32 X 1/16
5
6701
WASHER 3/8 X 13/16 X 1/16
6
7601
LOCKNUT 3/8-16 FLANGE
7
16258-95C
STABILIZER LINK TOP
8
16242-90
BRACKET ENGINE MOUNTING
9
16241-90
Проставка
10
16478-85A
SCREW INTERNAL THREAD
11
16480-92A
SCREW INTERNAL THREAD
12
16510-83A
CYLINDER W/ PISTON
13
16573-83A
INSERT CYLINDER STUD
14
16690-92B
HEAD REAR CYLINDER, W/ GUIDES & SEATS
14
16691-92
HEAD FRONT CYLINDER, W/ GUIDES & SEATS
15
16715-83
STUD EXHAUST PORT
16
16770-84F
GASKET CYLINDER HEAD
17
16774-86D
GASKET CYLINDER BASE
18
16837-85C
STUD CYLINDER BASE
19
17040-92A
GASKET KIT TOP END
19
17041-92A
GASKET KIT ENGINE OVERHAUL
20
18001-83B
SEAL VALVE
21
18011-86
INSERT EXHAUST VALVE SEAT
22
18020-83
INSERT INTAKE VALVE SEAT
23
18074-83B
Клапан впускной
23
18076-83
INTAKE VALVE 0.03 SHORT
24
18082-83A
Клапан выпускной
24
18087-83
EXHAUST VALVE 0.030 SHORT
25
18101-83D
VALVE GUIDE INTAKE & EXHAUST
25
18130-83D
VALVE GUIDE INTAKE & EXHAUST, 0.001 O.S
25
18131-83D
VALVE GUIDE INTAKE & EXHAUST, 0.003 O.S.
25
18133-83B
VALVE GUIDE INTAKE & EXHAUST, 0.002 O.S.
28
18219-83A
COLLAR VALVE SPRING, UPPER
30
18229-83A
RETAINER VALVE COLLAR
31
26432-76A
O-RING CYLINDER STUD INSERT
