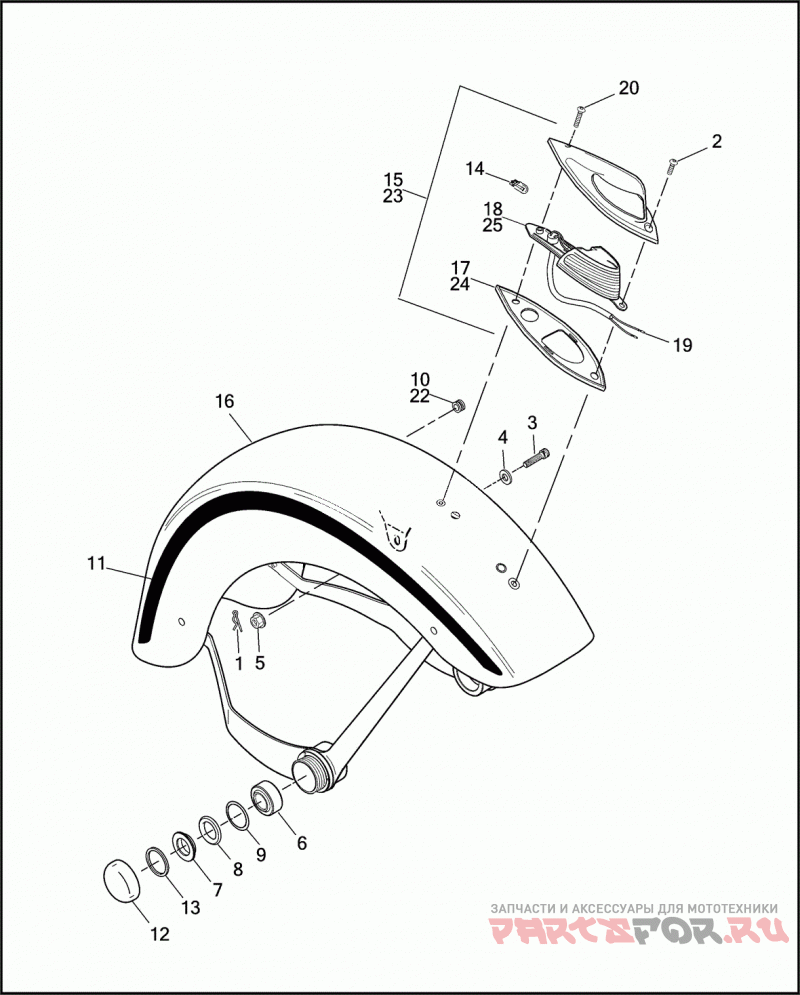

FRONT FENDER - FLSTS

Harley Davidson FLSTS 1BRL HERITAGE SPRINGER (1997)

Harley Davidson
#oem кодцена
1
509
Пружинный Штифт
2
2448
SCREW 3/16-24 X 1/2 SOCKET BUTTON HD. (GRADE 8)
3
3268
SCREW 5/16-18 X 1-1/4 KNURLED HD.
4
6109
WASHER 5/16 X 11/16 X 1/8
5
7739
LOCKNUT 5/16-18 X 11/32 X 1/2
6
9194
SPHERICAL BEARING
7
9196
SPACER RIGHT
8
9207
NYLON INSERT W/ 11261 O-RING
9
11261
Уплотнительное кольцо
10
11437
Уплотнитель резиновый
11
14505-97
DECAL FRONT FENDER, LEFT (RED)
11
14506-97
DECAL FRONT FENDER, RIGHT (RED)
11
14507-97
DECAL FRONT FENDER, LEFT (BLUE)
11
14508-97
DECAL FRONT FENDER, RIGHT (BLUE)
12
43466-97
FENDER HUB CAP
13
43467-97
SEAL FENDER HUB CAP
14
52441-95
BULB
15
59118-97
LAMP ASSEMBLY FRONT FENDER (REPLACES 59357-97)
16
59164-97A
FENDER PRIME
17
59355-97
MOUNTING PAD FENDER LAMP
19
73191-96
CONTACT SOCKET
20
2447
SCREW 3/16-24 X 3/4 SOCKET BUTTON HD. (GRADE 8)
21
9268
SPACER LEFT, AXLE NUT (NOT ILLUSTRATED)
22
755
Заглушка
23
59122-97
DECORATIVE LENS ASSEMBLY (HDI)
24
59355-97
MOUNTING PAD FENDER LAMP (HDI)
25
59358-97
LENS FRONT FENDER (CHROME) (HDI)
