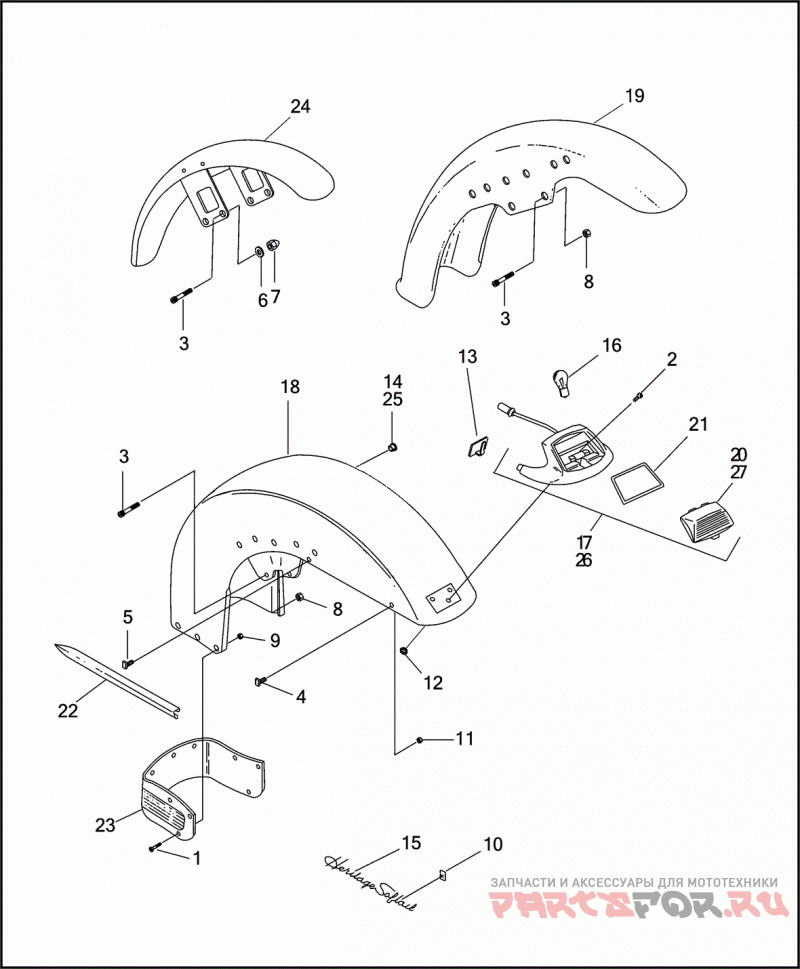

FRONT FENDER - FXSTC, FLSTC & FLSTF

Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1997)

Harley Davidson
#oem кодцена
1
2531
SCREW NO. 4-40 X 5/16 POZIDRIV PAN HD. (GRADE 2)
2
2604
SCREW NO. 10-32 X 1/2 POZIDRIV PAN HD. (GRADE 2)
3
3485A
SCREW 5/16-18 X 1-3/4 KNURLED HD. (GRADE 8)
4
3560WA
BOLT NO. 10-24 X 3/8
5
3561WC
BOLT NO. 10-24 X 3/8
8
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
9
7600
NUT NO. 4-40 KEPS
10
7613A
Гайка
11
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
12
7629
NUT NO. 10-32 X 3/8 KEPS
13
10102
CLIP SELF-ADHESIVE
14
11437
Уплотнитель резиновый
15
14142-86A
TRIM HERITAGE SOFTAIL
16
53439-79
BULB FENDER TIP LAMP
17
59082-96
LAMP ASSEMBLY
18
59129-86A
FENDER PRIME
20
59180-80
LENS FENDER LAMP (AMBER)
21
59181-80
GASKET FENDER LAMP LENS
22
59211-74A
SIDE TRIM
23
59235-86
TRIM SKIRT LOWER (BLACK)
25
755
HOLE PLUG (HDI)
26
59116-96
FENDER TIP ASSEMBLY (HDI)
27
59201-96
LENS FENDER TIP (CHROME) (HDI)
