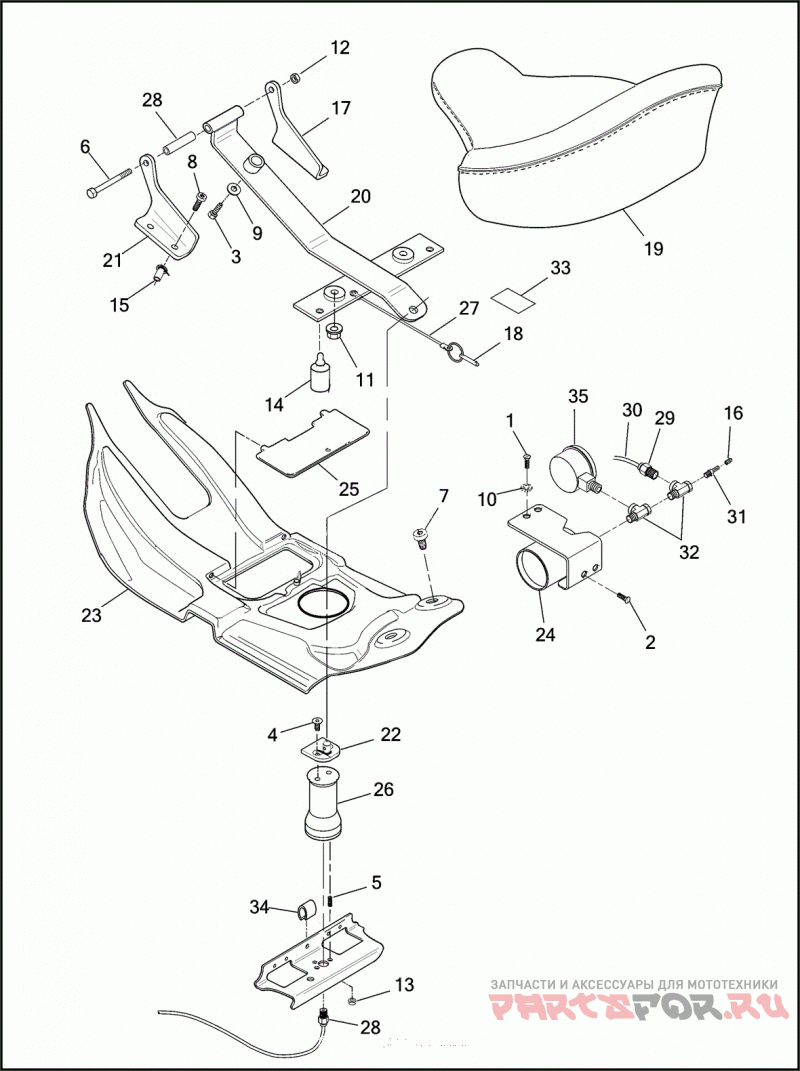

SEAT - AIR CUSHION

Harley Davidson FLHTPI 1FMR ELECTRA GLIDE STANDARD POLICE (1997)

Harley Davidson
#oem кодцена
1
2443
SCREW NO. 10-24 X 3/8 OVAL HD.
2
2592
SCREW NO. 10-24 X 1/2 POZIDRIV PAN HD. (GRADE 2)
3
2887WA
SCREW 5/16-18 X 1-3/4 HEX HD. (GRADE 5)
4
2927
SCREW 1/4-20 X 1/2 SOCKET FLAT HD.
5
3278
Винт
6
3530
SCREW 5/16-18 X 3-3/4 HEX HD. (GRADE 5)
7
3676
SCREW 5/16-18 X 5/8 TORX PAN HD.
8
3684
SCREW 5/16-18 X 1 TORX PAN HD.
9
6702
WASHER 5/16 X 11/16 X 1/16
10
7234
LOCKWASHER NO. 10 EXTERNAL TOOTH
11
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
12
7739
LOCKNUT 5/16-18 X 11/32 X 1/2
13
7792
NUT 1/4-20 X 1/4 (GRADE 2)
14
11495
BUMPER RUBBER
15
11602
RIVNUT FLATHEAD
16
41123-79
VALVE CAP
17
52220-97
BRACKET MOUNT SEAT, RIGHT
18
52241-97
PIN QUICK RELEASE
19
52242-83E
Седло
20
52249-97
BRACKET SEAT SUPPORT
21
52256-97
BRACKET MOUNT SEAT, LEFT
22
52261-97
TOP PLATE
23
52262-97
TRIM PANEL ASSEMBLY SEAT
24
52266-94A
RESERVOIR AIR, W/ BRACKET
25
52273-97
TRIM PANEL BATTERY
26
52282-94C
AIR SPRING ASSEMBLY W/ 5, 29 & 30
27
52307-97
TETHER
28
53458-97
Втулка
29
54300-94
FITTING QUICK RELEASE
30
54301-94A
HOSE AIR SPRING
31
54316-83A
AIR VALVE ASSEMBLY W/ 16
32
54326-94
FITTING TEE
33
61067-94
DECAL AIR PRESSURE
34
70961-97
TAPE PROTECTIVE
35
75059-94
GAUGE AIR PRESSURE
36
52026-97
AIR SEAT ASSEMBLY (NOT ILLUSTRATED)
