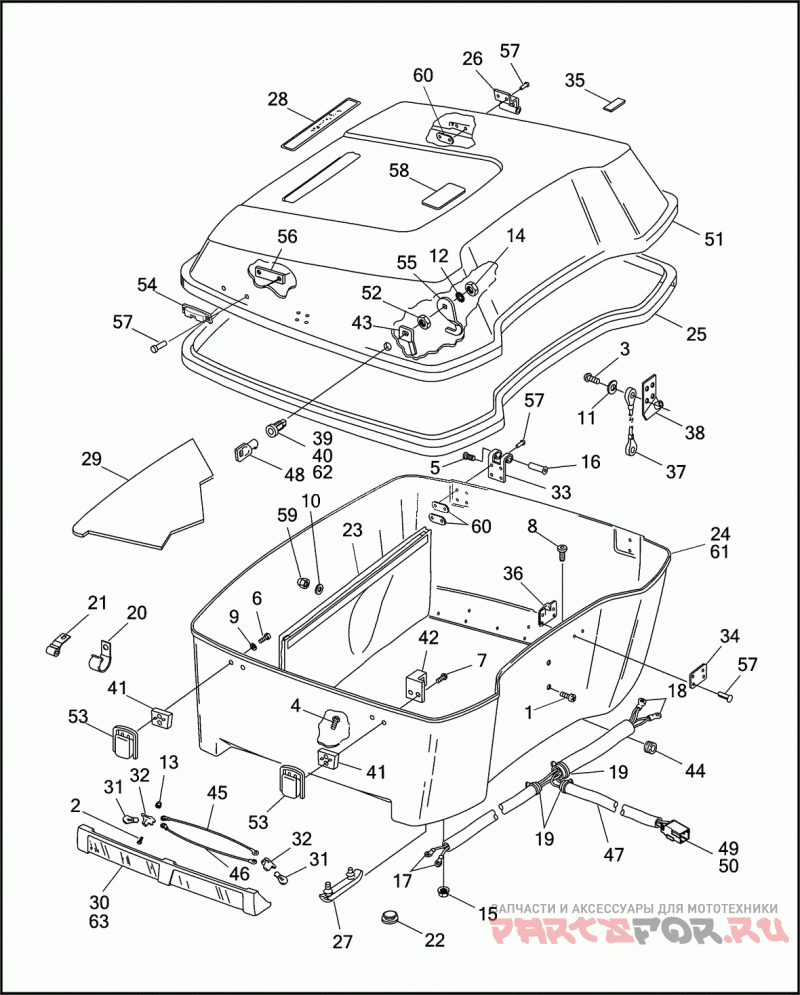

LUGGAGE BOX (KING TOUR-PAK)

Harley Davidson FLHTCU 1DPL ULTRA CLASSIC (1997)

Harley Davidson
#oem кодцена
2
2804W
SCREW NO. 6-32 X 1/2 POZIDRIV PAN HD.
3
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
4
2968
SCREW NO. 8-32 X 3/4 TORX PAN HD.
5
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
6
3597
SCREW NO. 6-32 X 9/16 TORX PAN HD., THREAD-CUTTING
7
3598
SCREW NO. 6-32 X 3/4 TORX PAN HD., THREAD-CUTTING
8
4763
SCREW 5/16-18 X 1-1/4 TORX BUTTON HD. (GRADE 5)
9
6029
WASHER 5/32 X 3/8 X 1/32
11
6970
WASHER 1/4 X 1/2 X 1/16 SPRING
12
7128
LOCKWASHER 9/32 INTERNAL TOOTH
13
7520
ACORN NUT NO. 6-32 X 1/4 X 1/4 NYLON
14
7586
JAMNUT 9/32-28 X 1/4
15
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
16
8500A
HINGE PIN KIT W/ 5
20
10091
Зажим
21
10143
CLIP ANTENNA CABLE
22
11486
Уплотнитель резиновый
22
11507
GROMMET SPLIT
24
53133-97BDK
BOTTOM TOUR-PAK (PRIME)
25
53415-06
GASKET COVER
26
53426-87
HINGE COVER, UPPER
30
53437-79A
LENS SIDE LIGHT
31
53439-79
BULB SIDE LIGHT
32
53440-79
SOCKET SIDE LIGHT
33
53447-87
HINGE LOWER
34
53478-80
BACKING PLATE BRACE
35
53486-85
Подушка изолирующая
36
53563-82
BRACKET CABLE MOUNTING
37
53564-97
CABLE BRACE COVER
38
53570-89
BRACKET CABLE MOUNTING
39
53574-93A
LOCK SET COMPLETE VEHICLE
40
53848-00
LOCK W/ NUT & LOCKWASHER
41
53615-85A
Проставка
42
53616-85
CATCH LOWER
44
57978-63
Уплотнитель резиновый
45
70643-79B
WIRE SIDE LIGHT (GREEN)
46
70644-79A
WIRE SIDE LIGHT (BLACK)
49
73103-96BK
HOUSING 3-WAY PIN
50
73190-96
PIN TERMINAL
51
79041-90
COVER TOUR-PAK (PRIME)
52
84850-92
NUT 3/4-24 X 5/32
53
90681-95A
BODY CATCH
54
90705-97
CATCH UPPER
55
90686-92
CAM HOOK
56
90688-85
BACKING PLATE
57
90965-63
заклёпка
58
90821-74C
LABEL LOAD LIMIT
60
90964-63
BACKING PLATE
61
53117-97BDK
BOTTOM TOUR-PAK (PRIME) (HDI)
62
53591-95A
LOCK SET COMPLETE VEHICLE
63
53731-97
LENS SIDE LIGHT (HDI)
