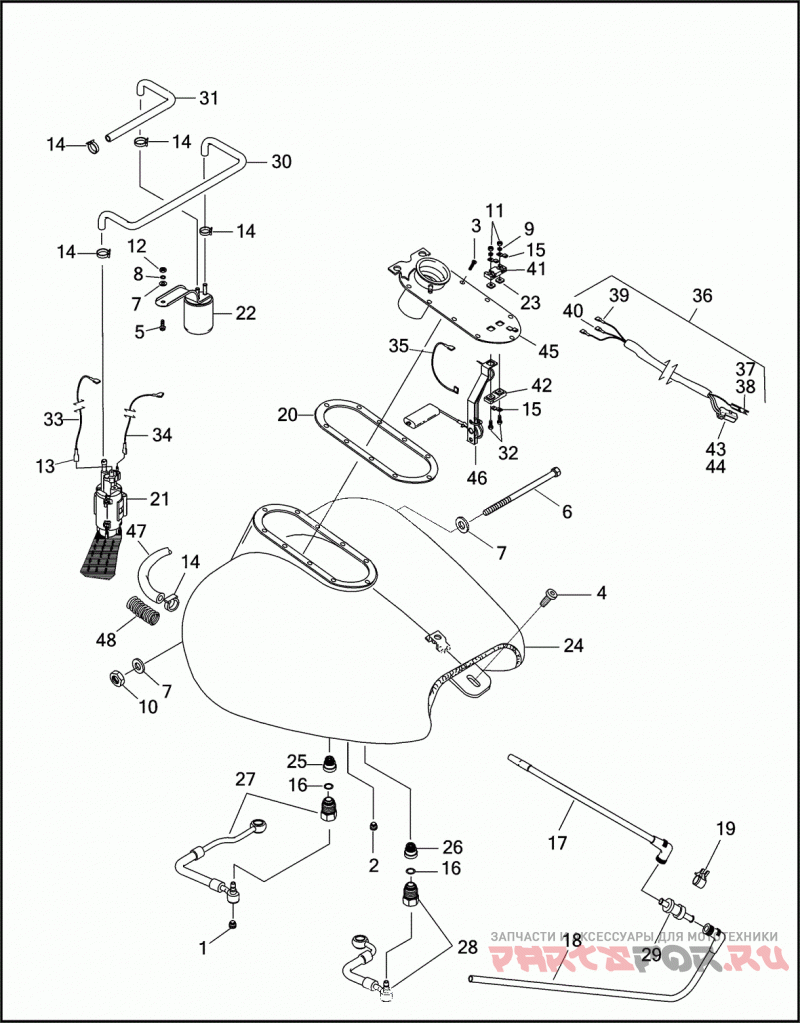

FUEL TANK & PUMP - FUEL INJECTED FLHT

Harley Davidson FLHTCI 1FFR ELECTRA GLIDE CLASSIC (1997)

Harley Davidson
#oem кодцена
1
757
Заглушка
2
758
Заглушка
3
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
6
4061
BOLT 5/16-18 X 5 HEX HD. (GRADE 5)
7
6702
WASHER 5/16 X 11/16 X 1/16
8
7041
LOCKWASHER 5/16
9
7069
LOCKWASHER NO. 10
10
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
11
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
12
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
13
9930
TERMINAL FEMALE SPADE, 3/16 INCH SLOT
14
10038A
Зажим
15
10138
TERMINAL MALE SPADE
16
11246
Уплотнительное кольцо
17
27201-97A
TUBE TANK TO VALVE
18
27291-97A
TUBE VALVE TO ATMOSPHERE
19
56076-97
CLIP VAPOR VALVE
20
61326-95
GASKET SENDING UNIT
21
61342-95A
Топливный Насос
22
61343-95
Топливный Фильтр
23
61346-95
SEAL INSULATOR
24
61356-97A
FUEL TANK (PRIMED)
25
61407-95A
CHECK VALVE OUT, W/ O-RING
26
61408-95A
CHECK VALVE IN, W/ O-RING
27
61470-95A
FUEL LINE KIT HIGH PRESSURE SUPPLY, W/ FITTING
28
61471-95A
FUEL LINE KIT LOW PRESSURE RETURN, W/ FITTING
29
62150-85
VAPOR VALVE
30
62357-95
HOSE FUEL PUMP
31
62358-95
HOSE FUEL FILTER
32
67244-95
Винт
33
70313-95
WIRE ASSEMBLY FUEL PUMP (POSITIVE)
34
70317-95
WIRE ASSEMBLY FUEL PUMP (NEGATIVE)
35
70326-95
WIRE ASSEMBLY GROUND
36
70369-97
WIRING HARNESS FUEL TANK
37
72039-71A
PIN SINGLE SOCKET
38
72043-71A
CONNECTOR SINGLE PIN
39
72290-94
TERMINAL 1/4 INCH FEMALE
40
72294-94
TERMINAL FEMALE, #16-20 GAUGE
41
72504-95
TERMINAL BLOCK TOP
42
72505-95
TERMINAL BLOCK BOTTOM
43
73152-96BK
CONNECTOR 2-WAY
44
73191-96
PIN SINGLE SOCKET
45
75069-95
CANOPY FUEL TANK
46
75071-95
SENDING UNIT FUEL GAUGE
47
63521-95A
HOSE 5/16 INCH I.D. X 5/8 INCH O.D. (RUBBER) (25 FEET)
48
62555-95
INSULATOR 5/8 INCH I.D. (NYLON) (8 FEET)
