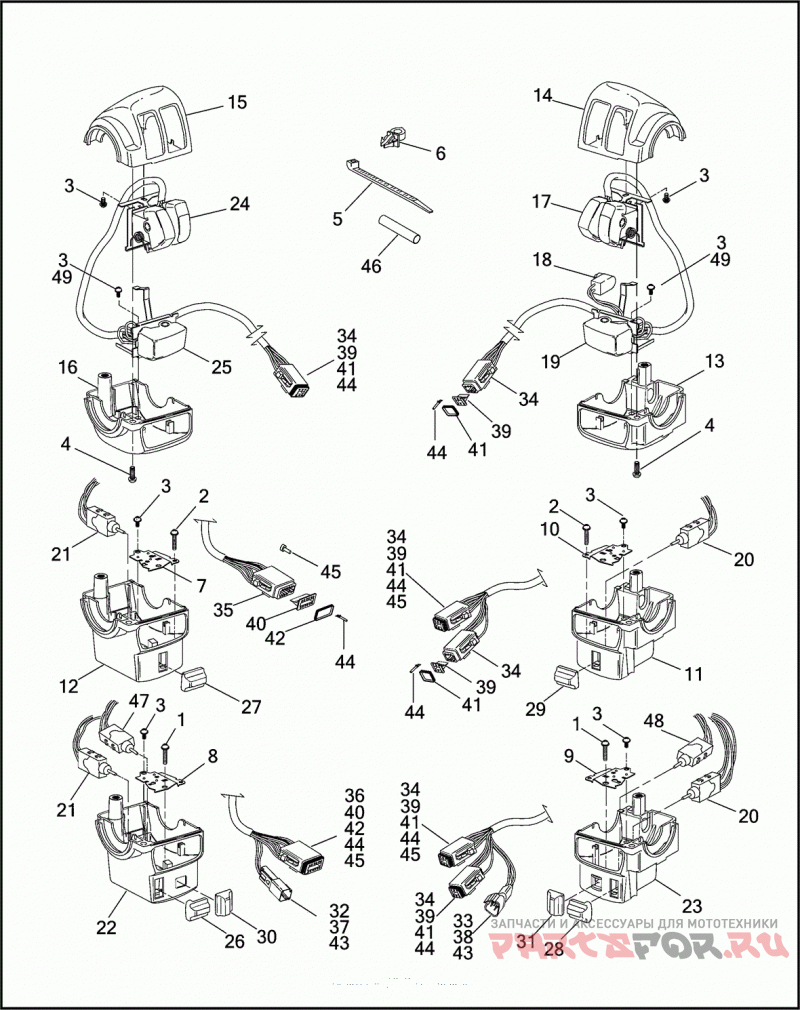

HANDLEBAR SWITCHES

Harley Davidson FLHTC 1DJL ELECTRA GLIDE CLASSIC (1997)

Harley Davidson
#oem кодцена
2
2960
SCREW NO. 6-32 X 5/8 PAN HD.
3
2558
SCREW NO. 6-32 X 3/16 PAN HD.
4
3658
SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
5
10181
CABLE STRAP (AS REQUIRED)
7
70372-96
BRACKET SWITCH, LOWER LEFT
10
70376-96
BRACKET SWITCH, LOWER RIGHT
11
71553-96
HOUSING LOWER, RIGHT
12
71558-96A
HOUSING LOWER, LEFT
14
71564-96
HOUSING UPPER, RIGHT
15
71567-96
HOUSING UPPER, LEFT
17
71684-06A
SWITCH KIT ENGINE STOP/START, W/ 10181 & 72266-94
18
71621-08
SWITCH KIT STOP LAMP, W/ 10181 & 72266-94
19
71591-96A
SWITCH KIT RIGHT TURN SIGNAL, W/ 10181 & 72266-94
20
71592-96
SWITCH 3-WAY, AM/FM/WB, W/ 10181 & 72266-94
21
71642-08
SWITCH KIT VOLUME CONTROL, W/ 10181 & 72266-94
24
71682-06A
SWITCH KIT DIMMER/HORN, W/ 10181 & 72266-94
25
71598-96A
SWITCH KIT LEFT TURN SIGNAL, W/ 10181 & 72266-94
27
71821-98
KNOB VOLUME
29
71823-98
KNOB AM/FM/WB
34
72116-94BK
PLUG 6-WAY SOCKET
35
72119-94BK
PLUG 12-WAY SOCKET
39
72156-94
SECONDARY LOCK 6-WAY SOCKET
40
72159-94
SECONDARY LOCK 12-WAY SOCKET
41
72176-94
FRONT SEAL 6-WAY PLUG
42
72179-94
FRONT SEAL 12-WAY PLUG
44
72191-94
TERMINAL SOCKET (AS REQUIRED)
45
72195-94
SEAL PIN (AS REQUIRED)
46
72266-94
HEAT SHRINK TUBE DUAL WALL, .3 X 2 INCH (AS REQUIRED)
49
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
