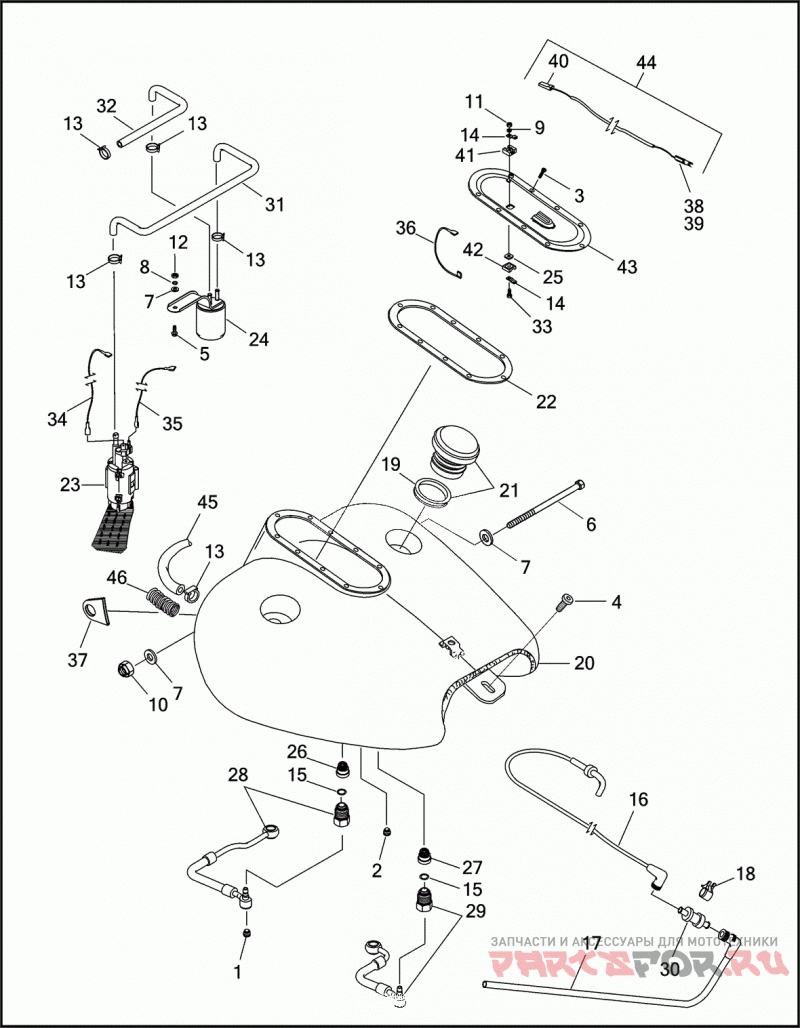

FUEL TANK & PUMP - FUEL INJECTED - FLHRI

Harley Davidson FLHRI 1FBR ROAD KING (1997)

Harley Davidson
#oem кодцена
1
757
Заглушка
2
758
Заглушка
3
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
4
3684
SCREW 5/16-18 X 1 TORX PAN HD.
5
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
6
4061
BOLT 5/16-18 X 5 HEX HD. (GRADE 5)
7
6702
WASHER 5/16 X 11/16 X 1/16
8
7041
LOCKWASHER 5/16
9
7069
LOCKWASHER NO. 10
10
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
11
7634
NUT NO. 10-32 X 1/8 X 5/16 (BRASS)
12
7748W
NUT 5/16-18 X 1/4 X 1/2 (GRADE 2)
13
10038A
Зажим
14
10138
TERMINAL MALE SPADE
15
11246
Уплотнительное кольцо
16
27191-97A
TUBE TANK TO VALVE
17
27291-97A
TUBE VALVE TO ATMOSPHERE
18
56076-97
CLIP VAPOR VALVE
19
61109-85D
GASKET FILLER CAP
20
61268-97A
FUEL TANK (PRIME)
21
61272-92C
FILLER CAP VACUUM VENT
22
61326-95
GASKET SENDING UNIT
23
61342-95A
Топливный Насос
24
61343-95
Топливный Фильтр
25
61346-95
SEAL INSULATOR
26
61407-95A
CHECK VALVE OUT, W/ O-RING
27
61408-95A
CHECK VALVE IN, W/ O-RING
28
61470-95A
FUEL LINE KIT HIGH PRESSURE SUPPLY, W/ FITTING
29
61471-95A
FUEL LINE KIT LOW PRESSURE RETURN, W/ FITTING
30
62150-85
VAPOR VALVE
31
62357-95
HOSE FUEL PUMP
32
62358-95
HOSE FUEL FILTER
33
67244-95
Винт
34
70313-95
WIRE ASSEMBLY FUEL PUMP (POSITIVE)
35
70317-95
WIRE ASSEMBLY FUEL PUMP (NEGATIVE)
36
70326-95
WIRE ASSEMBLY GROUND
37
70999-94
TRIM FUEL TANK
38
72039-71A
PIN SINGLE SOCKET
39
72043-71A
CONNECTOR SINGLE PIN
40
72290-94
TERMINAL 1/4 INCH FEMALE
41
74500-96
INSULATOR TOP
42
74501-96
INSULATOR BOTTOM
43
75076-96
TOP PLATE FUEL TANK
44
75117-96
WIRING HARNESS FUEL TANK
45
63521-95A
HOSE 5/16 INCH I.D. X 5/8 INCH O.D. (RUBBER)(25 FEET)
46
62555-95
INSULATOR 5/8 INCH I.D. (NYLON) (8 FEET)
