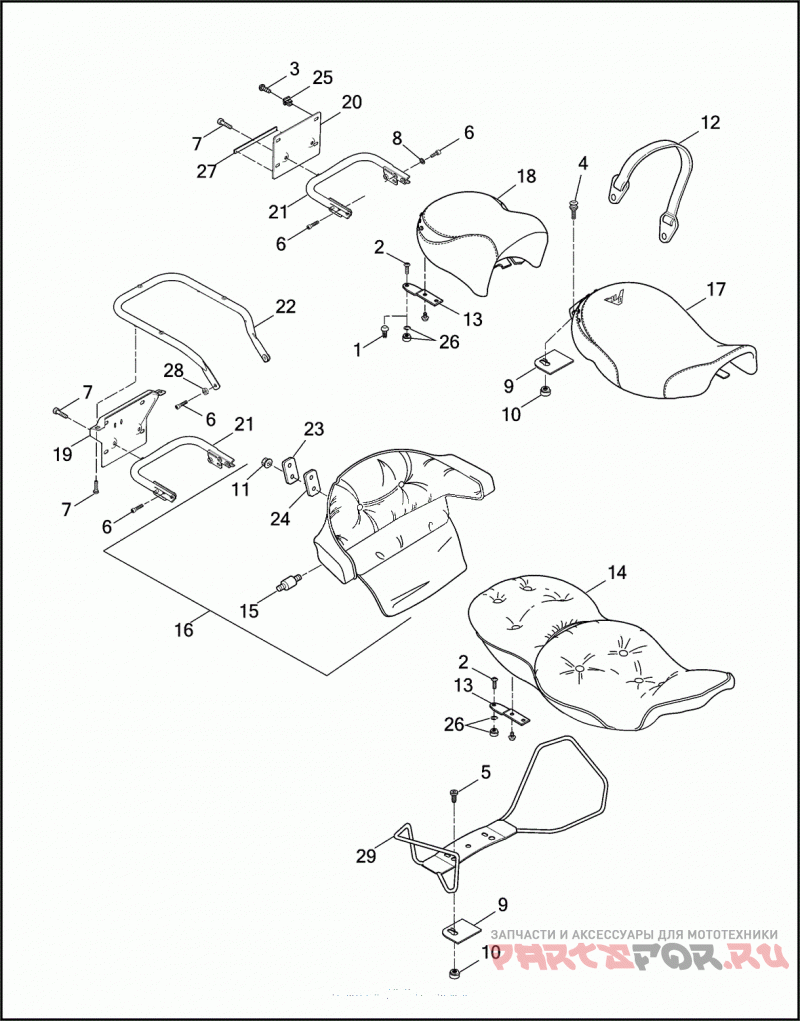

SEATS & REAR FRAME RAILS

Harley Davidson FLHR 1FDL ROAD KING (1997)

#

oem код

название

цена

1

762

CAP PLASTIC (CHROME)

2

2337W

SCREW 1/4-20 X 1/2 PAN HD., SELF-LOCKING

3

2731W

SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING

4

3662A

STUD SEAT MOUNTING

6

3684

SCREW 5/16-18 X 1 TORX PAN HD.

7

3987

BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)

8

7127

LOCKWASHER 5/16 INTERNAL TOOTH

9

7483

SPACER CLIP

10

7485

NUT SEAT RETENTION

12

51196-94

PASSENGER STRAP

13

51652-83B

BRACKET PASSENGER SEAT

17

52949-97A

SEAT RIDER

18

52281-97B

SEAT PASSENGER, W/ BRACKET & SCREWS

20

53376-97

LICENSE PLATE HOLDER

21

53422-97

SUPPORT TUBE BOTTOM

25

59292-94

NUT LICENSE PLATE (PLASTIC)

26

59768-97

SEAT NUT KIT W/ RETENTION WASHER

27

59988-72A

REFLECTOR (RED)
