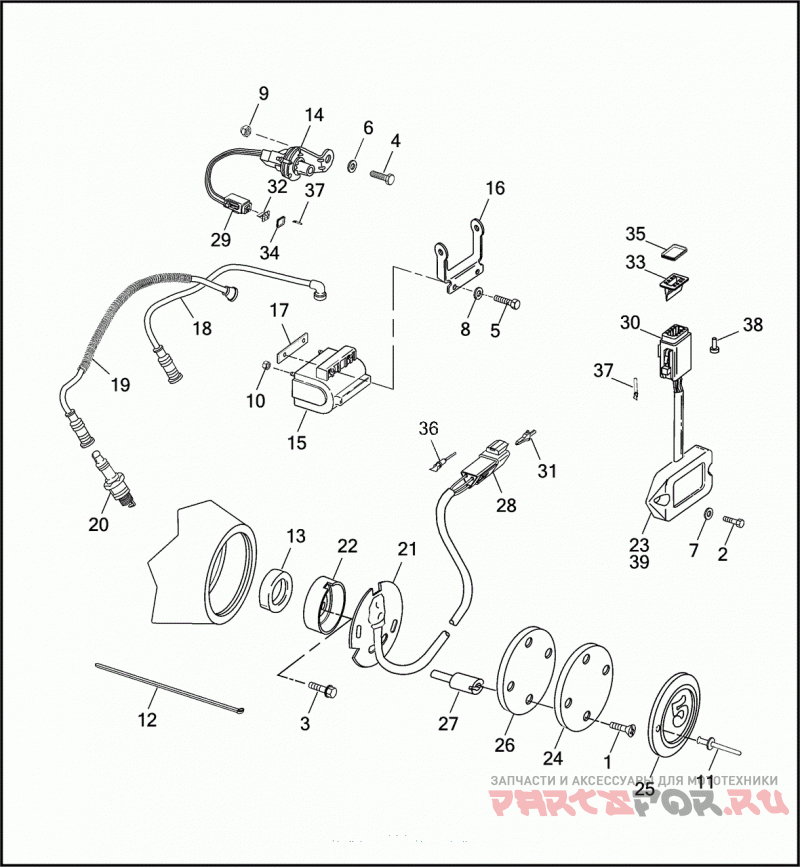

ELECTRONIC IGNITION SYSTEM

Harley Davidson XL883HUG 4CEM SPORTSTER 883 HUGGER (1996)

Harley Davidson
#oem кодцена
1
1601
SCREW NO. 8-32 X 1/2 POZIDRIV FLAT COUNTERSINK HD. (GRADE 2)
2
2339
BOLT NO. 10-24 X 3/4 HEX HD. (GRADE 2)
3
2611C
BOLT NO. 10-32 X 3/4 HEX HD., W/WASHER (GRADE 5)
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
3993
BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)
6
6702
WASHER 5/16 X 11/16 X 1/16
7
6716
WASHER NO. 10 X 1/2 X 3/64
8
7036
WASHER 1/4 X 31/64 X 1/16
9
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
10
7629
NUT NO. 10-32 X 3/8 KEPS
11
8699
Поп-Заклепки
12
10006
CABLE STRAP
12
10039
CABLE STRAP
13
11124
Уплотнение
14
26558-94A
VACUUM SWITCH W/ ELECTRICAL CONNECTOR ASSEMBLY
15
31614-83A
Катушка зажигания
16
31723-95
BRACKET IGNITION COIL MOUNTING
17
31727-85
PLATE IGNITION COIL MOUNTING
18
31986-86A
CABLE SPARK PLUG, 6 1/2 INCH
19
31996-86B
CABLE SPARK PLUG, 20 INCH
20
32362-04A
SPARK PLUG
21
32400-94A
SENSOR ASSEMBLY W/ 36
22
32402-83
TRIGGER ROTOR
23
32466-95A
IGNITION MODULE W/ 30, 33, 35, 37 & 38
24
32504-80A
INNER COVER
25
32506-90
COVER TIMER
26
32591-80
GASKET IGNITION
27
32606-82
STUD TIMER PLATE
28
72103-94BK
RECEPTACLE 3 PIN (BLACK)
29
72112-94BK
PLUG 2-WAY (BLACK)
30
72118-94BK
PLUG 8-WAY (BLACK)
31
72143-94
SECONDARY LOCK 3 PIN RECEPTACLE (BLACK)
32
72152-94
SECONDARY LOCK 2-WAY PLUG
33
72158-94
LOCK PLUG (8-WAY)
34
72172-94
SEAL FRONT (2-WAY PLUG)
35
72178-94
SEAL FRONT (8-WAY PLUG)
36
72190-94
TERMINAL PIN
37
72191-94
TERMINAL SOCKET
38
72195-94
PIN SEAL
39
32465-95B
IGNITION MODULE (SWISS) W/ 30, 33, 35, 37 & 38
39
32466-95A
IGNITION MODULE W/ 30, 33, 35, 37 & 38
