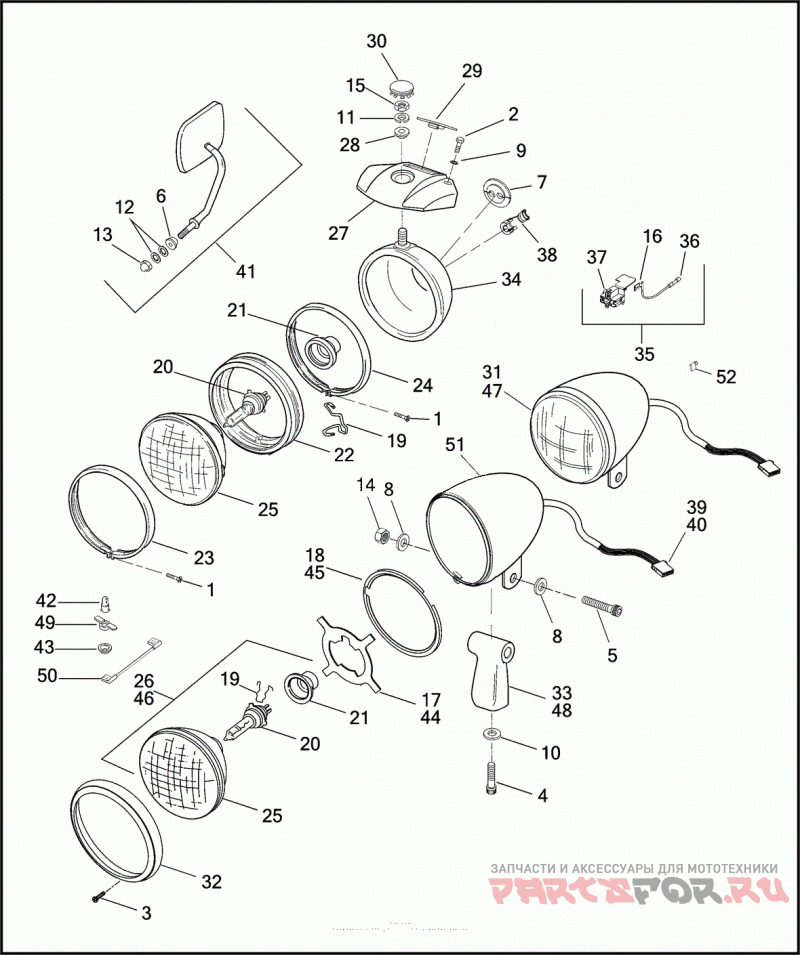

HEADLAMP & MIRROR

Harley Davidson XL1200C 1CGP SPORTSTER 1200 CUSTOM (1996)

Harley Davidson
#oem кодцена
3
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
4
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
5
4420
SCREW 3/8-16 X 2.75 HEX HD. (GRADE 5)
6
5774
Проставка
8
6701
WASHER 3/8 X 13/16 X 1/16
10
7045
LOCKWASHER 3/8 HIGH COLLAR
12
7127
LOCKWASHER 5/16 INTERNAL TOOTH
13
7736
ACORN NUT 5/16-24 X 19/32 X 1/2 (GRADE 2) (CHROME)
14
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
16
9847
WIRE TERMINAL FEMALE SPADE-R.H.
16
9848
WIRE TERMINAL FEMALE SPADE-L.H.
17
67601-94A
GASKET HEADLAMP
18
67603-94A
ADAPTER RING
19
67685-92
CLIP BULB
20
68329-03
BULB HALOGEN
21
67705-92
BOOT HEADLAMP
25
67757-92
LENS HEADLAMP, W/ 19
26
67698-81D
LENS ASSEMBLY W/ 19, 20, 21 & 25
31
67881-96B
HEADLIGHT ASSEMBLY
32
67894-93A
TRIM RING (CHROME)
33
67919-96
HEADLAMP MOUNTING
35
68705-93A
CONNECTOR ASSEMBLY HEADLAMP, W/ WIRES, TERMINALS & SPLICE CONN.
36
70583-93
CONNECTOR BUTT SPLICE, 16-22 GAUGE
37
72056-92
CONNECTOR SPADE TERMINAL (3-WAY)
39
73154-96BK
SOCKET HOUSING 4-POSITION
40
73191-96
CONTACT SOCKET (16-20 GAUGE)
41
91875-88A
MIRROR KIT RIGHT, SHORT
41
91892-88A
MIRROR KIT LEFT, SHORT
42
53438-92
BULB POSITION LAMP (HDI)
44
67602-94
GASKET HEADLIGHT (HDI)
45
67604-94
RETAINING RING HEADLIGHT (HDI)
47
67882-96A
HEADLIGHT ASSEMBLY LEFT DIP (HDI) (ORDER 67771-08 & HEADLAMP ASSEMBLY COMPONENTS)
47
67901-96A
HEADLIGHT ASSEMBLY RIGHT DIP (HDI) (ORDER 67771-08 & HEADLAMP ASSEMBLY COMPONENTS)
48
67850-96
HEADLAMP MOUNTING (HDI)
49
68650-92
SOCKET BULB, (HDI)
50
70048-92
WIRE POSITION LAMP, (HDI)
51
67771-08
SHELL HEADLAMP (HDI, AUSTRALIA, ENGLAND, JAPAN)
52
9898
TERMINAL FEMALE FLAG, 14-16 WIRE (HDI)
