SIDECAR - TLE-ULTRA

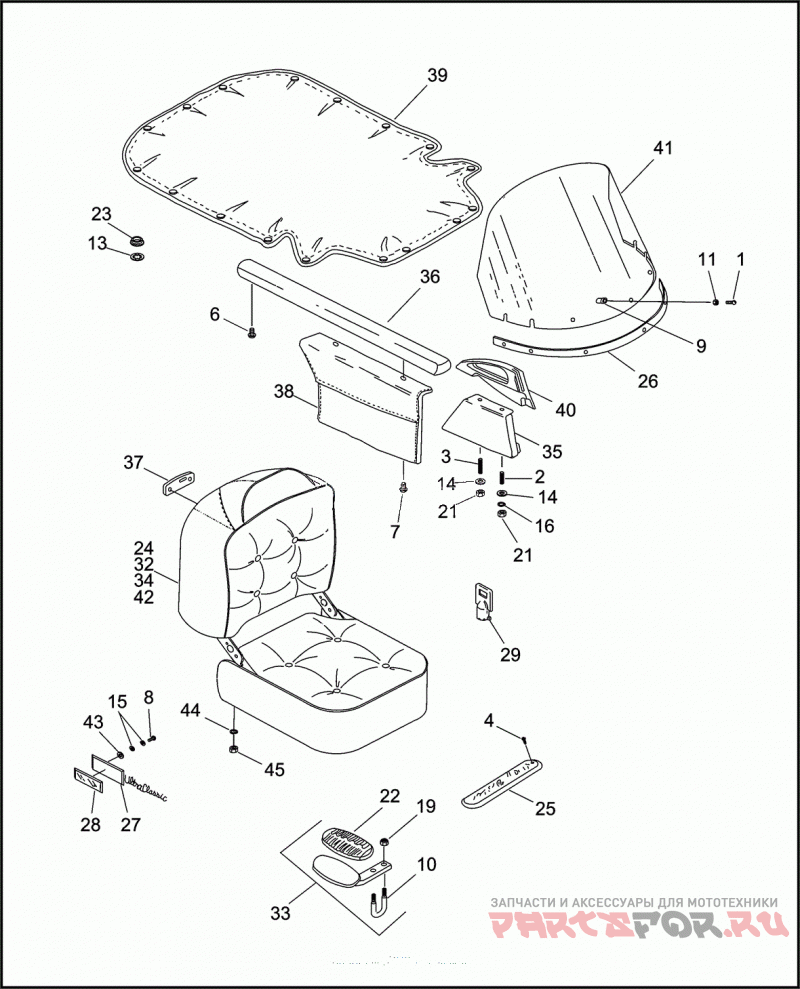

Harley Davidson TLEU KX96 ULTRA SIDECAR (1996)

Harley Davidson
#oem кодцена
1
933
SCREW No. 10-32 X 15/16 Pozidriv truss hd. (Grade 2) | KX95/KX96
2
2522
STUD | KX95/KX96
3
2527
STUD | KX95/KX96
4
2731W
SCREW No. 10 X 3/8 Phillips truss hd., self-tapping | KX95/KX96
5
2818
BOLT 5/16-18 X 1-1/2 hex hd. (Grade 5) | KX95/KX96
6
2920
SCREW 1/4-20 X 3/4 pan hd. | KX95/KX96
7
2929
SCREW 1/4-20 X 1 pan hd. | KX95/KX96
8
3595
SCREW No. 6-32 X 1/4 TORX hd., w/lockpatch | KX95/KX96
9
5207
WELL NUT | KX95/KX96
10
5252
U-BOLT | KX95/KX96
11
6054
WASHER 3/16 X 9/16 X 1/16 nylon (black) | KX95/KX96
12
6238
WASHER 11/32 X 1-1/8 X 5/64 | KX95/KX96
13
6335
WASHER No. 4 X 5/16 X 1/32 | KX95/KX96
14
6703
WASHER 1/4 X 5/8 X 1/16 | KX95/KX96
15
6717
WASHER No. 6 X 3/8 X 3/64 | KX95/KX96
16
7036
WASHER 1/4 X 31/64 X 1/16 | KX95/KX96
17
7041
LOCKWASHER 5/16 | KX95/KX96
19
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 flange | KX95/KX96
21
7688
NUT 1/4-20 X 7/32 X 7/16 (Grade 2) | KX95/KX96
22
36964-67
PAD sidecar step | KX95/KX96
23
47076-72
SNAP BASE | KX95/KX96
24
53593-92
LOCK ASSEMBLY seat w/ 18, 20, 24, 29 & 30 | KX95/KX96
25
58378-89
NAMEPLATE footrest in.Harley-Davidsonin. | KX95/KX96
26
58717-79
FOAM TAPE windshield | KX95/KX96
27
59245-90
NAMEPLATE fender | KX95/KX96
28
59259-90
REFLECTOR fender (red) | KX95/KX96
32
88489-95
SEAT ASSEMBLY w/ 88498-95 | KX95 (early)/KX96
33
88490-88A
SIDECAR STEP KIT w/ 10, 19 & 22 | KX95/KX96
35
88494-89
KNEE BOLSTER right | KX95/KX96
35
88495-89
KNEE BOLSTER left | KX95/KX96
36
88496-89A
ARM REST CUSHION right | KX95/KX96
36
88497-89A
ARM REST CUSHION left | KX95/KX96
37
88498-95
LOCKPLATE | KX96
38
88500-89
MAP POCKET right | KX95/KX96
38
88501-89
MAP POCKET left | KX95/KX96
39
88530-98
COVER sidecar body (black) | KX95/KX96
40
88545-93
HANDHOLD left | KX95/KX96
40
88546-93
HANDHOLD right | KX95/KX96
41
88865-89
WINDSHIELD | KX95/KX96
43
6716
WASHER No. 10 X 1/2 X 3/64 | KX95/KX96
45
8093
NUT 5/16-18 (stainless) | KX95/KX96
