SIDECAR - TLE-ULTRA

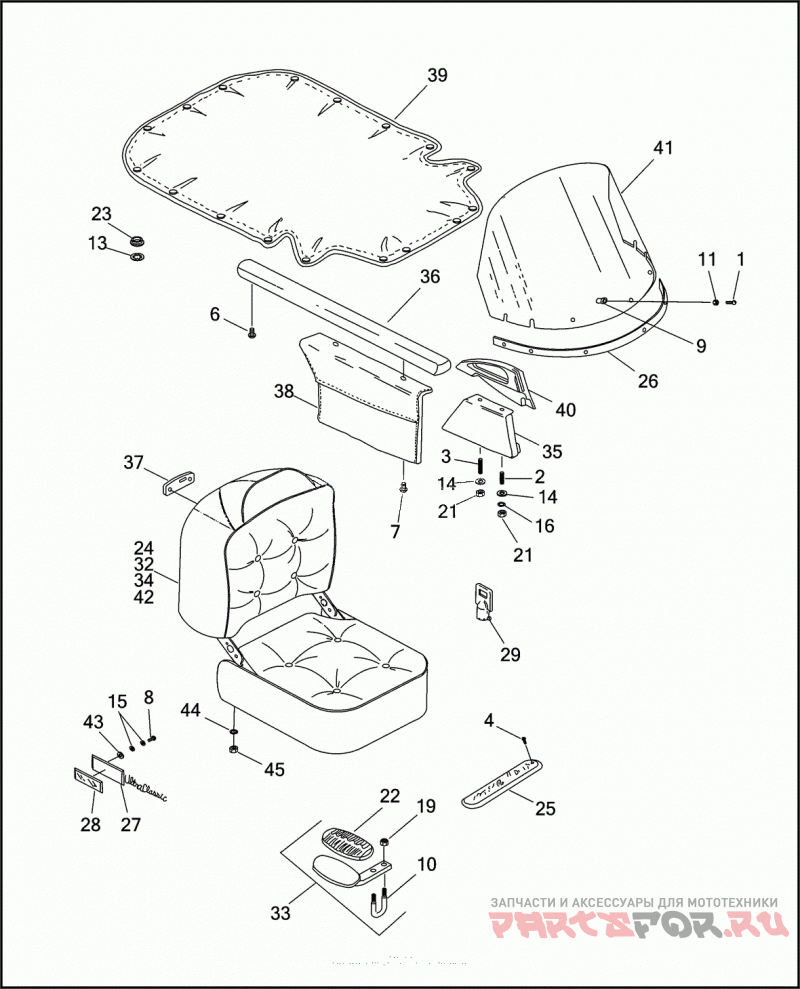

Harley Davidson SIDECAR FOR ULTRA 8SKX ULTRA SIDECAR (1996)

Harley Davidson
#oem кодцена
1
933
SCREW NO. 10-32 X 15/16 POZIDRIV TRUSS HD. (GRADE 2)
2
2522
Шпилька
3
2527
Шпилька
4
2731W
SCREW NO. 10 X 3/8 PHILLIPS TRUSS HD., SELF-TAPPING
5
2818
BOLT 5/16-18 X 1-1/2 HEX HD. (GRADE 5)
6
2920
SCREW 1/4-20 X 3/4 PAN HD.
7
2929
SCREW 1/4-20 X 1 PAN HD.
8
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
9
5207
WELL NUT
10
5252
Болт
11
6054
WASHER 3/16 X 9/16 X 1/16 NYLON (BLACK)
12
6238
WASHER 11/32 X 1-1/8 X 5/64
13
6335
WASHER NO. 4 X 5/16 X 1/32
14
6703
WASHER 1/4 X 5/8 X 1/16
15
6717
WASHER NO. 6 X 3/8 X 3/64
16
7036
WASHER 1/4 X 31/64 X 1/16
17
7041
LOCKWASHER 5/16
18
7128
LOCKWASHER 9/32 INTERNAL TOOTH
19
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
20
7586
JAMNUT 9/32-28 X 1/4
21
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
22
36964-67
PAD SIDECAR STEP
23
47076-72
SNAP BASE
24
53593-92
LOCK ASSEMBLY SEAT W/ 18, 20, 24, 29 & 30
25
58378-89
NAMEPLATE FOOTREST in.HARLEY-DAVIDSONin.
26
58717-79
FOAM TAPE WINDSHIELD
27
59245-90
NAMEPLATE FENDER
28
59259-90
REFLECTOR FENDER (RED)
30
84850-92
NUT 3/4-24 X 5/32
31
90686-92
CAM HOOK (NOT ILLUSTRATED)
32
88489-95
SEAT ASSEMBLY W/ 88498-95
33
88490-88A
SIDECAR STEP KIT W/ 10, 19 & 22
35
88494-89
KNEE BOLSTER RIGHT
35
88495-89
KNEE BOLSTER LEFT
36
88496-89A
ARM REST CUSHION RIGHT
36
88497-89A
ARM REST CUSHION LEFT
37
88498-95
LOCKPLATE
38
88500-89
MAP POCKET RIGHT
38
88501-89
MAP POCKET LEFT
39
88530-98
COVER SIDECAR BODY (BLACK)
40
88545-93
HANDHOLD LEFT
40
88546-93
HANDHOLD RIGHT
41
88865-89
Ветровое стекло
42
53848-00
Замок
43
6716
WASHER NO. 10 X 1/2 X 3/64
45
8093
NUT 5/16-18 (STAINLESS)
