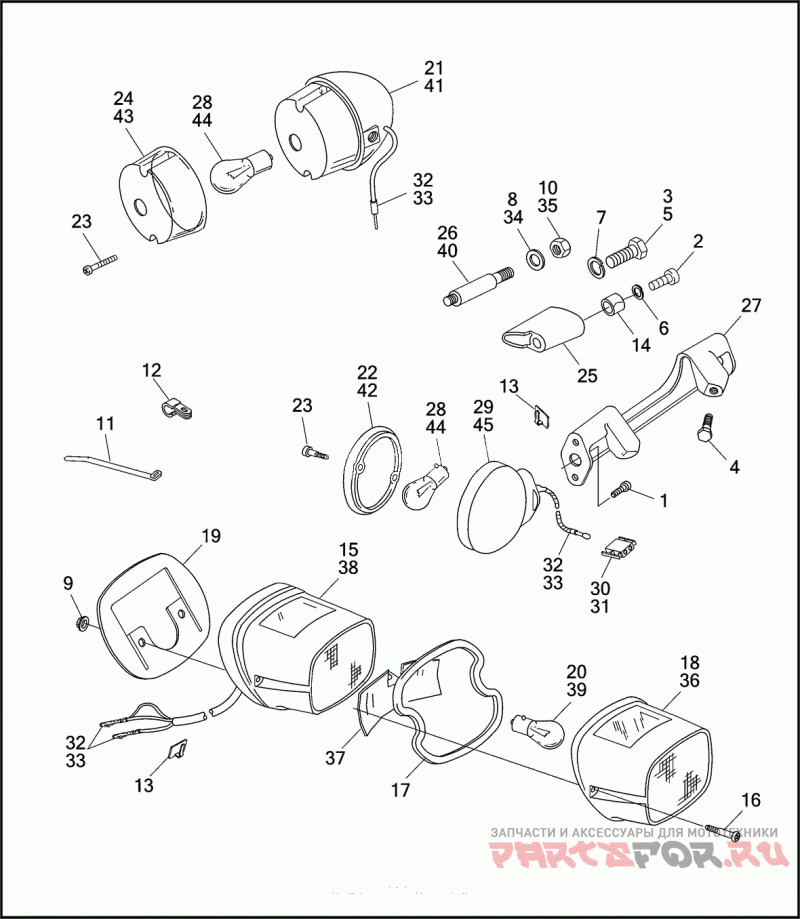

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXSTSB 1BPL SPRINGER SOFTAIL (1996)

Harley Davidson
#oem кодцена
2
2696
SCREW 5/16-24 X 3/4 SOCKET HD. (GRADE 8)
3
2904A
SCREW 3/8-24 X 3/4 SOCKET HD.
5
3893
SCREW 1/4-20 X 1/2 HEX HD., W/WASHER, SELF-TAPPING
6
7042
LOCKWASHER 5/16 HIGH COLLAR
7
7045
LOCKWASHER 3/8 HIGH COLLAR
9
7501
SPEED NUT
11
10065
CABLE STRAP
14
59959-86
Проставка
15
68048-93B
TAIL LAMP ASSEMBLY
16
68026-73
SCREW TAIL LAMP
17
68027-90
GASKET TAIL LAMP LENS
18
68033-90
LENS TAIL LAMP (RED)
20
68168-89A
BULB TAIL LAMP
21
68760-94
LAMP W/ WIRE, REAR (AMBER)
23
68452-86
Винт
25
68480-73
SUPPORT REAR LAMP MOUNTING
28
68572-64B
BULB REAR TURN SIGNAL
31
73158-96BK
SOCKET HOUSING 8-PLACE
33
73191-96
CONTACT SOCKET 16-20 GAUGE
34
7101
LOCKWASHER 3/8 INTERNAL/EXTERNAL TOOTH
35
7800W
NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
36
68032-90
LENS TAIL LAMP (RED) (HDI)
37
68036-91
REFLECTOR TAIL LAMP (HDI)
38
68049-93B
TAIL LAMP ASSEMBLY (HDI)
39
68169-90A
BULB TAIL LAMP (HDI)
40
68493-90
SUPPORT TURN SIGNAL (HDI)
41
68802-95
LAMP W/ WIRE, REAR (AMBER) (HDI)
44
68163-84
BULB REAR TURN SIGNAL (HDI)
