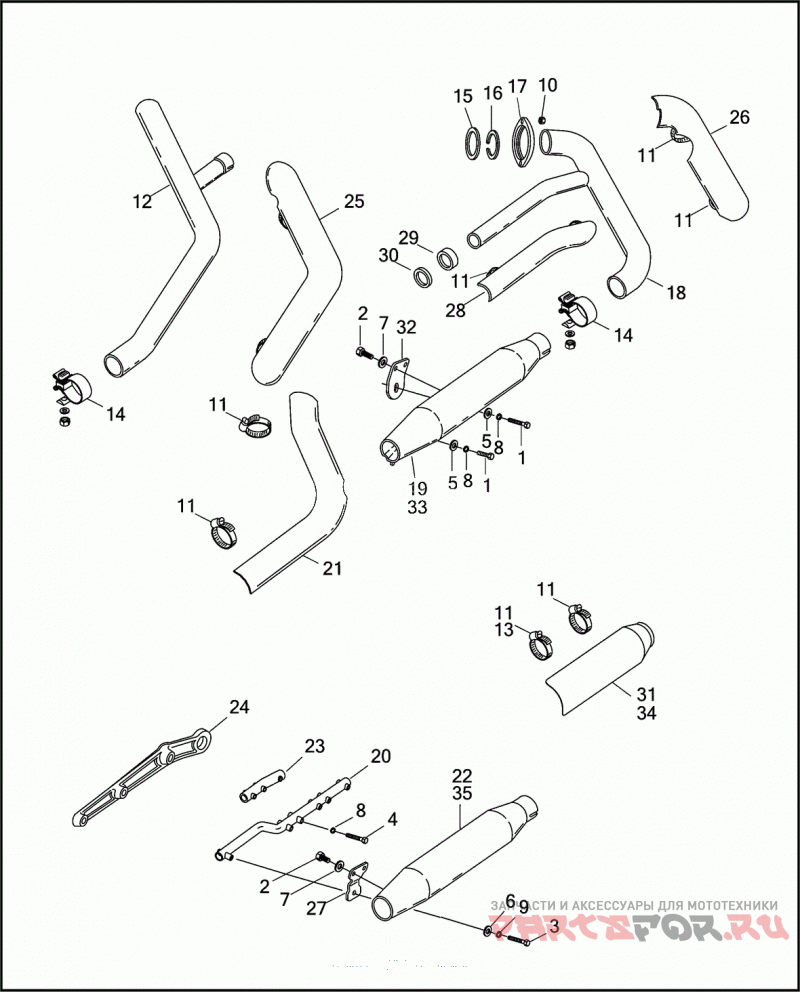

Глушитель

Harley Davidson FLSTF 1BML FAT BOY (1996)

Harley Davidson
#oem кодцена
1
2879W
BOLT 3/8-16 X 1 HEX HD. (GRADE 5)
2
3728
SCREW 1/4-20 X 1/2 HEX HD.
3
4017
BOLT 5/16-18 X 1 HEX HD. (GRADE 5)
4
4722
BOLT 3/8-16 X 2-1/4 HEX HD. (GRADE 5)
5
6701
WASHER 3/8 X 13/16 X 1/16
6
6702
WASHER 5/16 X 11/16 X 1/16
7
6703
WASHER 1/4 X 5/8 X 1/16
8
7038
LOCKWASHER 3/8
9
7041
LOCKWASHER 5/16
10
7593
NUT 5/16-24 FLANGE
11
9955
Зажим
12
65503-95
EXHAUST PIPE REAR
13
10074
CLAMP SHIELD
14
65296-95A
CLAMP MUF?ER
15
65324-83B
GASKET EXHAUST PORT
16
65325-83A
RETAINING RING EXHAUST GASKET
17
65328-83A
CLAMP EXHAUST MANIFOLD
18
65499-95
EXHAUST PIPE FRONT
21
65464-95
SHIELD REAR EXHAUST & MUF?ER
22
65904-95
MUFFLER REAR (CALIF.)
23
65515-95
SUPPORT TUBE FRONT
24
65522-91
MUFFLER SUPPORT REAR
26
65761-95
SHIELD FRONT EXHAUST
27
65734-95
BRACKET REAR MUF?ER
28
65777-95
SHIELD INTERCONNECT
29
65781-82
GASKET INTERCONNECT
30
65782-82
WASHER INTERCONNECT
31
65813-95
HEAT SHIELD MUF?ER
32
65887-95
BRACKET FRONT MUF?ER
34
65864-95
HEAT SHIELD MUFFLER
35
65890-95
MUFFLER REAR (HDI ONLY)
35
65892-95A
MUFFLER REAR, CATALYTIC (SWISS ONLY)
