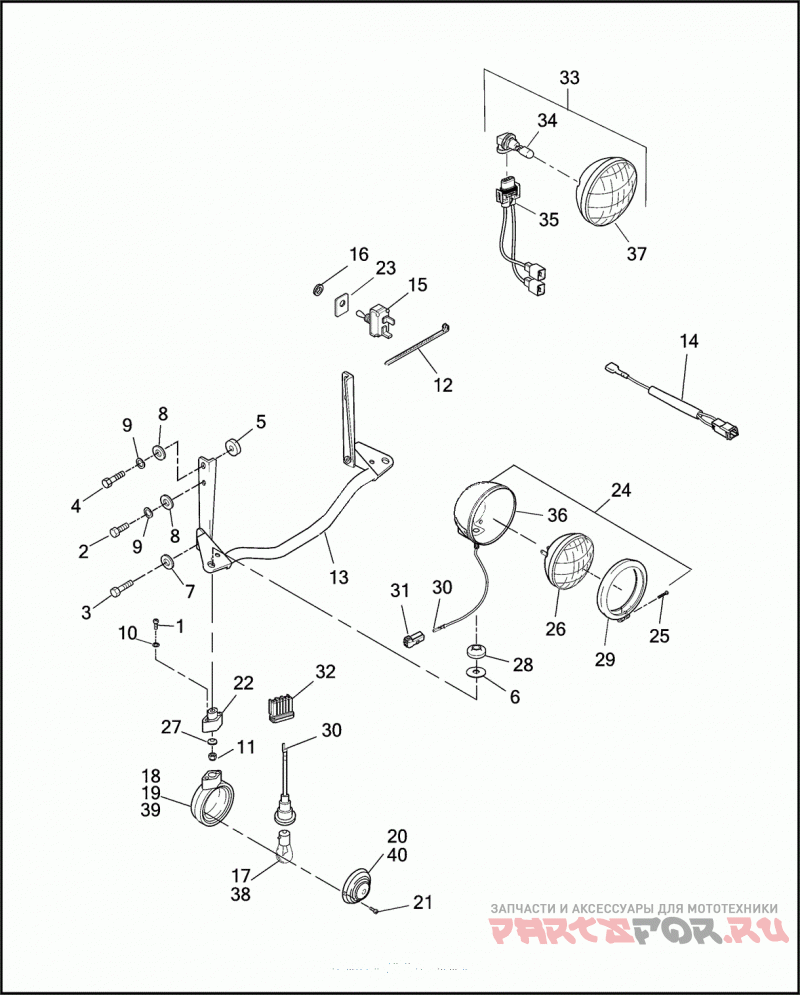

AUXILIARY/FOG LAMPS & FRONT TURN SIGNALS - FLSTC

Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1996)

Harley Davidson
#oem кодцена
1
2647B
SCREW NO. 10-24 X 3/4 SOCKET HD., SELF-LOCKING
2
3960W
BOLT 5/16-24 X 1 HEX HD. (GRADE 5)
3
4014W
BOLT 5/16-24 X 1-1/4 HEX HD. (GRADE 5)
4
4036
BOLT 5/16-24 X 1-1/2 HEX HD. (GRADE 5)
5
5885
Проставка
6
6072
WASHER 3/8 X 1 1/4 X 5/64
7
6109
WASHER 5/16 X 11/16 X 1/8
8
6645
WASHER 11/32 X 1-1/32 X 1/8
9
7041
LOCKWASHER 5/16
10
7069
LOCKWASHER NO. 10
11
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
12
10006
CABLE STRAP
13
57852-02A
BRACKET AUXILIARY LAMPS
15
67858-89
TOGGLE SWITCH AUXILIARY LAMPS
16
67846-70
NUT TOGGLE SWITCH
17
68168-89A
BULB TURN SIGNAL
18
68766-94
TURN SIGNAL
20
68440-86
LENS TURN SIGNAL (AMBER)
21
68452-86
Винт
22
68519-68A
MOUNTING BRACKET
23
68619-83
LABEL AUXILIARY LAMP SWITCH
24
68671-69D
AUXILIARY LAMP ASSEMBLY W/ 68683-02 & 68725-62A
25
68672-38
SCREW AUXILIARY LAMP MOLDING
26
68674-69A
SEALED UNIT AUXILIARY LAMPS (USE 68348-05)
27
68720-62
CLAMP BLOCK AUXILIARY LAMPS
28
68721-62
SWIVEL BLOCK AUXILIARY LAMPS
29
68725-62A
MOLDING AUXILIARY LAMPS
30
73191-96
SOCKET CONTACT 16-20 GAUGE
31
73152-96BK
HOUSING 2-WAY SOCKET
32
73156-96BK
HOUSING 6-WAY SOCKET
33
68348-05
AUXILIARY LAMP KIT W/ 68355-05 & 68414-05 (REPLACES 68674-69A)
34
68000056
BULB TURN SIGNAL (USED W/ 68414-05)
35
68355-05
Провода
36
68683-02
HOUSING LAMP (CHROME)
37
68414-05A
LAMP AUXILIARY, W/ 68000056 (DOMESTIC)
38
68163-84
BULB TURN SIGNAL (HDI)
39
68767-94
TURN SIGNAL (HDI)
40
68505-90
LENS TURN SIGNAL (AMBER) (HDI)
41
68777-96
FOG LAMP NON-FUNCTIONAL (HDI) (NOT ILLUSTRATED)
