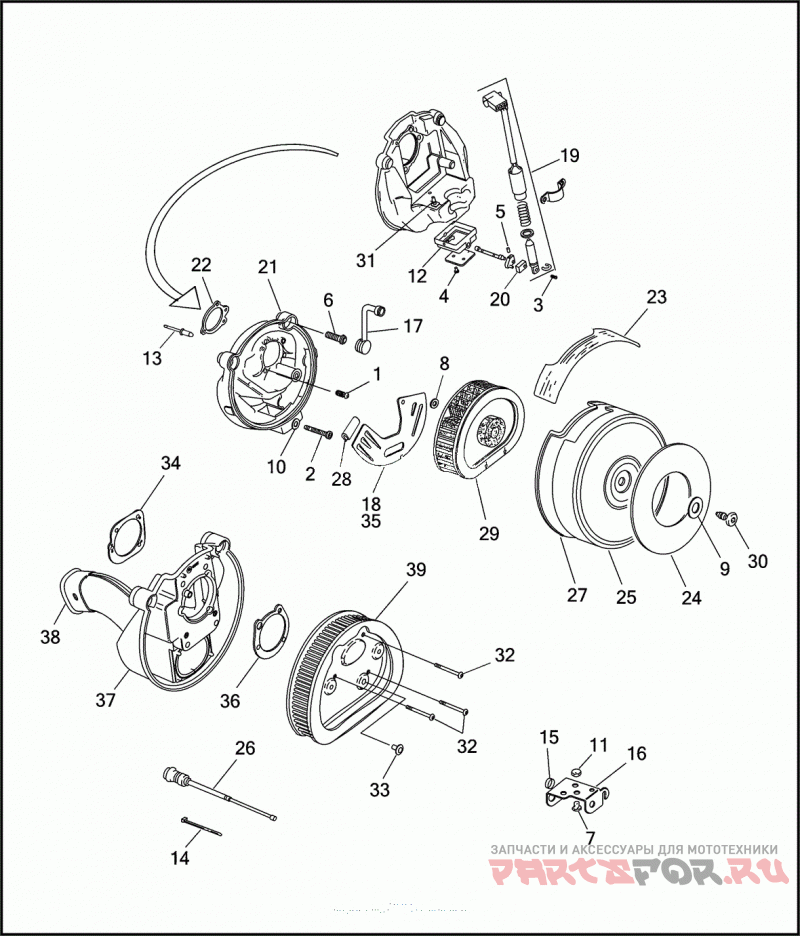

AIR CLEANER & ENRICHENER

Harley Davidson FLSTC 1BJL HERITAGE SOFTAIL CLASSIC (1996)

Harley Davidson
#oem кодцена
1
864A
SCREW 1/4-20 X 3/4 HEX SOCKET BUTTON HD.
2
1795A
SCREW 1/4-20 X 3 SOCKET HD. (GRADE 8)
3
2711
SCREW NO. 4-40 X 3/8 PAN HD., SELF-TAPPING
4
2737
SCREW NO. 4-40 X 1/4 POZIDRIV PAN HD. (GRADE 2)
6
3577
SCREW BREATHER
7
4713W
BOLT 3/8-16 X 3/4 HEX HD. (GRADE 5)
8
6048W
WASHER 1/8 X 1/4 X 1/32
9
6109
WASHER 5/16 X 11/16 X 1/8
10
6253W
WASHER 1/4 X 3/4 X 3/64
11
7601
LOCKNUT 3/8-16 FLANGE
12
8535
RIVET (CALIFORNIA)
13
8625
Поп-Заклепки
14
10006
CABLE STRAP
15
11460
Уплотнитель резиновый
16
69126-92
BRACKET ENRICHMENT CABLE
17
24922-93
BREATHER CONNECTOR
18
28823-89
BAFFLE PLATE ASSEMBLY (CALIFORNIA)
19
28827-96A
SOLENOID (CALIFORNIA)
20
28842-89
LINK (CALIFORNIA)
21
29087-96
BACKPLATE ASSEMBLY W/ SOLENOID (CALIFORNIA)
21
29134-92
BACKPLATE ASSEMBLY
22
29059-88A
Прокладка
23
29126-90B
SAFETY LABEL
24
29161-86
TRIM in.HERITAGE SOFTAILin.
25
29165-89
COVER AIR CLEANER
26
29229-88D
CABLE ENRICHMENT
27
29252-89
MOLDING
29
29330-96
FILTER ELEMENT
30
29283-93
Винт
31
61095-92
FITTING (CALIFORNIA)
32
946
SCREW 1/4-20 X 2-1/4 SOCKET BUTTON HD., W/LOCKPATCH (GRADE 8)
33
24925-95
PLUG (HDI)
34
29062-95B
GASKET (HDI)
35
29070-89B
BAFFLE PLATE (HDI)
36
29313-95
GASKET (HDI)
37
29319-95A
BACKPLATE W/ 29323-95 (HDI)
38
29323-95
INLET SNORKLE (HDI)
39
29325-95A
FILTER ELEMENT W/ 33, 36 & (3) NYLON SEAT WASHERS (HDI)
