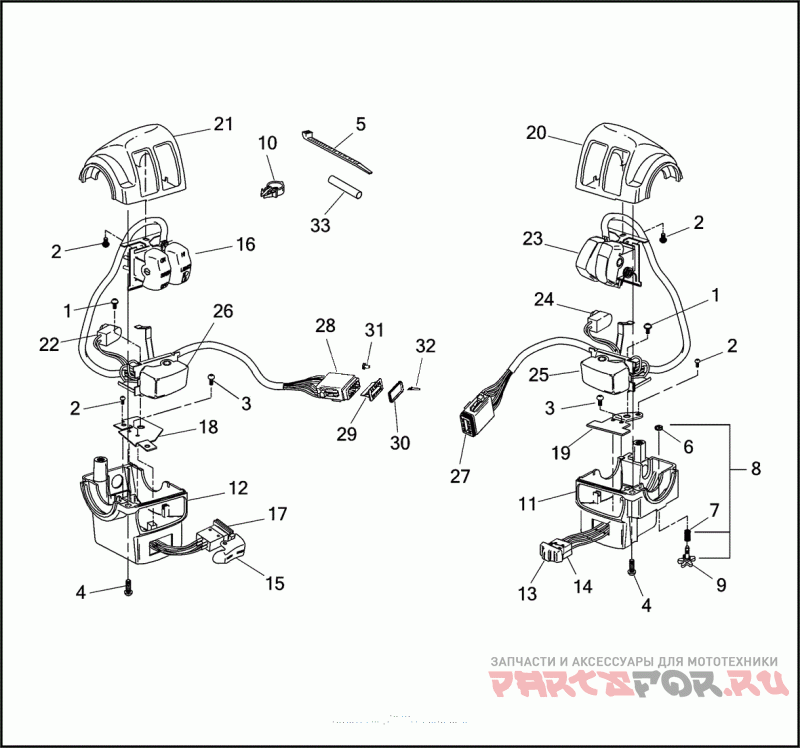

HANDLEBAR SWITCHES

Harley Davidson FLHTP 1DFL ELECTRA GLIDE STANDARD POLICE (1996)

Harley Davidson
#oem кодцена
1
2558
Деталь SCREW NO. 6-32 X 3/16 PAN HD.
2
2955
Деталь SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
3
3619
Деталь SCREW NO. 2-56 X 3/4 TORX PAN HD., W/WASHER
4
3658
Деталь SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
5
10181
Деталь CABLE STRAP (AS REQUIRED)
6
11155
Стопорное кольцо
7
56394-74
Деталь SPRING ADJUSTING SCREW
8
56397-74C
Деталь KIT THROTTLE ADJUSTING SCREW, W/ 6, 7 & 9
9
56402-83A
Деталь ADJUSTING SCREW THROTTLE
10
70345-84
Деталь RETAINER WIRING
11
70355-96
Деталь HOUSING LOWER, RIGHT
12
70358-96
Деталь HOUSING LOWER, LEFT
13
70356-96A
Деталь KNOB PURSUIT
14
70357-96
Деталь SWITCH ASSEMBLY PURSUIT, W/ 5 & 33
15
70359-96A
Деталь KNOB HORN/SIREN
16
70360-96
Деталь SWITCH ASSEMBLY SIREN/DIMMER, W/ 5 & 33
17
70361-96
Деталь SWITCH ASSEMBLY HORN/SIREN, W/ 5 & 33
18
70388-96
Деталь BRACKET SWITCH, LEFT
19
70389-96
Деталь BRACKET SWITCH, RIGHT
20
71564-96
Деталь HOUSING UPPER, RIGHT
21
71567-96
Деталь HOUSING UPPER, LEFT
22
71620-08
Деталь SWITCH KIT CLUTCH
23
71684-06A
Деталь SWITCH KIT ENGINE STOP & START, W/ 5 & 33
24
71621-08
Деталь SWITCH KIT STOPLAMP, W/ 5 & 33
25
71591-96A
Деталь SWITCH ASSEMBLY RIGHT TURN SIGNAL, W/ 5 & 33
26
71598-96A
Деталь SWITCH ASSEMBLY LEFT TURN SIGNAL, W/ 5 & 33
27
72119-94BK
Деталь PLUG 12-WAY SOCKET , RIGHT
28
72139-94GY
Деталь PLUG 12-WAY SOCKET , LEFT
29
72159-94
Деталь SOCKET LOCK SECONDARY, 12-WAY
30
72179-94
Деталь FRONT SEAL 12-WAY PLUG
31
72195-94
Деталь SEAL PIN (AS REQUIRED)
32
72191-94
Деталь TERMINAL SOCKET (AS REQUIRED)
33
72266-94
Деталь HEAT SHRINK TUBE DUAL WALL, .3in. X 2in. (AS REQUIRED)
