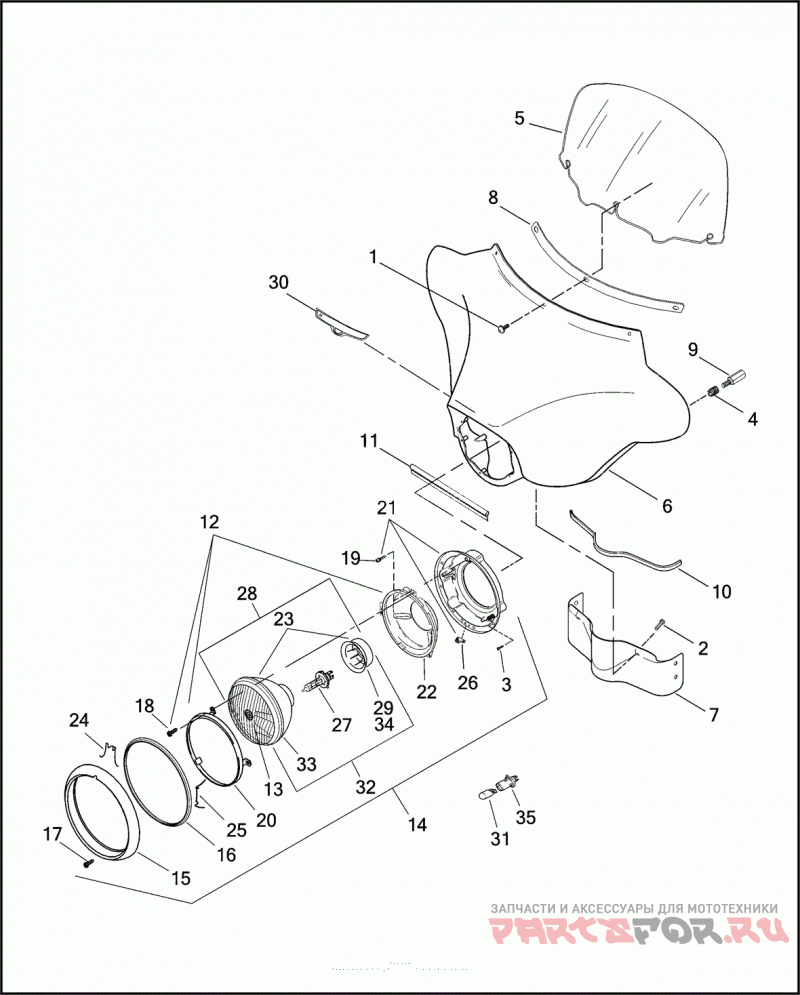

WINDSHIELD, FAIRING & HEADLAMP - 1996 FLHT

Harley Davidson FLHTCU 1DPL ULTRA CLASSIC (1996)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
3
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
4
16585-96
INSERT REPAIR KIT, THREADED
5
58187-96
Ветровое стекло
6
58236-96
FAIRING OUTER (PRIMED)
7
58208-96A
SKIRT OUTER FAIRING
8
58247-96
CUSHION TAPE WINDSHIELD MOUNTING
9
58949-96
NUT EXTENSION
10
62786-96
TRIM STRIP SKIRT
11
62787-96
SEAL FAIRING SKIRT
12
67001-08
RETAINING RING KIT HEADLIGHT, W/ 67721-48, 67726-08 & 67732-08 (REPLACES 67726-71 & 67732-71A)
13
67668-05
MEDALLION (USED W/ 67702-81C)
14
67702-81C
HEADLAMP ASSEMBLY complete, w/ 22, 30, 31, 34, 36, 38, 39, 51, 56, 62, 63, 64 & 65
15
67712-83B
DOOR (CHROME)
16
67716-60C
GASKET HEADLAMP DOOR (USED W/ 67702-81A)
17
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
18
67721-48
SCREW HEADLAMP RETAINER RING
19
67724-71
ADJUSTING SCREW HEADLAMP
20
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
20
67726-08
RING ASSEMBLY HEADLAMP (USED W/ 67001-08)
21
67728-02A
BUCKET ASSEMBLY HEADLAMP, W/ 67724-71 & 67782-60A (USED W/ 67702-81C)
22
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic)
22
67732-08
RING MOUNTING, HEADLAMP (USED W/ 67001-08)
23
67755-81A
LENS HEADLAMP, W/ BOOT (USED W/ 67702-81A)
24
67778-60A
TOP SPRING HEADLAMP DOOR
25
67780-60A
BOTTOM SPRING HEADLAMP DOOR (USED W/ 67702-81A)
26
67782-60A
BRACKET HEADLAMP DOOR
27
68329-03
BULB (HALOGEN H-4)
28
68342-05A
LENS ASSEMBLY 7 IN, WITH 67668-05, 68329-03 AND 68390-05 (DOMESTIC)
29
68390-05
BOOT (USED W/ 67702-81C)
30
14580-96
DECAL FAIRING (GOLD/RED)
30
14581-96
DECAL FAIRING (GOLD/BLUE)
30
14582-96
DECAL FAIRING (SILVER/GREEN)
31
53438-92
BULB POSITION LAMP (HDI)
32
67793-92A
LENS ASSEMBLY R.H. DIP, W/ 67797-92, 67798-92 & 68329-03
32
67801-92A
LENS ASSEMBLY L.H. DIP, W/ 67798-92, 67803-92 & 68329-03
34
67798-92
BOOT (HDI)
35
68654-92
SOCKET POSITION LAMP (HDI)
