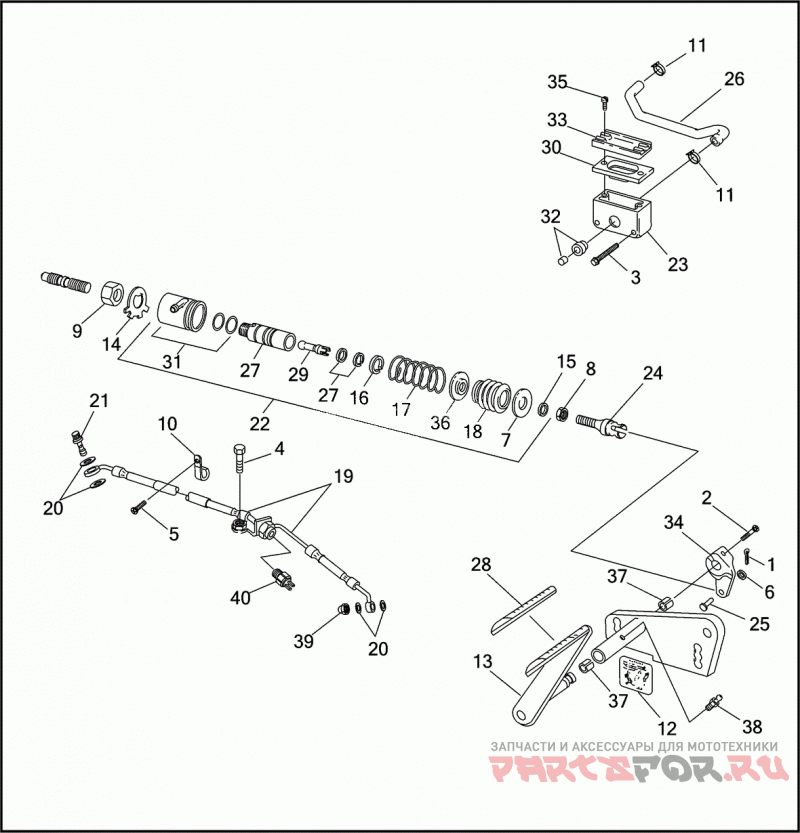

Тормозной цилиндр задний

Harley Davidson FLHT 1DDL ELECTRA GLIDE STANDARD (1996)

Harley Davidson
#oem кодцена
1
515
Шплинт
2
2708A
SCREW 5/16-18 X 1 SOCKET HD.
3
2928
SCREW 1/4 X 2 HEX HD., SELF-TAPPING
4
3588
SCREW 1/4-20 X 1/2 HEX FLANGE HD.
5
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
6
6220W
WASHER 1/4 X 7/16 X 1/32
7
6366
WASHER 1/2 X 1-1/4 X 3/32
8
7744
JAMNUT 5/16-24 X 3/16 X 1/2 (GRADE 2)
9
7855W
JAMNUT 3/4-16 X 7/16 X 1-1/8 (GRADE 2)
10
10031
Зажим
11
10038A
CLAMP BRAKE HOSE
12
14027-92A
LABEL BRAKE ADJUSTMENT
13
33882-83B
FOOT BRAKE LEVER
14
37503-41
Стопорная шайба
15
40903-87
Стопорное кольцо
16
40918-87
Стопорное кольцо
17
40920-87
SPRING BRAKE ROD RETURN
18
40922-87A
BOOT MASTER CYLINDER
19
40971-93C
BRAKE HOSE REAR
20
41731-88A
Прокладка
21
41747-82A
Болт
22
41755-95A
MASTER CYLINDER
23
41807-95
RESERVOIR MASTER CYLINDER
24
41957-92
PUSHROD
25
42460-80B
CLEVIS PIN
26
42370-95
HOSE RESERVOIR TO MASTER CYLINDER
27
42382-87E
REPAIR KIT master cylinder
28
42416-83
PAD BRAKE PEDAL
29
42448-87
PUSHROD
30
42455-80
GASKET MASTER CYLINDER RESERVOIR
31
42457-95
RESERVOIR ADAPTOR
32
45042-82
SIGHT GLASS REPAIR KIT
33
45057-82
COVER RESERVOIR
34
42510-92
CLEVIS ASSEMBLY
35
42534-90
Винт
36
44126-87
RETAINER BRAKE RETURN SPRING
37
47247-83
BUSHING HUB FOOT BRAKE
38
83459-09
FITTING lubrication
39
54307-92
ACORN NUT BRAKE
40
72023-51E
SWITCH STOPLAMP
