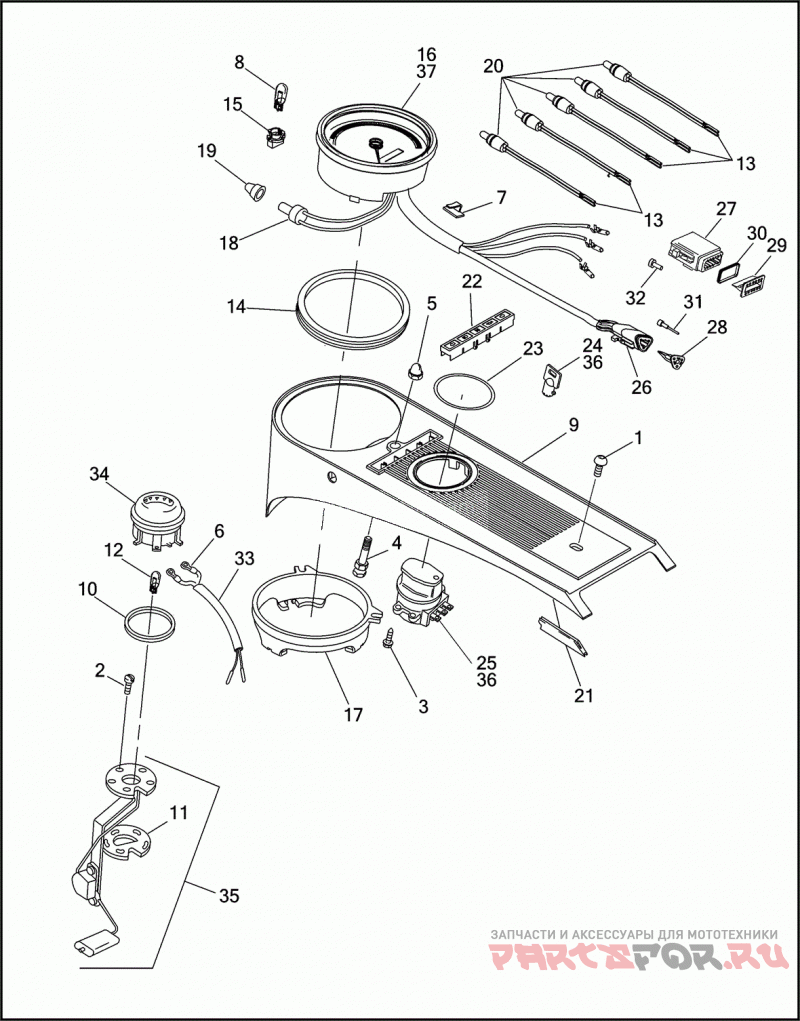

FUEL TANK INSTRUMENTS - FLHR

Harley Davidson FLHR 1FDL ROAD KING (1996)

Harley Davidson
#oem кодцена
1
932
SCREW 1/4-20 X 1/2 TRUSS HD. (CHROME)
2
1311D
SCREW NO. 8-32 X 1/2 PHILLIPS TRUSS HD., SELF-SEALING
3
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
4
3262
Шпилька
5
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
6
9856
TERMINAL RING TYPE, #6 HOLE
7
10103
Зажим
8
67136-85
BULB ODOMETER
8
53439-79
BULB SPEEDOMETER
9
60960-94B
INSTRUMENT PANEL
10
61192-88
GASKET FUEL GAUGE
11
61324-88A
GASKET FUEL SENDER
12
67136-85
BULB FUEL GAUGE
13
67184-94
SOCKET INDICATOR LAMPS
14
67190-89
SEAL SPEEDOMETER
15
67191-94
SOCKET SPEEDOMETER
16
67033-95D
SPEEDOMETER MPH, W/ INDICATOR LAMPS
17
67271-94A
BACK CLAMP
18
67854-98
SWITCH ODOMETER RESET
19
67880-94
BOOT ODOMETER RESET SWITCH
20
68024-94
BULB INDICATOR LAMP
21
71001-94
Планка
22
71146-94
LENS INDICATOR LAMPS
23
71307-94A
NAMEPLATE IGNITION SWITCH
25
71313-96A
IGNITION SWITCH W/ KEY
26
72113-94BK
PLUG 3-WAY SOCKET
27
72119-94BK
PLUG 12-WAY SOCKET
28
72153-94
SECONDARY LOCK 3-WAY SOCKET
29
72159-94
SECONDARY LOCK 12-WAY SOCKET
30
72179-94
FRONT SEAL 12-WAY PLUG
31
72191-94
TERMINAL SOCKET
32
72195-94
SEAL PIN
33
75047-88
HARNESS FUEL GAUGE
34
75049-88C
FUEL GAUGE W/ BULB
35
75064-96
SENDING UNIT W/ GASKET
36
53571-03A
LOCK SET COMPLETE VEHICLE
37
67197-94D
SPEEDOMETER KPH, W/ INDICATOR LAMPS, KPH (HDI)
37
67196-94D
SPEEDOMETER MPH/KPH, W/ INDICATOR LAMPS, MPH/KPH (GREAT BRITAIN)
