  5. XL883HUG 4CEM SPORTSTER 883 HUGGER (1995)

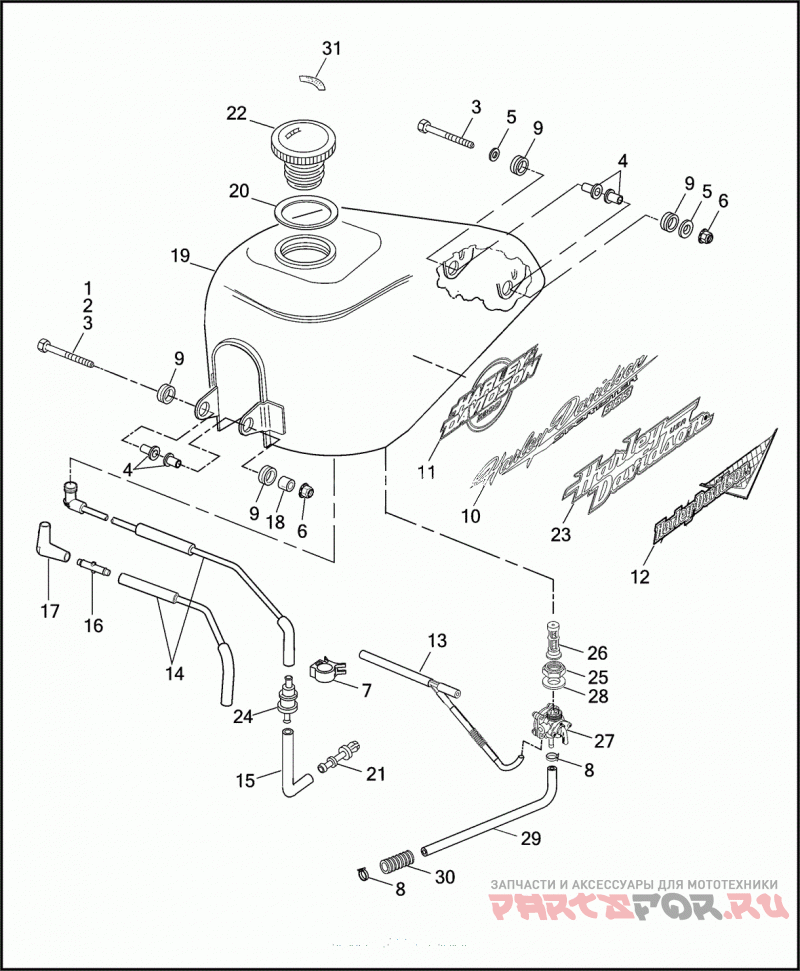

FUEL TANK & TRIM

Harley Davidson XL883HUG 4CEM SPORTSTER 883 HUGGER (1995)

Harley Davidson
#oem кодцена
1
4067
BOLT 5/16-18 X 4-1/2 HEX HD. (GRADE 5)
3
4117
SCREW 5/16-18 X 3-1/8 HEX HD. (GRADE 5)
4
5787
T-SPACER
5
6788
WASHER 21/6 X 1/2 X 1/16
6
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
7
10108
CLIP VAPOR VALVE
8
10014
CLAMP FUEL HOSE
9
11473
Уплотнитель резиновый
10
14431-95
DECAL ORANGE
10
14480-95
DECAL SKY BLUE
13
26559-95
HOSE ASSEMBLY VACUUM
14
63501-68B
TUBE TANK TO VALVE
15
27096-94
TUBE VALVE TO ATMOSPHERE
18
42520-80A
SPACER FUEL TANK-FRONT
19
61023-95
FUEL TANK (PRIME)
20
61109-85D
Прокладка
21
61131-92
VENT LINE CONNECTOR
22
61272-92C
Крышка заливной горловины
24
62150-85
VAPOR VALVE
25
62161-02
NUT FUEL VALVE
26
62166-81A
FILTER FUEL VALVE
27
62169-95C
FUEL VALVE W/ GASKET
28
62172-02
GASKET FUEL VALVE
29
62347-95
HOSE FUEL
30
62555-95
INSULATOR 1/2 I.D. (NYLON) (8 FT. LG.)
31
14456-95
DECAL UNLEADED FUEL (HDI)
32
61450-95
FUEL INLET RESTRICTOR KIT (SWISS) (NOT ILLUSTRATED)
