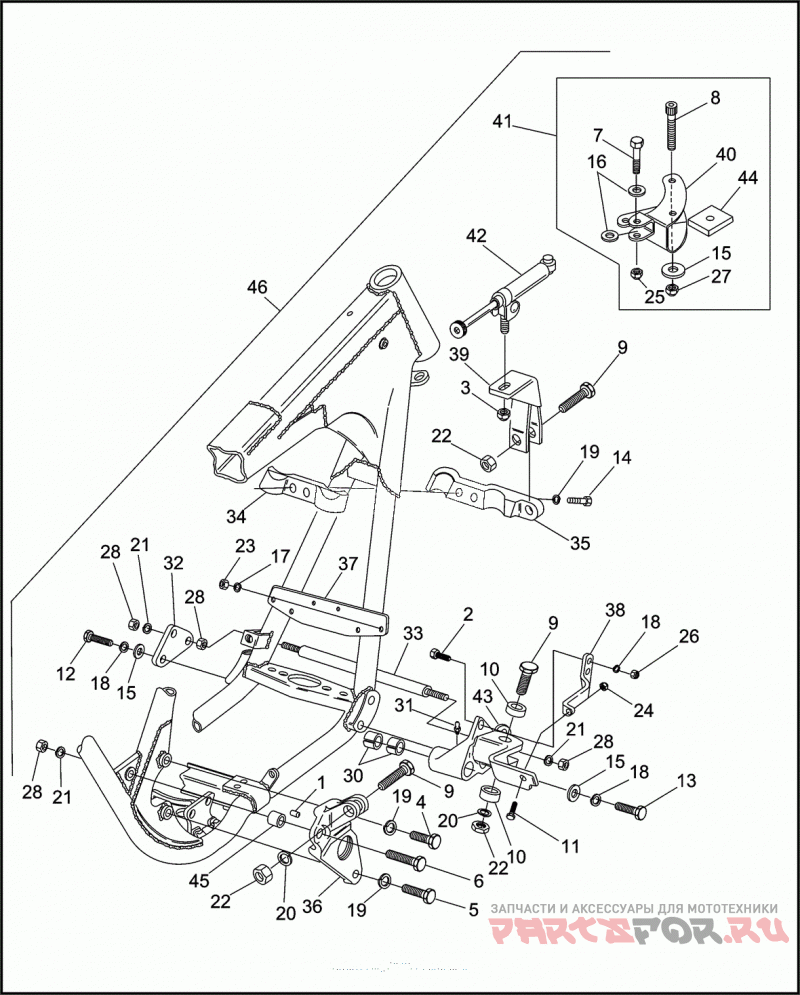

SIDECAR CONNECTION KIT - RLE

Harley Davidson RLE SH95 RLE SIDECAR (1995)

SIDECAR CONNECTION KIT - RLE

#

oem код

название

цена

1

ROLL PIN | SH95

ROLL PIN | SH95

2

BOLT 3/8-16 X 1 hex hd. (Grade 5) | SH95

BOLT 3/8-16 X 1 hex hd. (Grade 5) | SH95

3

LOCKNUT M8-1.25 X 12mm flange (zinc) | SH95

LOCKNUT M8-1.25 X 12mm flange (zinc) | SH95

4

BOLT 7/16-14 X 2 hex hd. (Grade 5) | SH95

BOLT 7/16-14 X 2 hex hd. (Grade 5) | SH95

5

BOLT 7/16-14 X 1-1/2 hex hd. (Grade 5) | SH95

BOLT 7/16-14 X 1-1/2 hex hd. (Grade 5) | SH95

6

BOLT 1/2-20 X 2-1/4 hex hd. (Grade 5) | SH95

BOLT 1/2-20 X 2-1/4 hex hd. (Grade 5) | SH95

7

SCREW 5/16-24 X 1-5/8 hex hd. | SH95

SCREW 5/16-24 X 1-5/8 hex hd. | SH95

8

SCREW 3/8-16 X 2-7/16 socket pan hd. | SH95

SCREW 3/8-16 X 2-7/16 socket pan hd. | SH95

9

SCREW 3/4-10 X 2-3/4 hex hd. (Grade 8) | SH95

SCREW 3/4-10 X 2-3/4 hex hd. (Grade 8) | SH95

10

SPACER | SH95

SPACER | SH95

11

BOLT 5/16-24 X 1-1/2 hex hd. (Grade 5) | SH95

BOLT 5/16-24 X 1-1/2 hex hd. (Grade 5) | SH95

12

SCREW 3/8-16 X 1-1/4 hex hd. (Grade 5) | SH95

SCREW 3/8-16 X 1-1/4 hex hd. (Grade 5) | SH95

13

BOLT 3/8-16 X 1-1/2 hex hd. (Grade 5) | SH95

BOLT 3/8-16 X 1-1/2 hex hd. (Grade 5) | SH95

14

BOLT 7/16-20 X 1-1/2 hex hd. (Grade 5) | SH95

BOLT 7/16-20 X 1-1/2 hex hd. (Grade 5) | SH95

15

WASHER 3/8 X 13/16 X 1/16 | SH95

WASHER 3/8 X 13/16 X 1/16 | SH95

16

WASHER 5/16 X 11/16 X 1/16 | SH95

WASHER 5/16 X 11/16 X 1/16 | SH95

17

WASHER 1/4 X 31/64 X 1/16 | SH95

WASHER 1/4 X 31/64 X 1/16 | SH95

18

LOCKWASHER 3/8 | SH95

LOCKWASHER 3/8 | SH95

19

LOCKWASHER 7/16 | SH95

LOCKWASHER 7/16 | SH95

20

LOCKWASHER 3/4 | SH95

LOCKWASHER 3/4 | SH95

21

LOCKWASHER 1/2 | SH95

LOCKWASHER 1/2 | SH95

22

NUT 3/4-10 | SH95

NUT 3/4-10 | SH95

23

NUT 1/4-20 X 7/32 X 7/16 (Grade 2) | SH95

NUT 1/4-20 X 7/32 X 7/16 (Grade 2) | SH95

24

LOCKNUT 5/16-24 X 11/32 X 1/2 | SH95

LOCKNUT 5/16-24 X 11/32 X 1/2 | SH95

25

LOCKNUT 5/16-24 X 1/4 X 1/2 | SH95

LOCKNUT 5/16-24 X 1/4 X 1/2 | SH95

26

LOCKNUT 3/8-16 X 7/16 X 9/16 | SH95

LOCKNUT 3/8-16 X 7/16 X 9/16 | SH95

27

NUT 3/8-16 X 5/16 X 9/16 (Grade 2) | SH95

NUT 3/8-16 X 5/16 X 9/16 (Grade 2) | SH95

28

NUT 1/2-20 X 7/16 X 3/4 (Grade 2) | SH95

NUT 1/2-20 X 7/16 X 3/4 (Grade 2) | SH95

29

FORK BRACE chrome (not illustrated) | SH95

FORK BRACE chrome (not illustrated) | SH95

30

BUSHING | SH95

BUSHING | SH95

31

FITTING lubrication | SH95

FITTING lubrication | SH95

32

ADJUSTER PLATE left front | SH95

ADJUSTER PLATE left front | SH95

33

STABILIZER front | SH95

STABILIZER front | SH95

34

UPPER CONNECTION rear | SH95

UPPER CONNECTION rear | SH95

35

UPPER CONNECTION front | SH95

UPPER CONNECTION front | SH95

36

BRACKET ASSEMBLY rear, w/ 604 | SH95

BRACKET ASSEMBLY rear, w/ 604 | SH95

37

BRACKET brake reservoir | SH95

BRACKET brake reservoir | SH95

38

BRACKET brake stop | SH95

BRACKET brake stop | SH95

39

DAMPER MOUNTING KIT | SH95

DAMPER MOUNTING KIT | SH95

40

MOUNTING BRACKET | SH95

MOUNTING BRACKET | SH95

41

DAMPER MOUNTING KIT | SH95

DAMPER MOUNTING KIT | SH95

42

STEERING DAMPER | SH95

STEERING DAMPER | SH95

43

BRACKET lower front, w/ 10, 30, & 31 | SH95

BRACKET lower front, w/ 10, 30, & 31 | SH95

44

SPACER | SH95

SPACER | SH95

45

SPACER rear mount | SH95

SPACER rear mount | SH95

46

SIDECAR CONNECTION KIT | SH95

SIDECAR CONNECTION KIT | SH95
