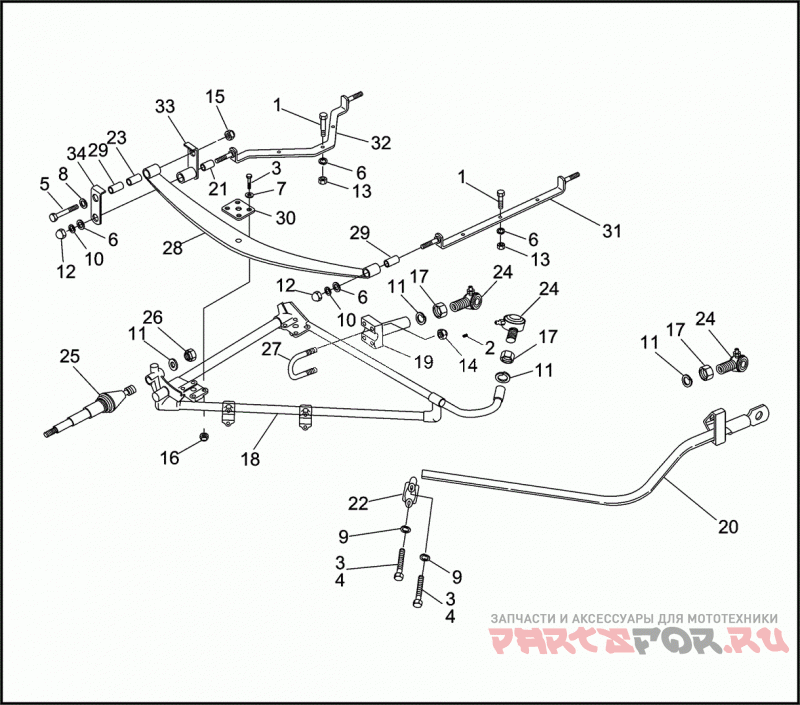

SIDECAR CHASSIS

Harley Davidson RLE HX RLE SIDECAR (1995)

Harley Davidson
#oem кодцена
1
2887WA
SCREW 5/16-18 X 1-3/4 hex hd. (Grade 5) | HX
2
3233
SCREW 1/4-28 X 1/4 socket hd. | HX
3
3764
BOLT 7/16-14 X 2 hex hd. (Grade 5) | HX
4
3946
BOLT 7/16-20 X 2 hex hd. (Grade 5) | HX
5
4401W
BOLT 3/8-24 X 2-3/4 hex hd. (Grade 5) | HX
6
6238
WASHER 11/32 X 1-1/8 X 5/64 | HX
7
6343
WASHER 15/32 X 59/64 X 5/64 | HX
8
6416
WASHER 3/8 X 1 X 5/64 | HX
9
7039
LOCKWASHER 7/16 | HX
10
7041
LOCKWASHER 5/16 | HX
11
7043
LOCKWASHER 3/4 | HX
12
7736
ACORN NUT 5/16-24 X 19/32 X 1/2 (Grade 2) (chrome) | HX
13
7748W
NUT 5/16-18 X 1/4 X 1/2 (Grade 2) | HX
14
7775
LOCKNUT 3/8-24 X 7/16 X 9/16 | HX
15
7780
LOCKNUT 3/8-24 X 13/32 X 11/16 flange | HX
16
7827W
LOCKNUT 7/16-14 | HX
17
7855W
JAMNUT 3/4-16 X 7/16 X 1-1/8 (Grade 2) | HX
18
87006-85
FRAME ASSEMBLY sidecar | HX
19
87014-85
REAR MOUNTING ASSEMBLY | HX
20
87030-85
BRACE sidecar frame | HX
21
88314-37
BUSHING shackle plate | HX
22
87117-36A
LOWER CLAMP | HX
23
87120-79
SPACER turn signal & spring shackle | HX
24
87159-83
ROD END sidecar mounting | HX
25
87435-83
AXLE | HX
26
87444-33
AXLE NUT inside sidecar frame | HX
27
87701-79
U-BOLT rear mounting bracket | HX
28
88100-94A
SIDECAR SPRING single leaf | HX
29
88174-94
SPRING BUSHING | HX
30
88175-94
SPRING PLATE | HX
31
88261-36
SUPPORT ROD front | HX
32
88264-36
SUPPORT ROD rear | HX
33
88301-79
SHACKLE PLATE w/ bushing & spring | HX
34
88302-79
SHACKLE PLATE spring, outer | HX
