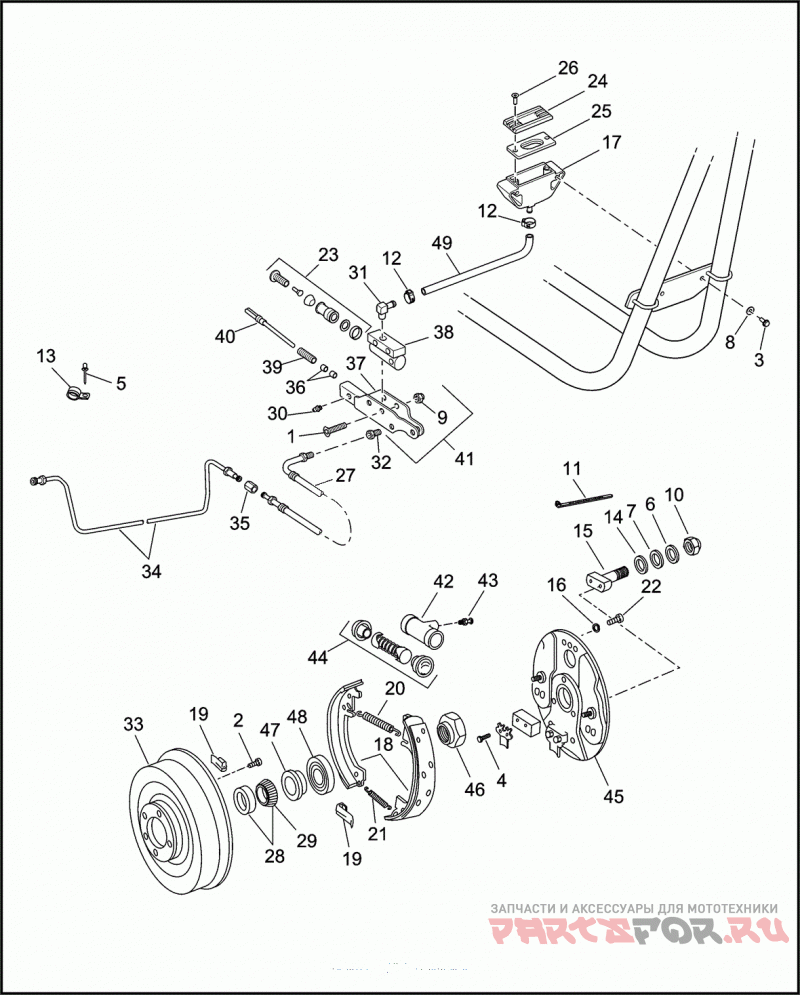

SIDECAR BRAKE

Harley Davidson RLE HX RLE SIDECAR (1995)

Harley Davidson
#oem кодцена
1
1610
SCREW 5/16-24 X 1-1/2 Pozidriv flat countersink hd. (Grade 2) | HX
2
1643
SCREW 7/16-14 X 1-1/4 socket flat countersink hd., w/lockpatch | HX
3
3473
BOLT No. 10-32 X 1/2 hex hd. (Grade 2) | HX
4
4020W
BOLT 5/16-24 X 1-3/8 hex hd. (Grade 5) | HX
5
4091
SCREW No. 10-24 X 1/2 hex hd., w/washer, self-tapping (zinc) | HX
6
6700B
WASHER 5/8 X 13/16 X 1/32 | HX
7
6712B
WASHER 5/8 X 15/16 X 3/32 | HX
8
6716
WASHER No. 10 X 1/2 X 3/64 | HX
9
7729
LOCKNUT 5/16-24 X 1/4 X 1/2 | HX
10
7993
LOCKNUT 5/8-18 X 15/16 | HX
11
10006
CABLE STRAP | HX
12
10038A
CLAMP | HX
13
10059A
CLAMP | HX
14
18268-48
WASHER (as required) | HX
15
41720-58
ANCHOR STUD | HX
16
7036
WASHER 1/4 X 31/64 X 1/16 | HX
17
41804-84A
RESERVOIR master cylinder | HX
18
41802-58A
SET OF BRAKE SHOES AND LININGS | HX
19
41835-58
HOLD DOWN spring | HX
20
41836-58
BRAKE SHOE SPRING upper | HX
21
41837-58
BRAKE SHOE SPRING lower | HX
22
3728
SCREW 1/4-20 X 1/2 hex hd. | HX
23
42374-77B
REPAIR KIT master cylinder | HX
24
45057-82
COVER reservoir | HX
25
42455-80
GASKET reservoir | HX
26
42534-90
SCREW | HX
27
45114-77
HOSE brake line | HX
28
48302-85
BEARING brake drum | HX
29
48315-60
BEARING CUP brake drum | HX
30
83459-09
FITTING lubrication | HX
31
63551-82
FITTING reservoir hose | HX
32
63609-72
FITTING brake hose | HX
33
87002-83
BRAKE DRUM ASSEMBLY | HX
34
87029-85
BRAKE LINE | HX
35
87032-85
FITTING brake line | HX
36
87038-85
BUSHING housing | HX
37
87039-85
HOUSING master cylinder | HX
38
87040-85
MASTER CYLINDER | HX
39
87041-85
SPRING brake rod | HX
40
87042-85
ROD brake | HX
41
87043-85
MASTER CYLINDER AND HOUSING ASSEMBLY | HX
42
87071-89
BRAKE CYLINDER wheel (5/8 inch) | HX
44
87752-89
REPAIR KIT brake cylinder (5/8 inch) | HX
45
87672-76
SIDE PLATE | HX
46
87706-83
LOCKNUT axle shaft | HX
47
87713-83
SPACER | HX
48
87714-83
OIL SEAL | HX
49
63521-95A
HOSE 5/16 I.D. (rubber) (25 ft. long) | HX
