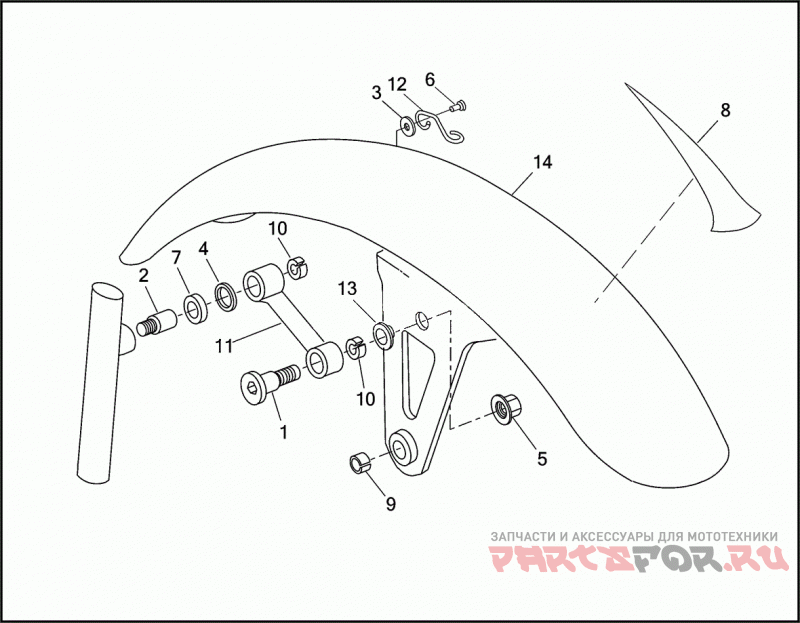

FRONT FENDER - FXSTS/B
Harley Davidson FXSTS 1BLL SPRINGER SOFTAIL (1995)
| # | oem код | название | цена |
|---|---|---|---|
1 | 2723A SCREW SHOULDER | SCREW SHOULDER | |
2 | 2738 PIVOT SHAFT | PIVOT SHAFT | |
3 | 6099 WASHER 1/4 X 7/16 X 1/16 | WASHER 1/4 X 7/16 X 1/16 | |
4 | 6409 WASHER 1/2 X 3/4 X 1/32 PLASTIC | WASHER 1/2 X 3/4 X 1/32 PLASTIC | |
5 | 7531 LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE | LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE | |
6 | 8505 заклёпка | заклёпка | |
7 | 11244 SPACER (RUBBER) | SPACER (RUBBER) | |
9 | 33714-90B Подшипник | Подшипник | |
10 | 33720-93 Подшипник | Подшипник | |
11 | 41042-93 PIVOT LINK W/ 33720-93 | PIVOT LINK W/ 33720-93 | |
12 | 45085-88A CABLE GUIDE | CABLE GUIDE | |
13 | 59043-93 INSERT FENDER | INSERT FENDER | |
14 | 59176-93 FENDER (PRIME) | FENDER (PRIME) |
