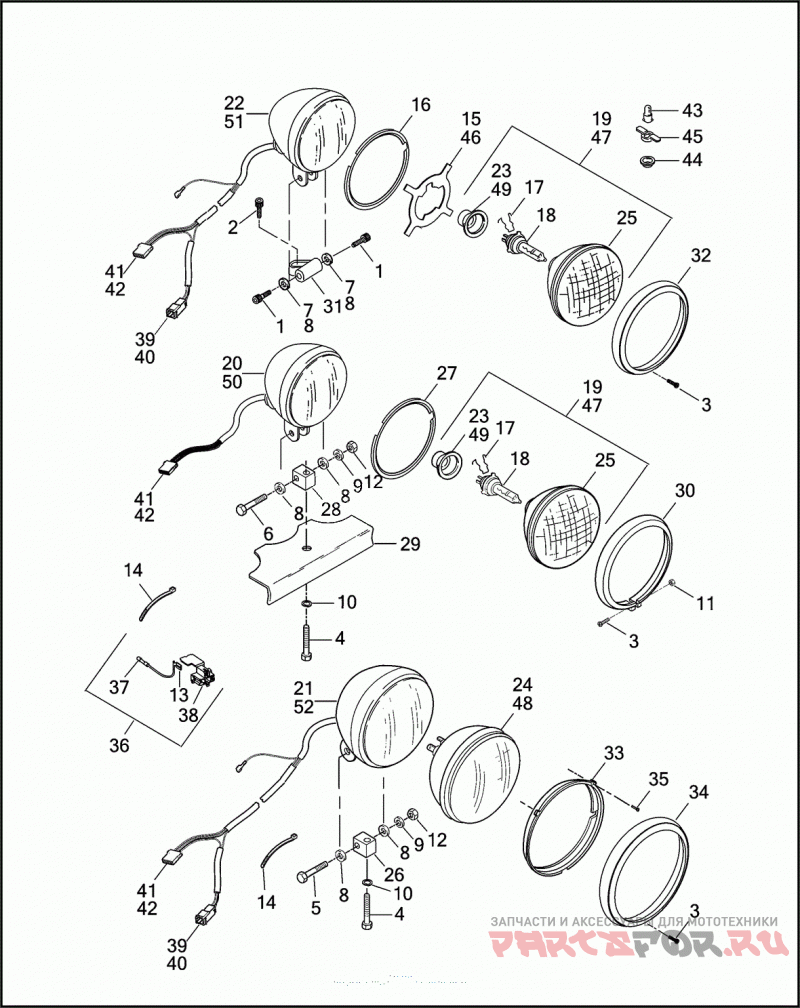

Фара

Harley Davidson FXSTC 1BKL SOFTAIL CUSTOM (1995)

Harley Davidson
#oem кодцена
3
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
4
3945
BOLT 3/8-24 X 2-1/4 HEX HD. (GRADE 5)
6
4724
BOLT 3/8-24 X 1-1/2 HEX HD. (GRADE 5)
8
6701
WASHER 3/8 X 13/16 X 1/16
10
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
11
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
12
7800W
NUT 3/8-24 X 5/16 X 9/16 (GRADE 2)
13
9847
WIRE TERMINAL FEMALE SPADE, R.H.
13
9848
WIRE TERMINAL FEMALE SPADE, L.H.
14
10065
CABLE STRAP
17
67685-92
CLIP BULB
18
68329-03
BULB HALOGEN H-4
19
67698-81D
HEADLAMP ASSEMBLY W/ BULB, BOOT & CLIP, 5-3/4in.
20
67777-80A
HEADLAMP ASSEMBLY W/ HOUSING & WIRING, 5-3/4in.
23
67705-92
BOOT CONNECTOR
25
67757-92
LENS W/ 67685-92
27
67769-93
ADAPTER RING
28
67772-80
MOUNTING BLOCK
29
67773-80A
MOUNTING PLATE
30
67790-93A
TRIM RING (CHROME)
36
68705-93A
CONNECTOR ASSEMBLY HEADLAMP, W/WIRES, TERMINALS & SPLICE CONNECTORS
37
70586-93
CONNECTOR BUTT SPLICE, 16-22 GAUGE
38
72056-92
INSULATOR SPADE TERMINAL (3-WAY)
43
53438-92
BULB POSITION LAMP
44
67691-92
GROMMET POSITION LAMP
45
68650-92
SOCKET POSITION LAMP
47
67763-92A
LENS ASSEMBLY W/ BULB & BOOT, R.H. DIP
47
67781-92A
LENS ASSEMBLY W/ BULB & BOOT, L.H. DIP
50
67872-89B
HEADLAMP COMPLETE, W/ WIRING, 5-3/4 INCH (LESS BULB)
