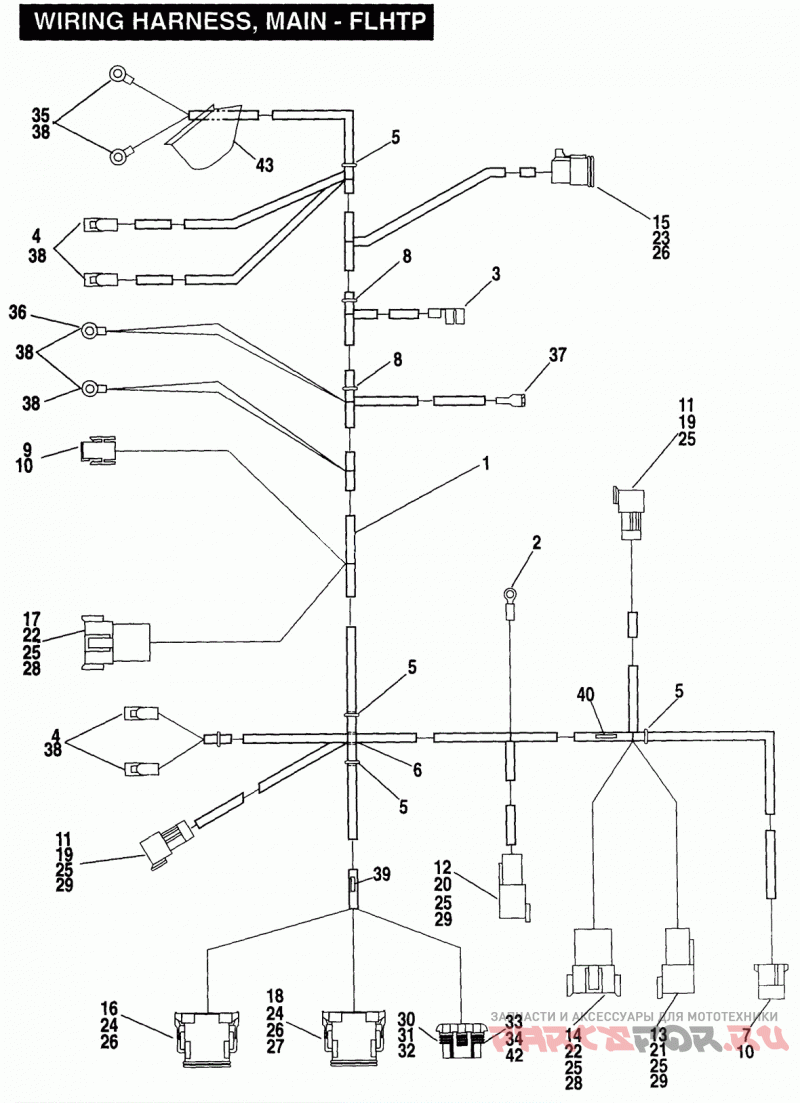

WIRING HARNESS, MAIN - FLHTP

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
70985-94
MAIN WIRING HARNESS - includes the following: | 95*-ALL
2
9866
TERMINAL, #10 ring type | 95*-ALL
3
9905
TERMINAL, 1/4in. cap type | 95*-ALL
4
9937
TERMINAL, 1/4in. ring, 14-18 ga. | 95*-ALL
5
10065
CABLE STRAP | 95*-ALL
6
10136
ANCHOR, T-stud | 95*-ALL
7
70289-89
PLUG, 3-way socket | 95*-ALL
8
70345-84
RETAINER | 95*-ALL
9
72034-71
CONNECTOR, two pin | 95*-ALL
10
72038-71A
TERMINAL, socket | 95*-ALL
11
72103-94BK
RECEPTACLE, 3-way pin | 95*-ALL
12
72104-94BK
RECEPTACLE, 4-way pin | 95*-ALL
13
72106-94BK
RECEPTACLE, 6-way pin | 95*-ALL
14
72108-94BK
RECEPTACLE, 8-way pin | 95*-ALL
15
72113-94BK
PLUG, 3-way socket | 95*-ALL
16
72119-94BK
PLUG, 12-way socket | 95*-ALL
17
72128-94GY
RECEPTACLE, 8-way pin | 95*-ALL
18
72139-94GY
PLUG, 12-way socket | 95*-ALL
19
72143-94
PIN LOCK, sec. 3-way | 95*-ALL
20
72144-94
PIN LOCK, sec. 4-way | 95*-ALL
21
72146-94
PIN LOCK, sec. 6-way | 95*-ALL
22
72148-94
PIN LOCK, sec. 8-way | 95*-ALL
23
72153-94
SOCKET LOCK, sec. 3-way | 95*-ALL
24
72159-94
SOCKET LOCK, sec. 12-way | 95*-ALL
25
72190-94
TERMINAL, pin | 95*-ALL
26
72191-94
TERMINAL, socket | 95*-ALL
27
72195-94
SEAL PIN | 95*-ALL
28
72198-94
ATTACHMENT CLIP, 8-way only | 95*-ALL
29
72199-94
ATTACHMENT CLIP | 95*-ALL
30
72221-94
CONNECTOR, plug, 3-way | 95*-ALL
31
72223-94
TERMINAL, female, 10-12 ga. | 95*-ALL
32
72224-94
TERMINAL, female, 14-16 ga. | 95*-ALL
33
72227-94
WIRE SEAL, 14 ga. | 95*-ALL
34
72229-94
SECONDARY LOCK, 3-way | 95*-ALL
35
72241-94A
RING TERMINAL, 10 ring, 14-18 gauge | 95*-ALL
36
72242-94
TERMINAL, 1/4in. ring w/ int. star, 10-12 ga. | 95*-ALL
38
72249-94
HEAT SHRINK TUBE, .3 x 1in. | 95*-ALL
39
72255-94
TERMINAL, 1/4in. ring w/ int. star, 18-20 ga. | 95*-ALL
40
72266-94
HEAT SHRINK TUBE, dual wall, .3 x 2in. | 95*-ALL
?41
72268-94
HEAT SHRINK TUBE, dual wall, .7 x 2in. | 95*-ALL
42
72283-94
REAR SEAL | 95*-ALL
43
74407-86A
BOOT oil sending unit | 95*-ALL
