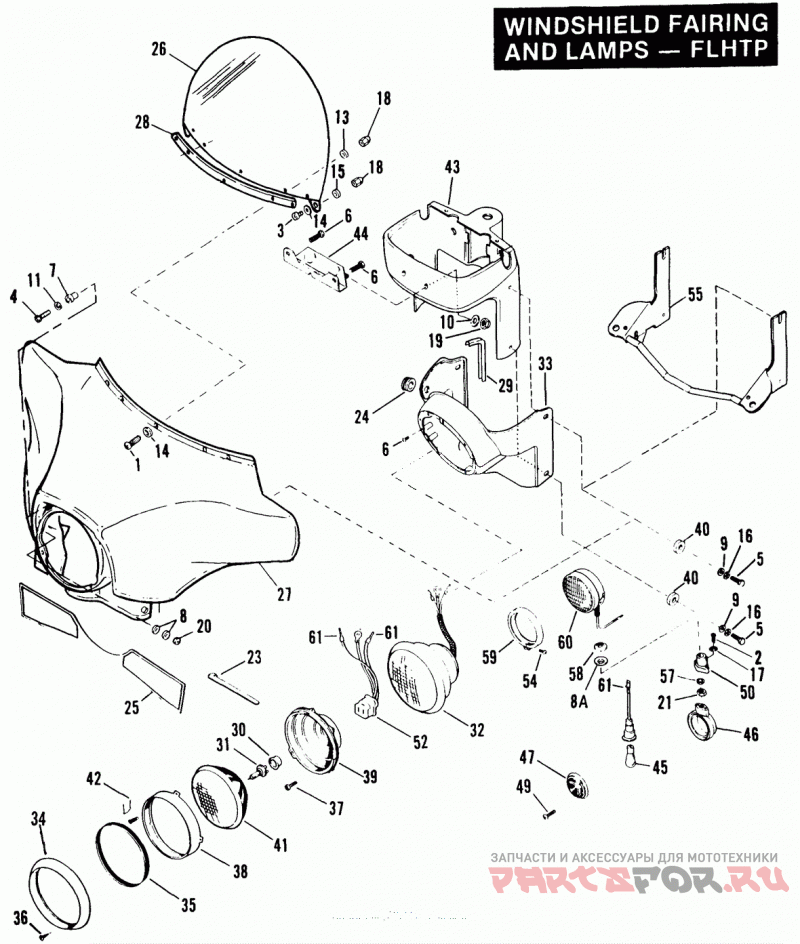

WINDSHIELD FAIRING AND LAMPS - FLHTP

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
2432
SCREW | 95*-FRG.
2
2647B
SCREW, 10-24 X 1/2 hex socket head (grade 8) | 95*-ALL
3
2726A
SCREW | 95*-FRG.
4
2806
SCREW, No. 6-32 X 3/4 Pozidriv pan hd. (Grade 2 steel) | 95*-FRG.
5
4041W
BOLT | 95*-FRG.
4036
BOLT, 5/16-24 X 1-1/2 hex. hd.(Grade 5 steel) | 95*-WND.
6
5209
SCREW, hi-lo | 95*-WND.
7
5210
WELL NUT | 95*-FRG.
8
6036
WASHER, 17/64 X 1 X 1/16 | 95*-ALL
8A
6072
WASHER, 3/8 X 1 1/4 X 5/64 | 95*-ALL
9
6702
WASHER, 5/16 X 11/16 X 1/16 | 95*-ALL
10
6703
WASHER, 1/4 X 5/8 X 1 /16 | 95*-WND.
11
6717
WASHER, No. 6 X 3/8 X 3/64 | 95*-FRG.
13
7008
WASHER | 95*-FRG.
14
7017
WASHER, 17/64 X 33/64 X 5/64 (black) | 95*-FRG.
15
7018
WASHER | 95*-FRG.
16
7041
LOCKWASHER, 5/16 | 95*-ALL
17
7069
LOCKWASHER, No. 10 | 95*-ALL
18
7653
ACORN NUT | 95*-FRG.
19
7682
LOCKNUT, 1/4-28 X 3/16 X 7/16 hex. | 95*-WND.
20
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex. | 95*-FRG.
21
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex. | 95*-ALL
23
10006
CABLE STRAP | 95*-ALL
24
11475
GROMMET | 95*-WND.
25
14128-86A
TRIM, lower fairing | 95*-FRG.
26
58187-86
WINDOW, fairing | 95*-FRG.
27
58198-86
FAIRING, outer (prime) | 95*-FRG.
28
58247-86
CUSHION TAPE, outer fairing | 95*-FRG.
29
61117-86
TRIM (rubber) | 95*-WND.
31
68329-03
BULB, halogen HB2/H-4 | 95*-ALL
32
67702-81C
HEADLAMP ASSEMBLY complete, w/ 22, 30, 31, 34, 36, 38, 39, 51, 56, 62, 63, 64 & 65 | 95*-ALL
33
67704-83
HEADLIGHT HOUSING (windshield) | 95*-WND.
34
67712-83B
DOOR chrome | 95*-ALL
35
67716-60C
GASKET headlamp door (used w/ 67702-81A) | 95*-ALL
36
67718-60A
SCREW, headlamp door | 95*-ALL
37
67724-71
ADJUSTING SCREW, headlamp | 95*-ALL
38
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic) | 95*-ALL
39
67001-08
RETAINING RING KIT, headlamp, w/ 67721-48 & 67732-48 (domestic) | 95*-ALL
40
67749-77
SPACER | 95*-WND
41
67755-81A
HEADLAMP, less bulb - w/ boot | 95*-ALL
42
67780-60A
SPRING, bottom | 95*-ALL
43
67800-93B
DASH PANEL SUPPORT | 95*-WND
44
67817-83
BRACKET, headlamp door | 95*-WND
45
68168-89A
BULB, tail lamp | 95*-ALL
46
68766-94
LAMP w/ wire, turn signal - 12V (amber) | 95*-ALL
47
68440-86
LENS, turn signal (amber) | 95*-ALL
49
68452-86
SCREW | 95*-ALL
50
68519-68A
MOUNTING BRACKET | 95*-ALL
52
68808-94
CONNECTOR, headlamp w/ wires | 95*-ALL
?53
68663-64G
PURSUIT LAMP ASSEMBLY red | 95*-ALL
68665-84F
PURSUIT LAMP ASSEMBLY blue | 95*-ALL
54
68672-38
SCREW, spotlamp molding | 95*-ALL
55
68684-86
SPOTLAMP BRACKET | 95*-ALL
57
68720-62
CLAMP BLOCK, pursuit lamps | 95*-ALL
58
68721-62
SWIVEL BLOCK | 95*-ALL
59
68725-62A
BEZEL RING, passing lamps | 95*-ALL
?160
68727-64D
PURSUIT LAMP sealed unit, 12V (red) | 95*-ALL
68728-64C
PURSUIT LAMP sealed unit, 12V (blue) | 95*-ALL
61
72039-71A
TERMINAL, pin | 95*-ALL
72191-94
TERMINAL, socket | 95*-ALL
76233-85
MICROPHONE JACK | 95*-WND
