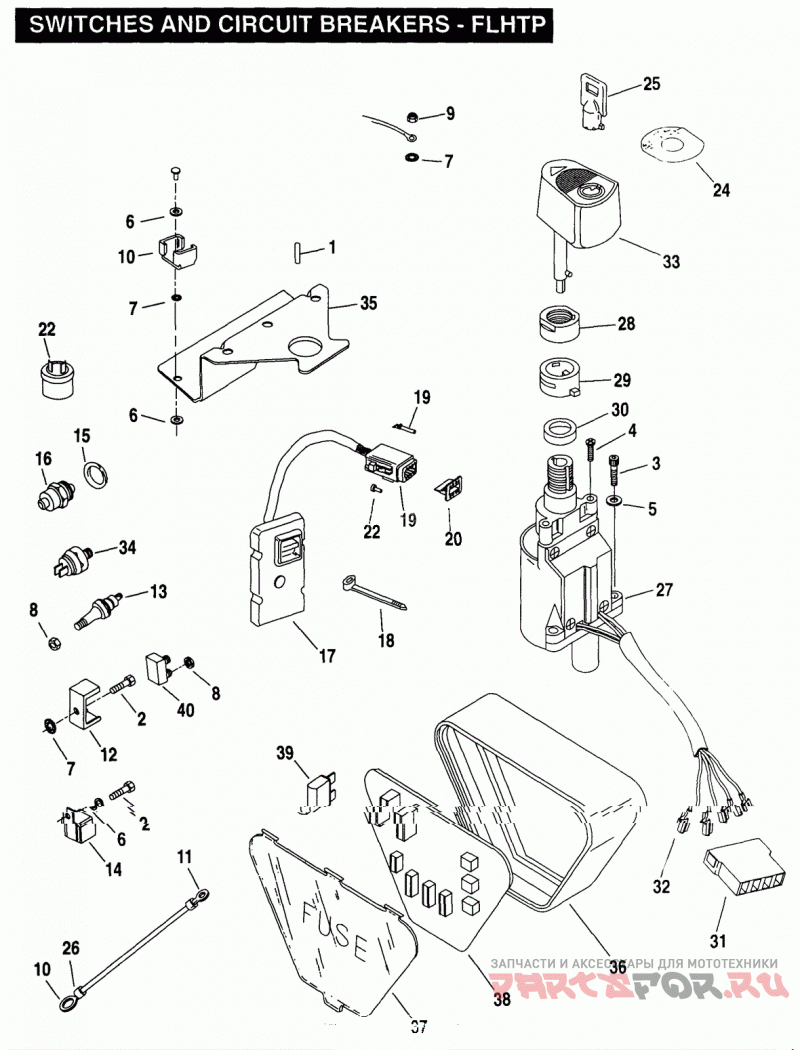

SWITCHES AND CIRCUIT BREAKERS - FLHTP

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
608
ROLL PIN | 95*-ALL
2
2523
SCREW, No. 8-32 X 1/2 hex washer hd. (self- tapping) | 95*-FRG.
3581
SCREW | 95*-WND
3
2647B
SCREW, 10-24 X 1/2 hex socket head (grade 8) | 95*-ALL
4
2734
SCREW | 95*-ALL
5
6150W
WASHER, 3/16 X 3/8 X 1/16 | 95*-ALL
6
6198
WASHER | 95*-ALL
7
7229W
LOCKWASHER, 1/4 internal/external tooth | 95*-ALL
8
7629
NUT, #10-32 X 3/16 X 3/8 hex. | 95*-ALL
9
7686
LOCKNUT, 1/4-20 X 5/16 X 7/16 hex. | 95*-ALL
10
9842
TERMINAL, 5/16in. ring type | 95*-ALL
11
9843
TERMINAL, #10 ring type | 95*-ALL
12
9952
CLIP, circuit breakers | 95*-ALL
13
26561-84
OIL PRESSURE SWITCH | 95*-ALL
14
31504-91B
RELAY | 95*-ALL
15
33043-80
WASHER, neutral indicator switch | 95*-ALL
16
33900-59C
SWITCH, neutral indicator | 95*-ALL
53562-93A
LOCK SET Complete | 95*-ALL
17
68570-94B
CANCELLER turn signals, w/ 16-20 | 95*-ALL
18
10065
CABLE STRAP | 95*-ALL
19
72138-94GY
PLUG, 8-way socket | 95*-ALL
20
72158-94
SOCKET LOCK, secondary 8-way | 95*-ALL
?21
72191-94
TERMINAL, socket | 95*-ALL
22
72195-94
SEAL PIN | 95*-ALL
?23
68563-04A
FLASHER pursuit | 95*-ALL
71427-93
DECAL, ignition switch | 95*-FRG.
26
72249-94
HEAT SHRINK TUBE | 95*-ALL
27
71526-93B
HOUSING ignition switch, w/ 28-33 | 95*-ALL
28
71543-93
NUT, ignition switch | 95*-ALL
29
71544-93
COLLAR, ignition switch | 95*-ALL
30
71545-93
SPACER, ignition switch | 95*-ALL
31
72206-94
CONNECTOR, receptacle, 4-way | 95*-ALL
32
72207-94
TERMINAL, female, 14 ga. | 95*-ALL
70586-93
CONNECTOR, splice 14-16 ga. (blue)(Not illustrated) | 95*-ALL
33
71536-93
KNOB, ignition switch | 95*-ALL
34
72023-51E
SWITCH KIT stop lamp | 95*-ALL
35
72334-94
MOUNTING BRACKET, circuit breakers | 95*-FRG.
72335-94
MOUNTING BRACKET, circuit breakers | 95*-WND.
36
72321-93
FUSE BOX | 95*-ALL
38
72329-94
FUSE BOARD, w/ 74591-94 & 74592-94 | 95*-ALL
39
74591-94
CIRCUIT BREAKER, 10 amp | 95*-ALL
74592-94
CIRCUIT BREAKER, 15 amp | 95*-ALL
40
74600-94
CIRCUIT BREAKER, 50 amp | 95*-ALL
