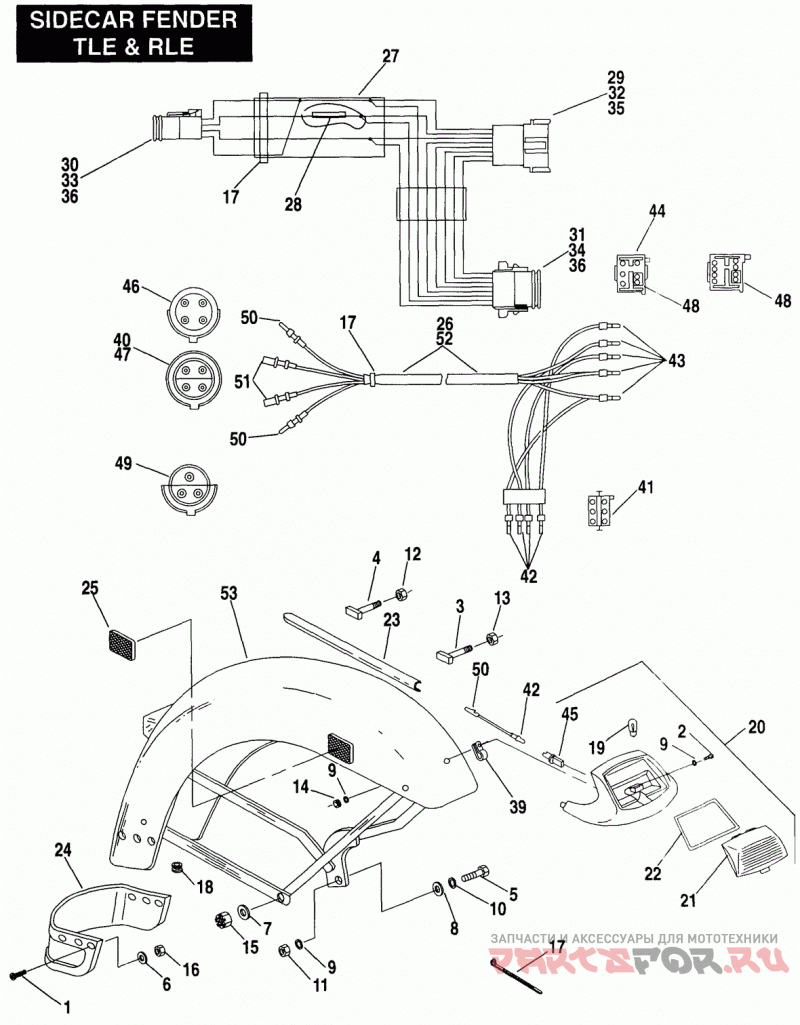

SIDECAR FENDER - RLE

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
2
2604
SCREW, No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2 steel) | 95*-HX
3
3560WA
BOLT No. 10-24 X 3/8 | 95*-HX
4
3561WC
BOLT No. 10-24 X 3/8 | 95*-HX
5
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel) | 95*-HX
7
6653A
WASHER, 5/8 X 1-5/16 X 3/32 | 95*-HX
9
7118
LOCKWASHER, No. 10 internal tooth | 95*-HX
10
7130W
LOCKWASHER, 3/8 internal tooth | 95*-HX
11
7601
FLANGE LOCKNUT, 3/8-16 | 95*-HX
12
7624
LOCKNUT, No. 10-24 X 1/4 X 3/8 hex. | 95*-HX
13
7629
NUT, #10-32 X 3/16 X 3/8 hex. | 95*-HX
14
7638
NUT, No. 10-32 X 1/8 X 3/8 hex.(Grade 2 steel) | 95*-HX
15
7823
CASTLE NUT, 5/8-18 X 3/8 X 15/16 hex. (Grade 2 steel) | 95*-HX
17
10006
CABLE STRAP | 95*-HX
10065
CABLE STRAP | 95*-HX
18
11410
GROMMET, tail lamp wiring | 95*-HX
19
53439-79
BULB, fender tip lamp | 95*-HX
20
59082-79
LAMP ASSEMBLY, fender tip | 95*-HX
21
59180-80
LENS, fender tip lamp | 95*-HX
22
59181-80
GASKET, fendet tip lamp lens | 95*-HX
23
59211-74A
SIDE TRIM STRIP | 95*-HX
25
59255-91
REFLECTOR (red) | 95*-HX
39
71795-63A
CLAMP | 95*-HX
40
72029-84
PLUG, four terminal | 95*-HX
41
72037-71
CONNECTOR, six socket | 95*-HX
42
72038-71A
TERMINAL, socket | 95*-HX
43
72039-71A
TERMINAL, pin | 95*-HX
44
72041-71
CONNECTOR, six pin | 95*-HX
45
72044-71A
SOCKET HOUSING | 95*-HX
46
72054-84
PLUG RECEPTACLE | 95*-HX
47
72057-84
PROTECTIVE PLUG (with sidecar removed) | 95*-HX
48
72275-74
CONNECTOR TAB, two terminal | 95*-HX
49
74521-77A
PLUG RECEPTACLE | 95*-HX
50
74536-77A
PIN, single socket | 95*-HX
51
74539-77A
SOCKET, single pin | 95*-HX
52
87027-85
WIRING HARNESS | 95*-HX
53
87901-83A
FENDER, sidecar (prime) | 95*-HX
