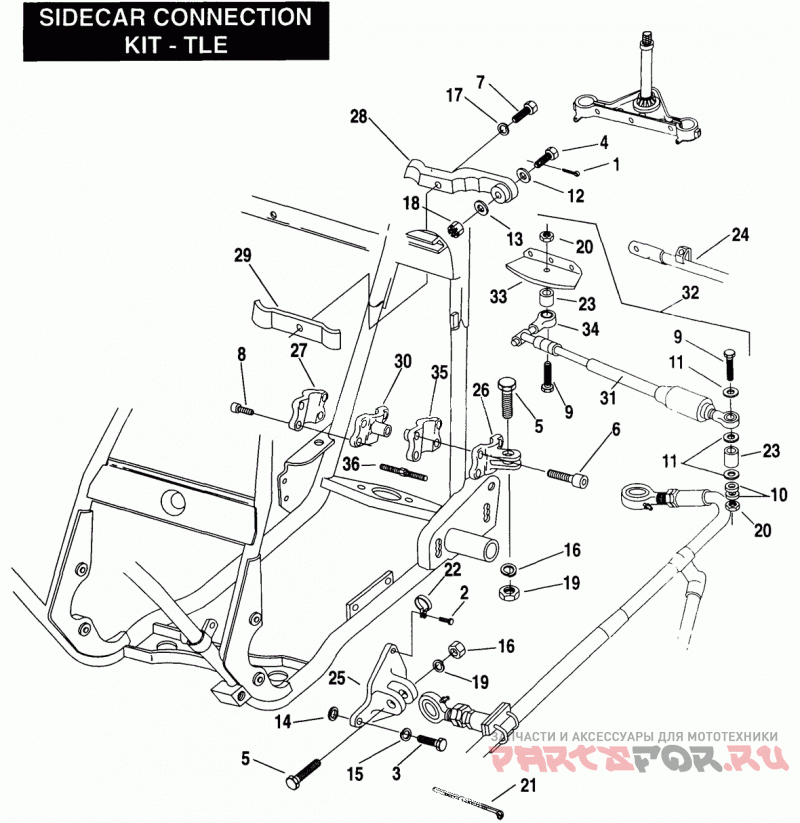

SIDECAR CONNECTION KIT - TLE

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
559
COTTER PIN | 95*-GX
2
3764
BOLT, 7/16-14 X 2 hex. hd. (Grade 5 steel) | 95*-GX
3
3782
BOLT, 7/16-14 X 1-1/4 hex. hd. (Grade 5 steel) | 95*-GX
4
3949
BOLT, 1/2-13 X 2-1/2 hex. hd. (Grade 5 steel) | 95*-GX
5
4045
BOLT, 3/4-10 X 2-3/4 hex. (Grade 8 steel) | 95*-GX
6
4357
SCREW, 3/8-16 X 1-3/4 knurled socket hd. (Grade 8 steel) | 95*-GX
7
4052
BOLT, 1/2-13 X 1-3/4 hex. (Grade 5 steel) | 95*-GX
8
4356
SCREW, 3/8-16 X 1-1/2hex socket hd. cap | 95*-GX
9
4420
BOLT, 3/8-16 X 2-3/4 hex. hd.(Grade 5 steel | 95*-GX
4720W
BOLT, 3/8-16 X 1 3/4 hex hd. cap | 95*-GX
10
6519
WASHER, 13/32 X 1-1/32 X 1/8 | 95*-GX
11
6701
WASHER, 3/8 X 13/16 X 1/16 | 95*-GX
12
6718
WASHER, 1/2 X 1-1/16 X 3/32 | 95*-GX
13
6723
WASHER, 17/32 X 1-1/2 X 9/64 | 95*-GX
14
6960
WASHER, 1/2 X 3/4 X .004 | 95*-GX
6961
WASHER, 1/2 X 3/4 X .007 | 95*-GX
6962
WASHER, 1/2 X 3/4 X .015 | 95*-GX
6963
WASHER, 1/2 X 3/4 X .031 | 95*-GX
15
7039
LOCKWASHER, 7/16 | 95*-GX
16
7043
LOCKWASHER, 3/4 | 95*-GX
17
7068
LOCKWASHER,1/2 | 95*-GX
18
7843
HEX NUT, 1/2-13 (slotted) | 95*-GX
19
7598
HEX NUT, 3/4-10 | 95*-GX
20
7775
LOCKNUT, 3/8-24 X 7/16 X 9/16 hex. | 95*-GX
21
10006
CABLE STRAP | 95*-GX
22
10036
CLAMP | 95*-GX
23
59938-72
SPACER, mounting | 95*-GX
24
87056-83B
BRACE, sidecar frame | 95*-GX
25
87114-93A
BRACKET ASSEMBLY rear | 95*-GX
26
87122-83A
MOUNTING BRACKET | 95*-GX
27
87123-83
MOUNTING BRACKET, lower front - left | 95*-GX
28
87131-83C
UPPER CONNECTION front | 95*-GX
29
87132-92
UPPER CONNECTION, rear | 95*-GX
30
87137-92
STABILIZER BRACKET, front | 95*-GX
31
87141-83
STEERING DAMPER | 95*-GX
32
87142-83
DAMPER MOUNTING KIT w/ 9, 11, 20 & 23 | 95*-GX
33
87143-83
BRACKET, steering damper | 95*-GX
34
87144-83
ROD END BALL JOINT | 95*-GX
35
87148-92
STABILIZER BRACKET, right | 95*-GX
36
87156-83
STABILIZER, front | 95*-GX
?37
87160-83
FRAME ASSEMBLY | 95*-GX
87166-93
CONNECTION KIT, sidecar | 95*-GX
