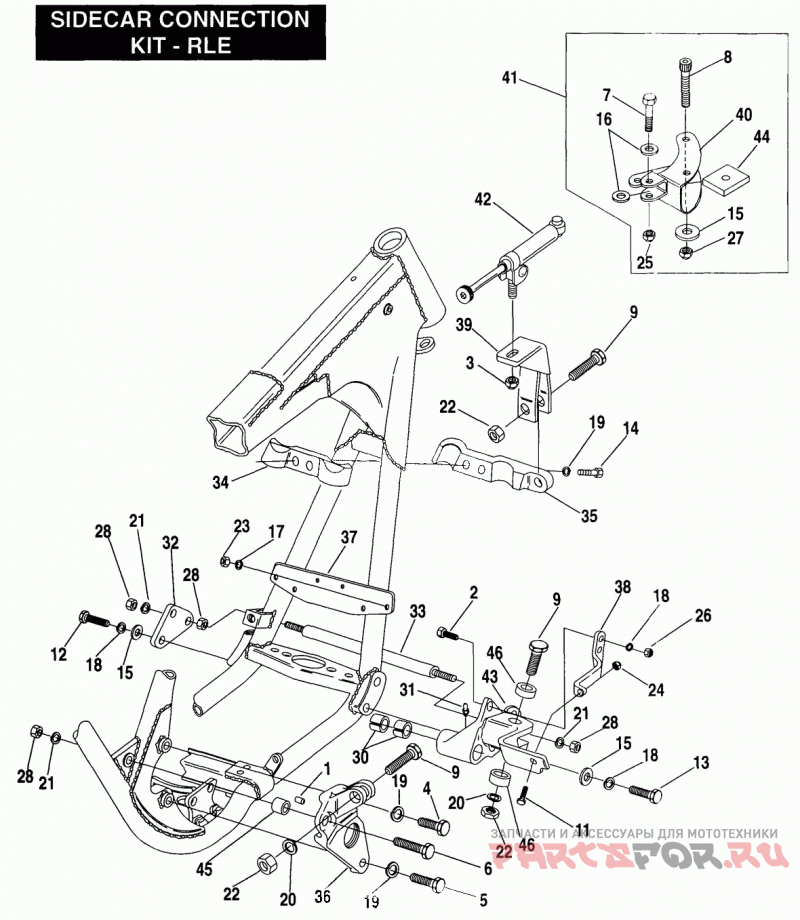

SIDECAR CONNECTION KIT - RLE

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
604
ROLL PIN | 95*-HX
2
2879W
BOLT, 3/8-16 X 1 hex. hd. (Grade 5 steel) | 95*-HX
3
3403
LOCKNUT, M8 X 7 X 12mm hex. | 95*-HX
4
3764
BOLT, 7/16-14 X 2 hex. hd. (Grade 5 steel) | 95*-HX
5
3769
BOLT, 7/16-14 X 1-1/2 hex. hd. (Grade 5 steel) | 95*-HX
6
3958
BOLT, 1/2-20 X 2-1/4 hex. hd.(Grade 5 steel) | 95*-HX
7
4041W
BOLT | 95*-HX
8
4030
SCREW | 95*-HX
9
4045
BOLT, 3/4-10 X 2-3/4 hex. (Grade 8 steel) | 95*-HX
11
4701
BOLT | 95*-HX
12
4716W
BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel) | 95*-HX
13
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel) | 95*-HX
14
4726
BOLT, 7/16-20 X 1-1/2 hex. hd.(Grade 5 steel) | 95*-HX
15
6701
WASHER, 3/8 X 13/16 X 1/16 | 95*-HX
16
6702
WASHER, 5/16 X 11/16 X 1/16 | 95*-HX
17
7036
LOCKWASHER, 1/4 | 95*-HX
18
7038
LOCKWASHER, 3/8 | 95*-HX
19
7039
LOCKWASHER, 7/16 | 95*-HX
20
7043
LOCKWASHER, 3/4 | 95*-HX
21
7068
LOCKWASHER,1/2 | 95*-HX
22
7598
HEX NUT, 3/4-10 | 95*-HX
23
7688
NUT, 1/4-20 X 7/32 X 7/16 hex.(Grade 2 steel) | 95*-HX
24
7725
LOCKNUT, 5/16-24 X 11/32 X 1/2 hex. | 95*-HX
25
7727
LOCKNUT | 95*-HX
26
7778
LOCKNUT, 3/8-16 X 7/16 X 9/16 hex. | 95*-HX
27
7783
NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel) | 95*-HX
28
7845
HEX NUT, 1/2-20 X 3/4 | 95*-HX
45452-87
FORK BRACE (chrome)(Not illustrated) | 95*-HX
30
47247-83
BUSHING | 95*-HX
31
83459-09
FITTING lubrication | 95*-HX
32
87007-85
ADJUSTER PLATE, left front | 95*-HX
87008-88
SIDECAR CONNECTION KIT | 95*-HX
33
87010-85
STABLIZER, front | 95*-HX
34
87011-85
UPPER CONNECTION rear | 95*-HX
35
87013-85
UPPER CONNECTION, front | 95*-HX
36
87015-85
BRACKET ASSEMBLY, rear - w/ #1 | 95*-HX
37
87018-85
BRACKET, brake reservoir | 95*-HX
38
87019-85
BRACKET, brake stop | 95*-HX
39
87023-88
DAMPER MOUNTING KIT | 95*-HX
40
87022-88
MOUNTING BRACKET | 95*-HX
41
87023-88
DAMPER MOUNTING KIT | 95*-HX
42
87024-85
STEERING DAMPER | 95*-HX
43
87025-85A
BRACKET, lower front - w/ #30, 31 & 46 | 95*-HX
44
87048-88
SPACER | 95*-HX
45
90480-85
SPACER, rear mount | 95*-HX
46
90481-91
SPACER | 95*-HX
