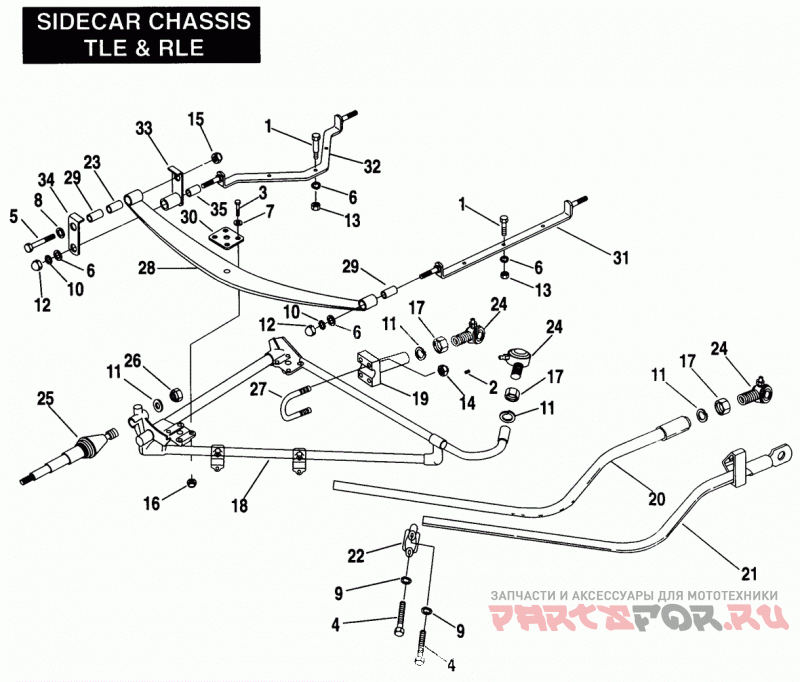

SIDECAR CHASSIS - RLE

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
2887WA
SCREW, 5/16-18 X 1-3/4 hex cap (grade 5) | 95*HX
2
3233
SET SCREW, 1/4-28 X 1/4 socket hd. | 95*HX
3
3764
BOLT, 7/16-14 X 2 hex. hd. (Grade 5 steel) | 95*HX
4
3946
BOLT | 95*HX
5
4401W
BOLT, 3/8-24 X 2-3/4 hex. hd.(Grade 5 steel) | 95*HX
6
6238
WASHER, 11/32 X 1-1/8 X 5/64 | 95*HX
8
6416
WASHER, 3/8 X 1 X 5/64 | 95*HX
9
7039
LOCKWASHER, 7/16 | 95*HX
10
7041
LOCKWASHER, 5/16 | 95*HX
11
7043
LOCKWASHER, 3/4 | 95*HX
12
7736
ACORN NUT, 5/16-24 X 19/32 X 1/2 hex. | 95*HX
13
7748W
NUT, 5/16-18 X 1/4 X 1/2 hex.(Grade 2 steel) | 95*HX
14
7775
LOCKNUT, 3/8-24 X 7/16 X 9/16 hex. | 95*HX
15
7780
LOCKNUT,flange 3/8-24 X 13/32 X 11/16 hex. | 95*HX
16
7827W
LOCKNUT, 7/16-14 X 21/64 X 5/8 hex. | 95*HX
17
7855W
JAM NUT, 3/4-16 X 7/16 X 1-1/8 hex. (Grade 2 steel) | 95*HX
18
87006-85
FRAME ASSEMBLY, sidecar | 95*HX
19
87014-85
REAR MOUNTING ASSEMBLY | 95*HX
20
87030-85
BRACE, sidecar frame | 95*HX
22
87117-36A
LOWER CLAMP | 95*HX
23
87120-79
SPACER, turn signal & spring shackle | 95*HX
24
87159-83
ROD END, sidecar mounting (2; 3-HX) | 95*HX
25
87435-83
AXLE | 95*HX
26
87444-33
AXLE NUT, inside sidecar frame | 95*HX
27
87701-79
U-BOLT, rear mounting bracket | 95*HX
28
88100-94A
SIDECAR SPRING single leaf | 95*HX
29
88174-94
SPRING BUSHING | 95*HX
30
88175-94
SPRING PLATE | 95*HX
31
88261-36
SUPPORT ROD, front | 95*HX
32
88264-36
SUPPORT ROD, rear | 95*HX
33
88301-79
SHACKLE PLATE w/ bushing, spring | 95*HX
34
88302-79
SHACKLE PLATE, spring-outer | 95*HX
35
88314-37
BUSHING, shackle plate | 95*HX
