ELECTRONIC IGNITION SYSTEM для мотоциклов Harley Davidson FXRP EFLS Police Low Rider (1995) (1995)

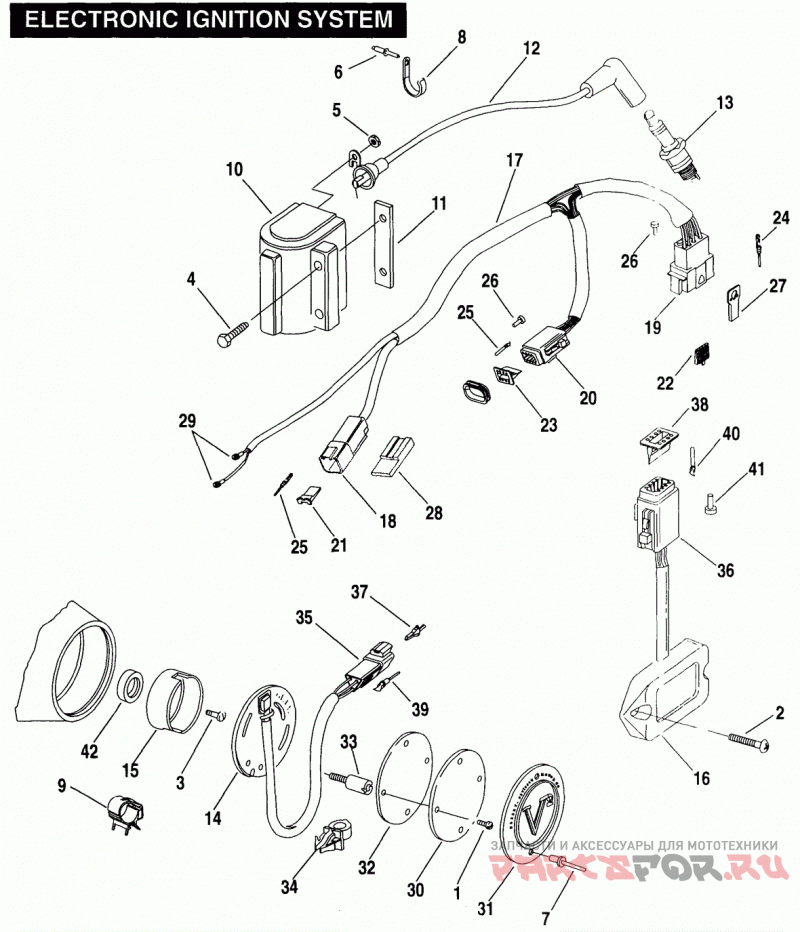

ELECTRONIC IGNITION SYSTEM

Harley Davidson FXRP EFLS Police Low Rider (1995)

oem код

название

цена

1601

SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel) | 95*-ALL

2611C

BOLT, No. 10-32 X 3/4 hex. washer hd. (Grade 5 steel) | 95*-ALL

3993

BOLT, 1/4-20 X 1-1/4 hex. hd.(Grade 5 steel) | 95*-ALL

7629

NUT, #10-32 X 3/16 X 3/8 hex. | 95*-ALL

8483A

RIVET | 95*-ALL

8699

RIVET, ignition module | 95*-ALL

10092

CLAMP | 95*-ALL

10149

CLIP, T-stud | 95*-ALL

31614-83A

IGNITION COIL | 95*-ALL

31727-85

PLATE, nut | 95*-ALL

31992-91A

SPARK PLUG CABLE rear cylinder | 95*-ALL

31994-91A

SPARK PLUG CABLE front cylinder | 95*-ALL

32400-94A

SENSOR ASSEMBLY w/ 72190-94 | 95*-ALL

32402-83

ROTOR | 95*-ALL

32426-94

IGNITION MODULE w/ # 36,38,40 & 41 | 95*-ALL

32435-94

IGNITION WIRING HARNESS - includes the following: | 95*-ALL

72102-94BK

RECEPTACLE, 2-way pin | 95*-ALL

72108-94BK

RECEPTACLE, 8-way pin | 95*-ALL

72138-94GY

PLUG, 8-way socket | 95*-ALL

72142-94

PIN LOCK, sec., 2-way | 95*-ALL

72148-94

PIN LOCK, sec., 8-way | 95*-ALL

72158-94

SOCKET LOCK, secondary, 8-way | 95*-ALL

72190-94

TERMINAL, pin | 95*-ALL

72191-94

TERMINAL, socket | 95*-ALL

72195-94

SEAL PIN | 95*-ALL

72198-94

ATTACHMENT CLIP (8-way) | 95*-ALL

72199-94

ATTACHMENT CLIP | 95*-ALL

72241-94A

RING TERMINAL, 10 ring, 14-18 gauge | 95*-ALL

72249-94

HEAT SHRINK TUBE (Not illustrated) | 95*-ALL

72266-94

HEAT SHRINK TUBE, dual wall (Not illustrated) | 95*-ALL

32504-80A

COVER inner | 95*-ALL

32524-83

TIMER COVER, outer | 95*-ALL

32591-80

GASKET, timer cover | 95*-ALL

32606-82

SCREW, timer cover | 95*-ALL

70345-84

RETAINER, wire | 95*-ALL

72103-94BK

RECEPTACLE - three-way | 95*-ALL

72118-94BK

PLUG, eight-way socket | 95*-ALL

72143-94

SECONDARY LOCK, three-way receptacle | 95*-ALL
