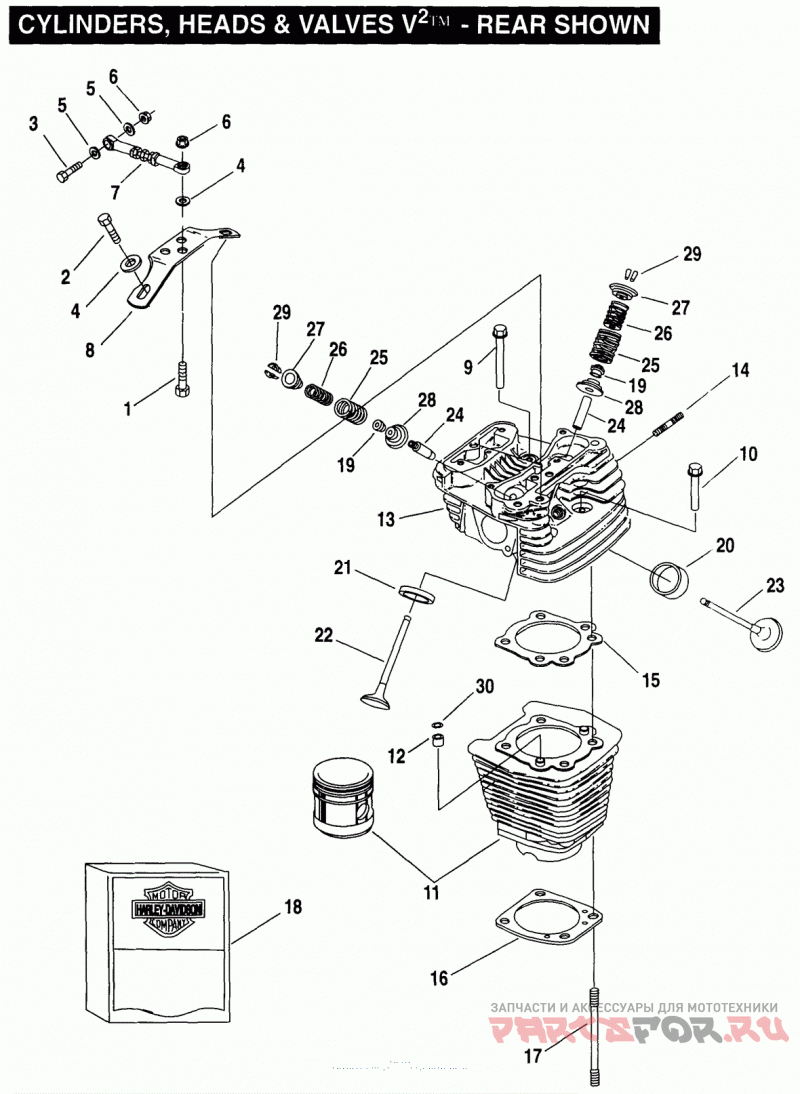

CYLINDERS, HEADS & VALVES V(2)(TM) - REAR SHOWN

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
4350A
SCREW, 3/8-16 X 1-1/2 hex. soc. hd. | 95*-ALL
2
4716W
BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel) | 95*-ALL
3
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel) | 95*-ALL
4
6019
WASHER, 3/8 X 29/32 X 1/16 | 95*-ALL
5
6701
WASHER, 3/8 X 13/16 X 1/16 | 95*-ALL
6
7601
FLANGE LOCKNUT, 3/8-16 | 95*-ALL
16134-95
ENGINE ASM., complete (1340 cc) (C & BW) | 95*-ALL
7
16219-79C
STABILIZER LINK top | 95*-ALL
8
16242-90
BRACKET, engine mounting | 95*-ALL
9
16478-85A
SCREW, internal thread | 95*-ALL
10
16480-92A
SCREW, internal thread, 1-7/8 in. long | 95*-ALL
11
16512-86A
CYLINDER w/piston (BW) | 95*-ALL
12
16573-83A
INSERT cylinder head stud | 95*-ALL
13
16692-92A
HEAD, front cylinder w/ guides & seats (BW) | 95*-ALL
16696-92A
HEAD, rear cylinder w/ guides & seats (BW) | 95*-ALL
14
16715-83
STUD, exhaust port | 95*-ALL
15
16770-84F
GASKET cylinder head | 95*-ALL
16
16774-86D
GASKET, cylinder base | 95*-ALL
17
16837-85C
STUD, cylinder base | 95*-ALL
18
17040-92A
GASKET KIT, top overhaul | 95*-ALL
17041-92A
GASKET KIT, engine overhaul | 95*-ALL
19
18001-83B
SEAL, valve | 95*-ALL
20
18011-86
INSERT, exhaust valve seat | 95*-ALL
18124-83
INSERT, exhaust valve seat - 0.005 O.S. | 95*-ALL
21
18020-83
INSERT, intake valve seat | 95*-ALL
18134-83
INSERT, intake valve seat - 0.005 O.S. | 95*-ALL
22
18074-83B
INTAKE VALVE | 95*-ALL
18076-83
INTAKE VALVE, 0.03 short | 95*-ALL
23
18082-83A
EXHAUST VALVE | 95*-ALL
18087-83
EXHAUST VALVE, 0.03 short | 95*-ALL
24
18101-83D
VALVE GUIDE intake & exhaust | 95*-ALL
18130-83D
VALVE GUIDE, intake & exhaust - 0.001 O.S. | 95*-ALL
18131-83D
VALVE GUIDE, intake & exhaust - 0.003 O.S. | 95*-ALL
18133-83B
VALVE GUIDE, intake & exhaust - 0.002 O.S. | 95*-ALL
25
18201-83
VALVE SPRING, outer | 95*-ALL
26
18202-83
VALVE SPRING, inner | 95*-ALL
27
18219-83A
COLLAR, valve spring - upper | 95*-ALL
28
18222-83
COLLAR, valve spring - lower | 95*-ALL
29
18229-83A
RETAINER valve collar | 95*-ALL
30
26432-76A
O-RING, cylinder stud insert | 95*-ALL
