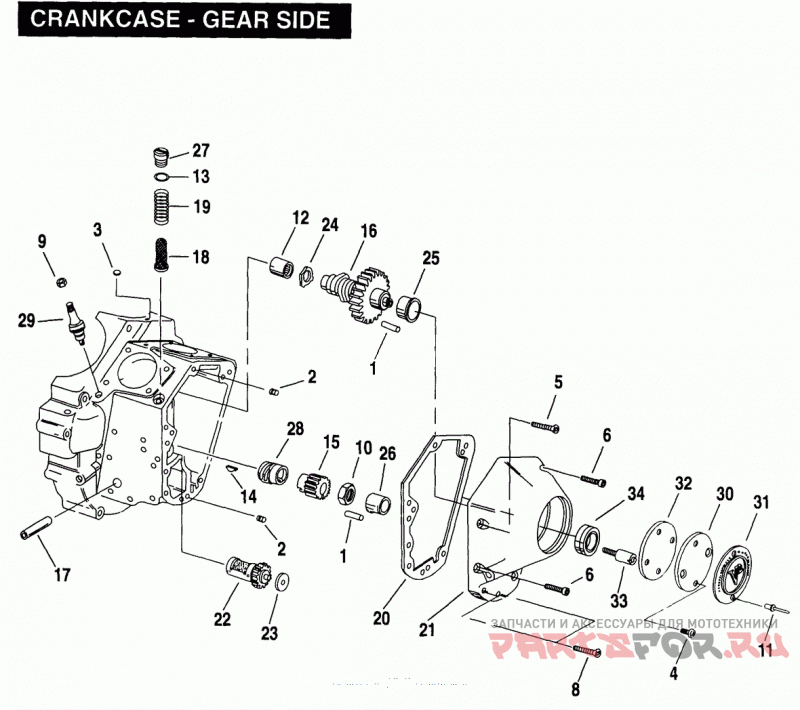

CRANKCASE - GEAR SIDE

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
275
DOWEL PIN | 95*-ALL
2
358
DOWEL PIN | 95*-ALL
3
653
PLUG, crankcase | 95*-ALL
4
1601
SCREW, No. 8-32 X 1/2 Pozidrivflat ctsk. hd. (Grade 2 steel) | 95*-ALL
5
3480A
SCREW, 1/4-20 X 1-3/4 knurled socket hd. (Grade 8 steel) | 95*-ALL
6
4813A
SCREW, 1/4-20 X 1-3/8 knurled socket hd. (w/lockpatch) | 95*-ALL
?7
4740A
SCREW, 1/4-20 X 1-1/4 knurled socket hd. (w/lockpatch) | 95*-ALL
9
7629
NUT, #10-32 X 3/16 X 3/8 hex. | 95*-ALL
10
7916A
JAM NUT, 5/8-18 (locking) | 95*-ALL
11
8699
RIVET, ignition cover | 95*-ALL
12
9058A
NEEDLE BEARING crankcase cam cover | 95*-ALL
13
11105
O-RING | 95*-ALL
14
11219
T-KEY | 95*-ALL
15
24040-93
PINION GEAR, 1.4850-53 pd. (orange) | 95*-ALL
24041-93
PINION GEAR, 1.4846-49 pd. (white) | 95*-ALL
24042-93
PINION GEAR, 1.4842-45 pd. (yellow) | 95*-ALL
24043-93
PINION GEAR, 1.4838-41 pd. (red) | 95*-ALL
24044-93
PINION GEAR, 1.4834-37 pd. (blue) | 95*-ALL
24045-93
PINION GEAR, 1.4830-33 pd. (green) | 95*-ALL
24046-93
PINION GEAR, 1.4826-29 pd. (black) | 95*-ALL
16
24586-93
SET OF CAM & PINION GEARS (matched) | 95*-ALL
17
24641-36
BUSHING, oil pump shaft | 95*-ALL
18
24981-70
OIL SCREEN, crankcase | 95*-ALL
19
24982-70
SPRING, oil screen | 95*-ALL
20
25225-93B
GASKET, gear cover | 95*-ALL
21
25256-93A
GEAR COVER (chrome) | 95*-ALL
22
25310-82A
BREATHER VALVE GEAR | 95*-ALL
23
25320-82
THRUST WASHER, brthr valve - 0.130in. thk. | 95*-ALL
25321-82
THRUST WASHER, brthr valve - 0.135in. thk. | 95*-ALL
25322-82
THRUST WASHER, brthr valve - 0.140in. thk. | 95*-ALL
25323-82
THRUST WASHER, brthr valve - 0.145in. thk. | 95*-ALL
25325-82
THRUST WASHER, brthr valve - 0.150in. thk. | 95*-ALL
25326-82
THRUST WASHER, brthr valve - 0.155in. thk. | 95*-ALL
25327-82
THRUST WASHER, brthr valve - 0.160in. thk. | 95*-ALL
25328-82
THRUST WASHER, brthr valve - 0.165in. thk. | 95*-ALL
24
25550-57A
THRUST WASHER, cam gear | 95*-ALL
25
25581-70
BUSHING, gear cover | 95*-ALL
26
25582-93
BUSHING, gear cover pinion shaft | 95*-ALL
27
26263-80
PLUG, oil screen | 95*-ALL
28
26354-93
DRIVE GEAR, oil pump | 95*-ALL
29
26561-84
OIL PRESSURE SWITCH | 95*-ALL
30
32504-80A
COVER inner | 95*-ALL
31
32524-83
TIMER COVER | 95*-ALL
32
32591-80
GASKET, ignition cover | 95*-ALL
33
32606-82
SCREW | 95*-ALL
34
83162-51
OIL SEAL, bearing | 95*-ALL
