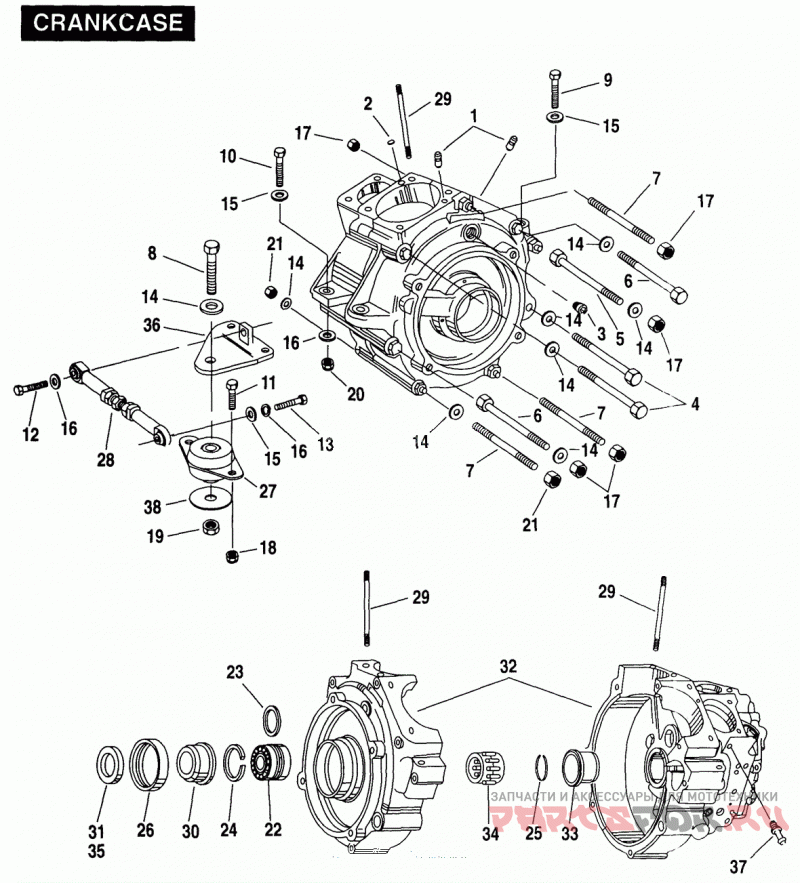

Картер двигателя

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
358
DOWEL PIN | 95*-ALL
2
653
EXPANSION PLUG | 95*-ALL
3
720
PLUG, timing hole | 95*-ALL
4
3427
BOLT, 5/16-18 X 3-1/2 hex. hd. (Grade 5 steel) | 95*-ALL
5
3430
BOLT | 95*-ALL
6
3504
BOLT | 95*-ALL
7
3506
STUD, 5/16-24 X 5-3/4 hex. hd.(Grade 5 steel) | 95*-ALL
8
3512
BOLT, 3/8-24 X 3-1/4 hex. hd. (chrome) | 95*-ALL
9
3528
BOLT, 3/8-16 X 3-1/4 hex hd.(Grade 8 steel) | 95*-ALL
10
3554
BOLT, 3/8-16 X 1-3/4 hex hd. | 95*-ALL
11
4319
BOLT, 3/8-24 X 1 hex. hd.(Grade 5 steel) | 95*-ALL
12
4716W
BOLT, 3/8-16 X 1-1/4 hex. hd.(Grade 5 steel) | 95*-ALL
13
4721
BOLT, 3/8-16 X 1-1/2 hex. hd.(Grade 5 steel) | 95*-ALL
14
6016
WASHER, 11/32 X 11/16 X 1/16 | 95*-ALL
15
6019
WASHER, 3/8 X 29/32 X 1/16 | 95*-ALL
16
7038
LOCKWASHER, 3/8 | 95*-ALL
17
7593
FLANGE NUT, 5/16-24 | 95*-ALL
18
7780
LOCKNUT,flange 3/8-24 X 13/32 X 11/16 hex. | 95*-ALL
19
7782
NUT | 95*-ALL
20
7783
NUT, 3/8-16 X 5/16 X 9/16 hex.(Grade 2 steel) | 95*-ALL
21
7883
NUT 5/16-24 X 1-1/16 hex | 95*-ALL
22
9028
BEARING ASM., sprocket shaft | 95*-ALL
23
9110
SHIM, brg. asm. 0.0905 - .0895in. | 95*-ALL
9120
SHIM, brg. asm. 0.0925 - .0915in. | 95*-ALL
9121
SHIM, brg. asm. 0.0945 - .0935in. | 95*-ALL
9122
SHIM, brg. asm. 0.0965 - .0955in. | 95*-ALL
9123
SHIM, brg. asm. 0.0985 - .0975in. | 95*-ALL
9124
SHIM, brg. asm. 0.1005 - .0995in. | 95*-ALL
9125
SHIM, brg. asm. 0.1025 - .1015in. | 95*-ALL
9126
SHIM, brg. asm. 0.1045 - .1035in. | 95*-ALL
9127
SHIM, brg. asm. 0.1065 - .1055in. | 95*-ALL
9128
SHIM, brg. asm. 0.1085 - .1075in. | 95*-ALL
9129
SHIM, brg. asm. 0.1105 - .1095in. | 95*-ALL
9130
SHIM, brg. asm. 0.1125 - .1115in. | 95*-ALL
9131
SHIM, brg. asm. 0.1145 - .1135in. | 95*-ALL
9132
SHIM, brg. asm. 0.1165 - .1155in. | 95*-ALL
9133
SHIM, brg. asm. 0.1185 - .1175in. | 95*-ALL
9134
SHIM, brg. asm. 0.1205 - .1195in. | 95*-ALL
24
9028
BEARING ASM., main - left side of crankshaft | 95*-ALL
25
11177A
RETAINING RING | 95*-ALL
26
12026B
OIL SEAL | 95*-ALL
27
16207-79D
ENGINE MOUNT front | 95*-ALL
28
16219-79C
STABILIZER LINK top | 95*-ALL
29
16837-85C
STUD, cylinder base | 95*-ALL
30
24002-70
SPACER, sprocket shaft | 95*-ALL
31
24032-70
SPACER, sprocket shaft - 0.060in. thk. | 95*-ALL
24033-70
SPACER, sprocket shaft - 0.090in. thk. | 95*-ALL
24034-70
SPACER, sprocket shaft - 0.120in. thk. | 95*-ALL
24035-70
SPACER, sprocket shaft - 0.150in. thk. | 95*-ALL
24036-70
SPACER, sprocket shaft - 0.180in. thk. | 95*-ALL
24037-70
SPACER, sprocket shaft - 0.210in. thk. | 95*-ALL
32
24571-93
SET OF CRANKCASES (black wrinkle) | 95*-ALL
33
24599-58B
BUSHING, right crankcase - std. | 95*-ALL
24600-58B
BUSHING, right crankcase - 0.002in. O.S. O.D. | 95*-ALL
24601-58B
BUSHING, right crankcase - 0.005in. O.S. O.D. | 95*-ALL
34
24626-87A
BEARING SET, gear side (white/grey) | 95*-ALL
24641-87A
BEARING SET, gear side(red) | 95*-ALL
24643-87A
BEARING SET, gear side(blue) | 95*-ALL
35
35850-84
SPACER, sprocket shaft - 0.010in. thk. | 95*-ALL
35851-84
SPACER, sprocket shaft - 0.020in. thk. | 95*-ALL
35852-84
SPACER, sprocket shaft - 0.030in. thk. | 95*-ALL
36
47159-79A
BRACKET, front engine mount | 95*-ALL
37
63533-41A
FITTING | 95*-ALL
38
96210-80A
WASHER | 95*-ALL
