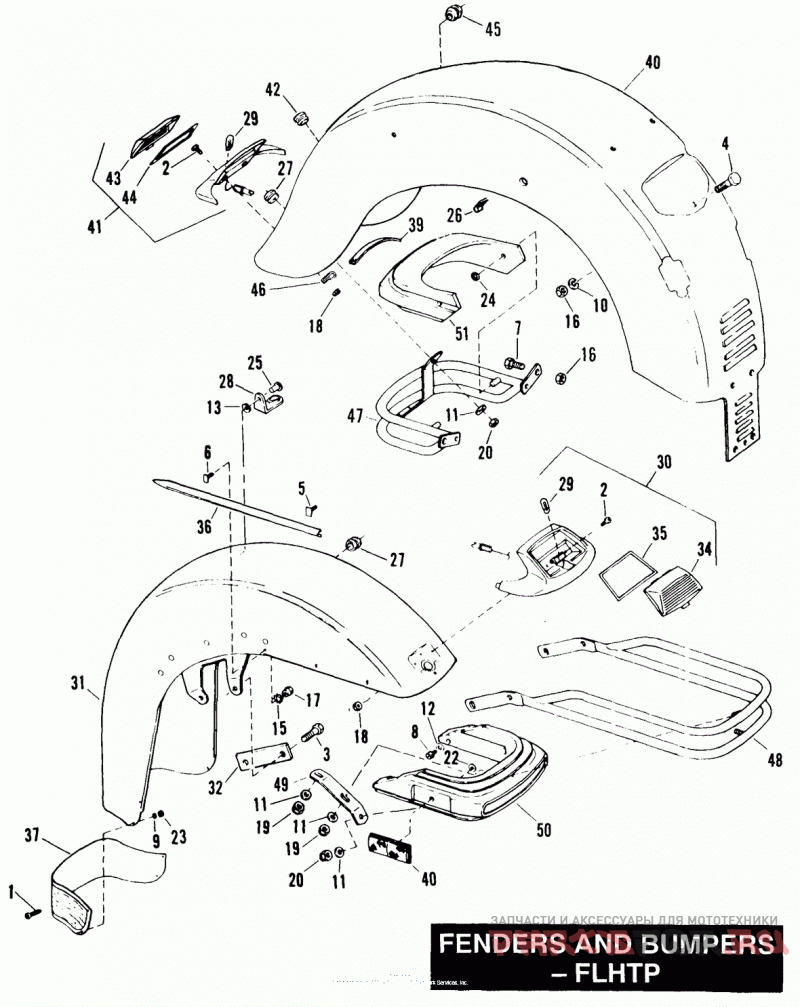

FENDERS AND BUMPERS - FLHTP

Harley Davidson FXRP EFLS Police Low Rider (1995)

Harley Davidson
#oem кодцена
1
2531
SCREW, No. 4-40 X 5/16 Pozidriv pan hd. (Grade 2 steel) | 95*-ALL
2
2604
SCREW, No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2 steel) | 95*-ALL
3
3462
BOLT, 5/16-18 X 1-1/4 hex. hd. (Grade 8 steel) | 95*-ALL
4
3546
BOLT, 5/16-18 X 5/8 hex. hd. (flange lock) | 95*-ALL
5
3560WA
BOLT No. 10-24 X 3/8 | 95*-ALL
6
3561WC
BOLT No. 10-24 X 3/8 | 95*-ALL
7
3987
BOLT, 5/16-18 X 3/4 hex. hd.(Grade 5 steel) | 95*-ALL
8
4091
BOLT, No. 10-24 X 1/2 hex. washer hd. (self-tapping) | 95*-ALL
9
6335
WASHER, #4 X 5/16 X 1/32 | 95*-ALL
10
6702
WASHER, 5/16 X 11/16 X 1/16 | 95*-ALL
11
6703
WASHER, 1/4 X 5/8 X 1 /16 | 95*-ALL
12
6716
WASHER, No. 10 X 1/2 X 3/64 | 95*-ALL
13
7036
LOCKWASHER, 1/4 | 95*-ALL
15
7220
LOCKWASHER, No. 10 external tooth | 95*-ALL
16
7531
FLANGE LOCKNUT, 5/16-18 X 9/32 X 1/2 hex. | 95*-ALL
17
7624
LOCKNUT, No. 10-24 X 1/4 X 3/8 hex. | 95*-ALL
18
7629
NUT, #10-32 X 3/16 X 3/8 hex. | 95*-ALL
19
7682
LOCKNUT, 1/4-28 X 3/16 X 7/16 hex. | 95*-ALL
20
7683
LOCKNUT, 1/4-28 X 5/16 X 7/16 hex. | 95*-ALL
22
8126A
SPEED NUT, 3/16 dia. stud size | 95*-ALL
24
8135B
SPEED NUT, 1/4 dia. stud size | 95*-ALL
25
8505
RIVET | 95*-ALL
26
10059A
CLAMP | 95*-ALL
27
11437
GROMMET, wiring harness | 95*-ALL
28
38622-87
GUIDE, speedometer cable | 95*-ALL
29
53439-79
BULB, fender tip lamp | 95*-ALL
30
68706-94A
LAMP ASSEMBLY front fender, w/ 29, 34 & 35 | 95*-ALL
31
59093-87B
FRONT FENDER prime | 95*-ALL
32
59166-80
LOCKPLATE | 95*-ALL
34
59180-80
LENS, front fender lamp | 95*-ALL
35
59181-80
GASKET, front fender lamp lens | 95*-ALL
36
59211-74A
SIDE TRIM STRIP | 95*-ALL
37
59231-86
TRIM, front fender- lower | 95*-ALL
?38
59261-91
REFLECTOR, (amber) | 95*-ALL
40
59579-91A
REAR FENDER louvered (prime) | 95*-ALL
41
59658-79A
LAMP ASSEMBLY rear fender | 95*-ALL
42
67070-76
GROMMET | 95*-ALL
43
68046-79
LENS, rear fender lamp | 95*-ALL
44
68047-79
GASKET, rear lamp lens | 95*-ALL
45
67266-94
BUSHING, nylon | 95*-ALL
46
71795-63A
CLAMP | 95*-ALL
47
91013-79A
REAR BUMPER ASSEMBLY | 95*-ALL
91023-79A
RAIL rear bumper | 95*-ALL
48
91085-83D
FRONT BUMPER ASSEMBLY | 95*-ALL
49
91090-77A
BRACKET, front bumper | 95*-ALL
50
91107-77C
BUMPER CUSHION front | 95*-ALL
51
91123-77
BUMPER CUSHION, rear | 95*-ALL
