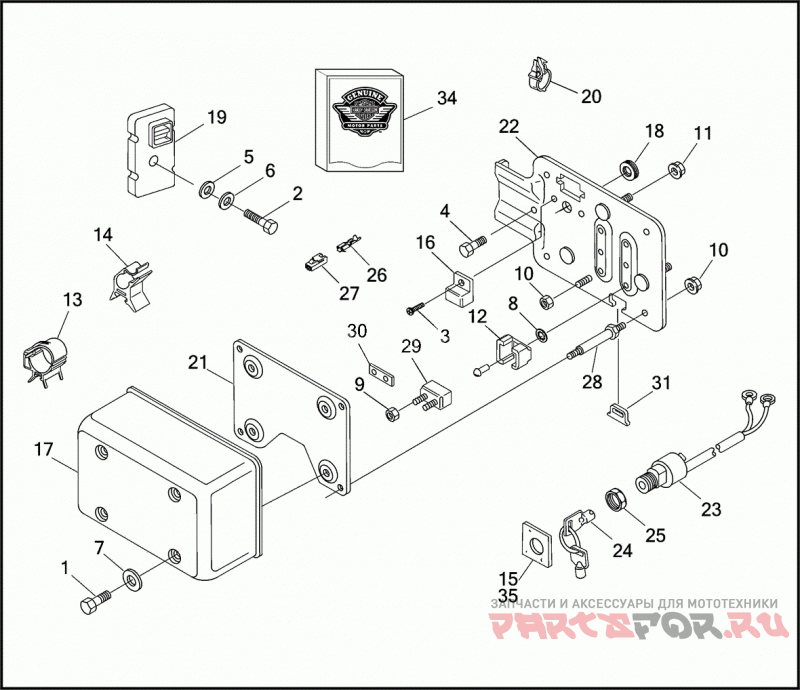

SWITCHES & CIRCUIT BREAKERS - 1995

Harley Davidson FXDS CONV 1GGL DYNA SUPER GLIDE CONVERTIBLE (1995)

Harley Davidson
#oem кодцена
1
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
2
3993
BOLT 1/4-20 X 1-1/4 HEX HD. (GRADE 5)
3
4091
SCREW NO. 10-24 X 1/2 HEX HD., W/WASHER, SELF-TAPPING (ZINC)
4
4328
SCREW 5/16 X 3/4 HEX HD., W/WASHER, SELF-TAPPING
5
6035A
WASHER 1/4 X 1-1/4 X 1/8 NEOPRENE
6
6036
WASHER 17/64 X 1 X 1/16
7
6099
WASHER 1/4 X 7/16 X 1/16
8
7229W
LOCKWASHER 1/4 INTERNAL/EXTERNAL TOOTH
9
7629
NUT NO. 10-32 X 3/8 KEPS
10
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
11
7796
NUT 5/16-18 X 1/4 EXTERNAL-TOOTH WASHER (GRADE 2)
12
9952
Зажим
13
10108
CLIP BACKBONE, IGNITION SWITCH WIRES
14
10130
CLIP BACKBONE, IGNITION SWITCH WIRES
15
14117-94A
DECAL IGNITION SWITCH
16
31504-91B
RELAY STARTER
17
66333-90
COVER ELECTRICAL PANEL (CHROME)
18
90483-85
Уплотнитель резиновый
19
68537-89G
TURN SIGNAL CANCELLER
20
70347-84
RETAINER WIRE
21
70984-90A
BRACKET IGNITION MODULE
22
70987-90B
ELECTRICAL PANEL
23
71428-90B
IGNITION SWITCH
25
71555-90
FACE NUT
26
72291-94
TERMINAL FEMALE SPADE, 14-16 GAUGE
27
72295-94
HOUSING STARTER CONNECTION
28
72342-90A
STAND OFF
29
74589-73
CIRCUIT BREAKER 15 AMP
29
74599-77B
CIRCUIT BREAKER 30 AMP, BATTERY
30
74598-73
CONNECTOR BAR
31
90474-90
Уплотнитель резиновый
33
70091-95
WIRING HARNESS IGNITION SWITCH TO CIRCUIT BREAKERS (NOT ILLUSTRATED)
34
71421-90B
LOCK SET FORK & IGNITION W/ KEY
35
14121-94A
DECAL IGNITION SWITCH (HDI ONLY)
