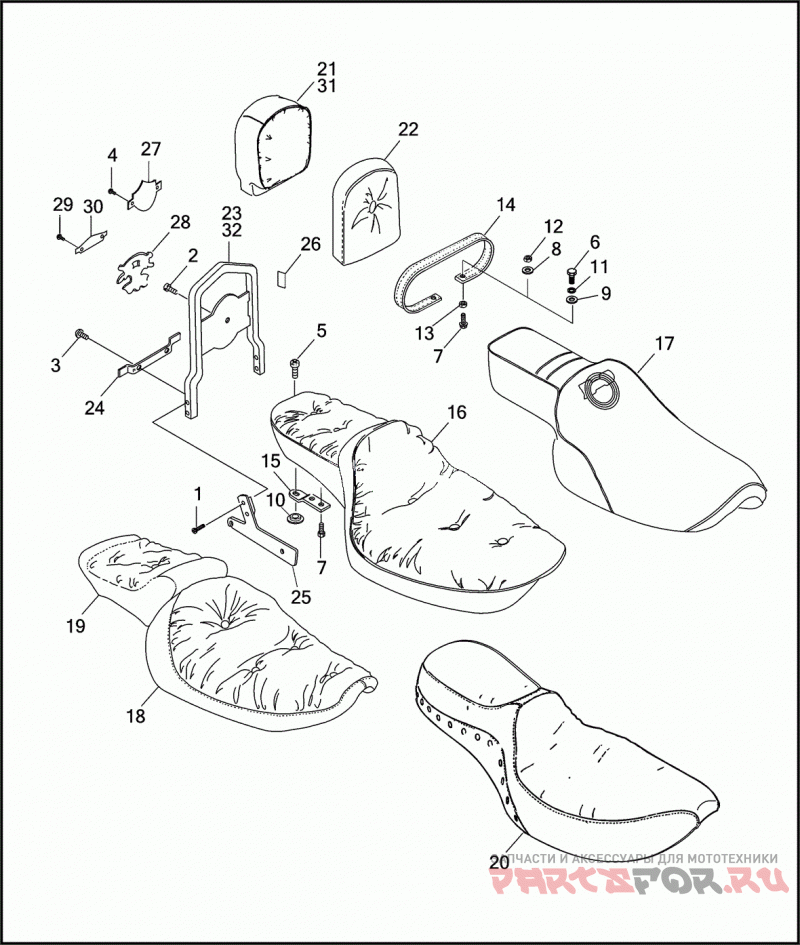

SEATS & SISSY BAR

Harley Davidson FXDS CONV 1GGL DYNA SUPER GLIDE CONVERTIBLE (1995)

Harley Davidson
#oem кодцена
1
919
SCREW 1/4-28 X 3/4 SOCKET BUTTON HD. (GRADE 8)
2
1602
SCREW 1/4-20 X 3/4 FLAT HD. (GRADE 2)
3
2607
SCREW 1/4-20 X 3/4 POZIDRIV PAN HD. (GRADE 2)
4
2711
SCREW NO. 4-40 X 3/8 PAN HD., SELF-TAPPING
5
2739
SCREW 1/4-28 X 1/2 PHILLIPS TRUSS HD., W/LOCKWASHER (CHROME)
6
2818
BOLT 5/16-18 X 1-1/2 HEX HD. (GRADE 5)
7
3574
SCREW 1/4-20 X 3/4 FLANGE
9
6237
WASHER 5/16 X 1-1/8 X 5/64
10
6410
WASHER 1/4 X 9/16 X 1/16 NYLON
11
6702
WASHER 5/16 X 11/16 X 1/16
14
51188-84
PASSENGER STRAP
15
51652-83B
BRACKET SEAT
20
52183-94
Седло
21
52543-94
Спинка
23
52739-83
SISSY BAR KIT W/ 1 & 26
24
52771-82
BRACKET BACKREST
25
52780-90A
SIDEPLATE RIGHT
25
52799-90A
SIDEPLATE LEFT
27
99013-82
MEDALLION HARLEY-DAVIDSON BAR & SHIELD
29
1000
SCREW 1/4-20 X 5/8 PAN HD.
31
52543-94
BACKREST (HDI)
32
52764-90A
SISSY BAR KIT W/ 1 & 26 (HDI)
