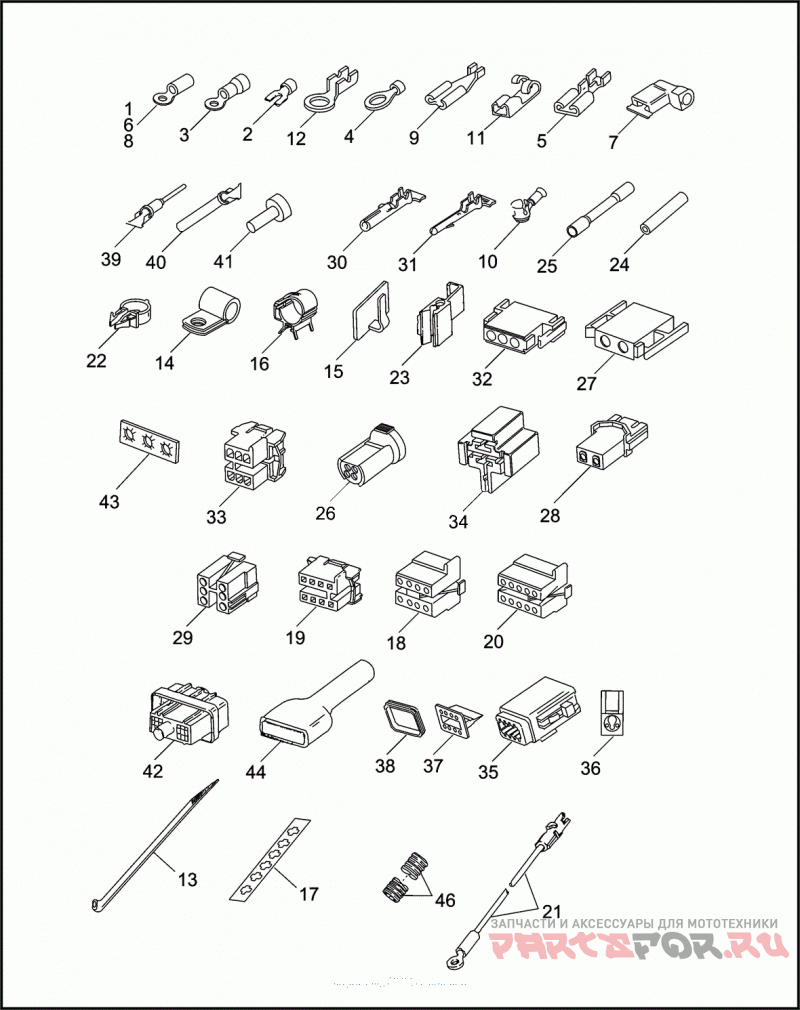

WIRES & TERMINALS

Harley Davidson FLHTP-WND DA95 ELECTRA GLIDE STANDARD POLICE (FRG/WND) (1995)

Harley Davidson
#oem кодцена
1
9860
WIRE TERMINAL ring type | DA95/DF95
2
9861
WIRE TERMINAL slotted tongue | DA95/DF95
3
9863
WIRE TERMINAL ring type | DA95/DF95
3
9809
TRIM RING,PRE-INSULT | DA95/DF95
4
9865
WIRE TERMINAL ring type | DA95/DF95
4
9866
WIRE TERMINAL ring type | DA95/DF95
5
9875
WIRE TERMINAL female spade type | DA95/DF95
6
9892
WIRE TERMINAL ring type | DA95/DF95
7
9898
WIRE TERMINAL female spade type, insulated | DA95/DF95
8
9903
WIRE TERMINAL ring type (N/A) | DA95/DF95
9
9904
WIRE TERMINAL female spade type | DA95/DF95
10
9905
WIRE TERMINAL cap type | DA95/DF95
11
9925
WIRE TERMINAL female flag type | DA95/DF95
11
9938
WIRE TERMINAL female spade type, 1/4 inch slot | DA95/DF95
12
9945
WIRE TERMINAL ring type (u-clamp) | DA95/DF95
13
10006
CABLE STRAP 7.5 inch | DA95/DF95
13
10007
CABLE STRAP 5.5 inch | DA95/DF95
13
10039
CABLE STRAP 14.5 inch | DA95/DF95
13
10065
CABLE STRAP 5.5 inch | DA95/DF95
13
10073
CABLE STRAP | DA95/DF95
14
10077
CLAMP wiring harness | DA95/DF95
14
38712-68
CLAMP wiring harness | DA95/DF95
15
10102
CLIP adhesive, siren speaker wire | DA95/DF95
15
10103
CLIP adhesive, main harness | DA95/DF95
16
10108
RETAINER | DA95/DF95
18
70287-81A
CONNECTOR 8 pin | DA95/DF95
19
70288-81
CONNECTOR 8 socket | DA95/DF95
20
70293-87A
CONNECTOR 10 socket | DA95/DF95
21
70328-84
WIRING fuel sending unit | DA95/DF95
22
70345-84
RETAINER wiring harness | DA95/DF95
23
70576-68
WIRE CONNECTOR | DA95/DF95
24
70581-73
CONNECTOR | DA95/DF95
25
70585-93
CONNECTOR splice 18-22 gauge (red) | DA95/DF95
25
70586-93
CONNECTOR splice 14-16 gauge (blue) | DA95/DF95
25
70587-93
CONNECTOR splice 10-12 gauge (yellow) | DA95/DF95
26
72029-84
PLUG 4 wire | DA95/DF95
27
72034-71
HOUSING double socket | DA95/DF95
28
72035-71
HOUSING double pin | DA95/DF95
29
72037-71
CONNECTOR 6 socket | DA95/DF95
30
72038-71A
TERMINAL single pin | DA95/DF95
31
72039-71A
TERMINAL single socket | DA95/DF95
32
72040-71
CONNECTOR three socket | DA95/DF95
33
72041-71
CONNECTOR six socket | DA95/DF95
34
72046-79
INSULATOR spade terminals | DA95/DF95
35
72118-94BK
PLUG 8-way-rear lights | DA95/DF95
36
72199-94
ATTACHMENT CLIP 2, 3, 4, 6 & 12-way receptacle | DA95/DF95
37
72158-94
SOCKET LOCK 8-way-rear lights | DA95/DF95
38
72172-94
FRONT SEAL 2-way plug | DA95/DF95
38
72173-94
FRONT SEAL 3-way plug | DA95/DF95
38
72174-94
FRONT SEAL 4-way plug | DA95/DF95
38
72176-94
FRONT SEAL 6-way plug | DA95/DF95
38
72178-94
FRONT SEAL 8-way plug | DA95/DF95
38
72179-94
FRONT SEAL 12-way plug | DA95/DF95
39
72190-94
TERMINAL pin | DA95/DF95
40
72191-94
TERMINAL socket | DA95/DF95
41
72195-94
SEAL PIN | DA95/DF95
42
72281-93
CONNECTOR 18 pin (siren amplifier) | DA95/DF95
43
72277-74
CONNECTOR TAB three terminal | DA95/DF95
44
74413-93
BOOT connector (siren amplifier) | DA95/DF95
45
70427-84
DIODE siren (not shown) | DA95/DF95
46
62555-95
INSULATOR 1/2 inch I.D. (nylon) (8 ft. lg.) | DA95/DF95
