  5. FLHTP-WND DA95 ELECTRA GLIDE STANDARD POLICE (FRG/WND) (1995)

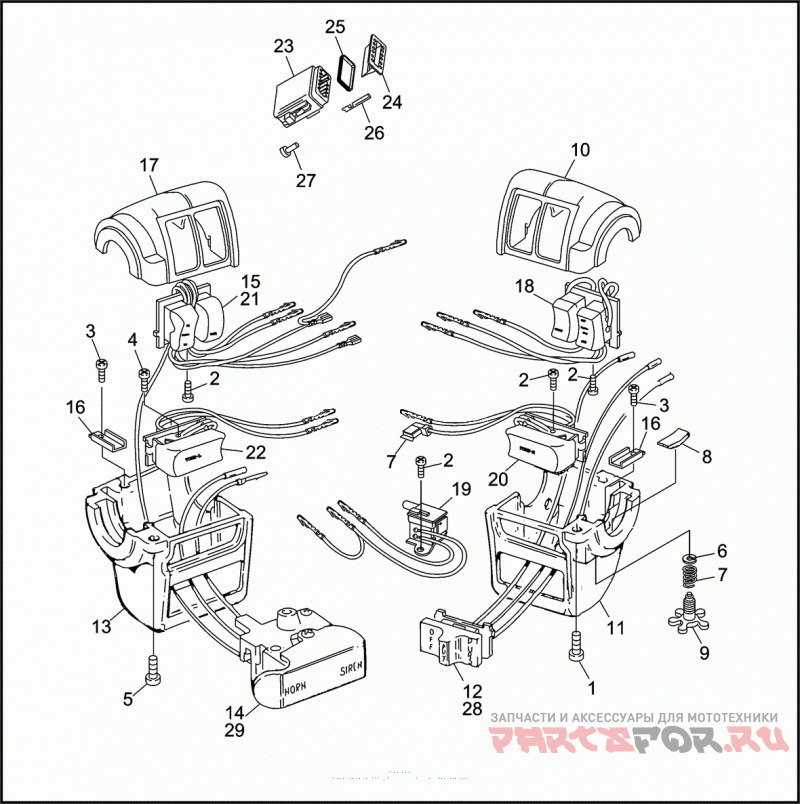

HANDLEBAR SWITCHES

Harley Davidson FLHTP-WND DA95 ELECTRA GLIDE STANDARD POLICE (FRG/WND) (1995)

Harley Davidson
#oem кодцена
1
2508
SCREW No. 10-32 X 1/2 socket hd. | DA95/DF95
2
2907
SCREW M3 X .05 X 8mm cross recess pan hd., self-tapping | DA95/DF95
3
2908
SCREW M3 X .05 X 12mm cross recess pan hd., self-tapping | DA95/DF95
4
2910
SCREW M3 X 1.058 X 8mm cross recess pan hd., self-tapping | DA95/DF95
5
2911
SCREW M3 X .5 X 20mm pan hd. | DA95/DF95
6
11155
RETAINING RING adjusting screw | DA95/DF95
7
56394-74
SPRING adjusting screw | DA95/DF95
8
56396-74A
FRICTION SPRING throttle grip | DA95/DF95
9
56402-83A
ADJUSTING SCREW | DA95/DF95
10
71564-82A
HOUSING upper right | DA95/DF95
11
70355-85
HOUSING lower right | DA95/DF95
13
70358-85
HOUSING lower left | DA95/DF95
14
70359-85
KNOB horn & siren | DA95/DF95
15
70360-85
SWITCH ASSEMBLY siren & dimmer | DA95/DF95
16
71557-93
PLATE switch | DA95/DF95
17
71567-82
HOUSING upper left | DA95/DF95
18
71589-92
SWITCH ASSEMBLY engine stop & start | DA95/DF95
19
71590-92A
STOPLAMP SWITCH | DA95/DF95
20
71591-92
SWITCH ASSEMBLY right directional | DA95/DF95
21
71597-92
SWITCH ASSEMBLY dimmer & horn | DA95/DF95
22
71598-92
SWITCH ASSEMBLY left directional | DA95/DF95
23
72119-94BK
PLUG 12-way socket | DA95/DF95
24
72159-94
SECONDARY LOCK 12-way socket | DA95/DF95
25
72178-94
FRONT SEAL 8-way plug | DA95/DF95
26
72191-94
TERMINAL socket | DA95/DF95
27
72195-94
SEAL PIN | DA95/DF95
28
70357-85
SWITCH ASSEMBLY pursuit | DA95/DF95
29
70361-85
SWITCH ASSEMBLY horn & siren | DA95/DF95
